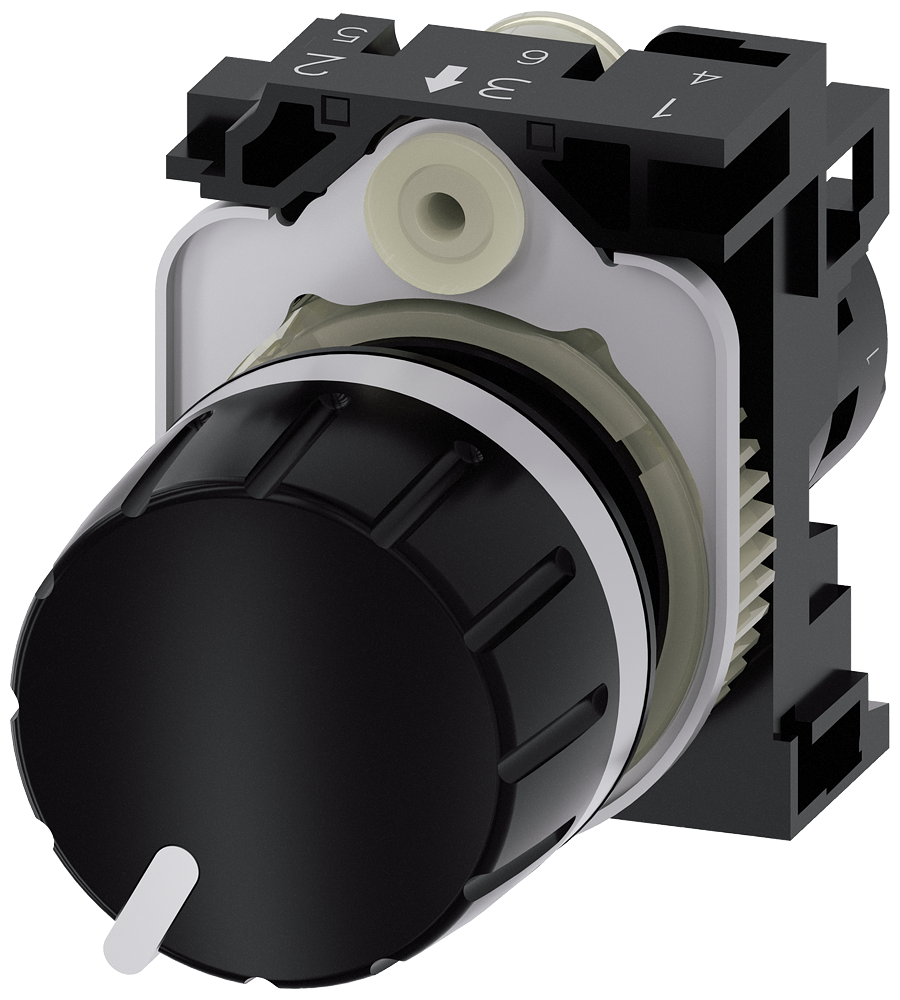

Siemens SIRIUS ACT Potentiometer, compact, 22 mm, round, plastic, black, 10K ohm, with holder, screw terminal
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1200-2PS10-1AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. Potentiometer with integrated resistor, 10 kΩ.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1200-2PS10-1AA0
- EAN / GTIN
- 4011209954045
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Potentiometers
- Design of the product
- Compact unit
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Rotary knob
- Principle of operation of the actuating element
- Infinitely variable adjustment, angle of rotation 280°
- Color of the actuating element
- black
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 30 mm
- Maximum deflection angle [°]
- 280°
- Product component front ring
- No
- Material of the holder
- Plastic
- Consumed active power
- 1 W
- Insulation voltage rated value
- 500 V
- Degree of pollution
- 3
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Protection class IP of the terminal
- IP20, clamping screw tightened
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Mechanical service life (operating cycles) typical
- 25 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 66 g
- Type of electrical connection
- screw terminal
- Type of connectable conductor cross-sections — solid with core end processing
- 2x (0.5 ... 0.75 mm²)
- Type of connectable conductor cross-sections — solid without core end processing
- 2x (1.0 ... 1.5 mm²)
- Type of connectable conductor cross-sections — finely stranded with core end processing
- 2x (0.5 ... 1.5 mm²)
- Type of connectable conductor cross-sections — finely stranded without core end processing
- 2x (1,0 ... 1,5 mm²)
- Type of connectable conductor cross-sections — for AWG cables
- 2x (18 ... 14)
- Tightening torque of the screws in the bracket
- 1 ... 1.2 N·m
- Tightening torque with screw-type terminals
- 0.8 ... 1 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 40 mm
- Installation/ mounting/ dimensions — width
- 30 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 19.4 mm
- Installation width
- 30 mm
- Installation depth
- 46 mm
- Hole diameter
- 22.3 mm
- Power consumption
- 1 W
- Resistance
- 10000 Ohm
- Type of electric connection
- Screw connection
- Number of revolutions
- 280
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 4011209954045
- SAP 1000734694
- Code 8373229
Product Documentation
More from Siemens
Siemens

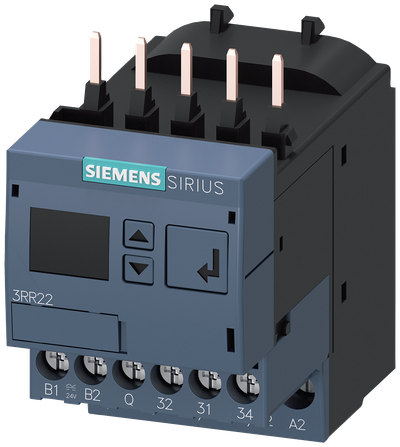

Siemens Current monitoring relay, Standard digital 1.6-16A 3-Phase
3RR2241-1FW30
Siemens

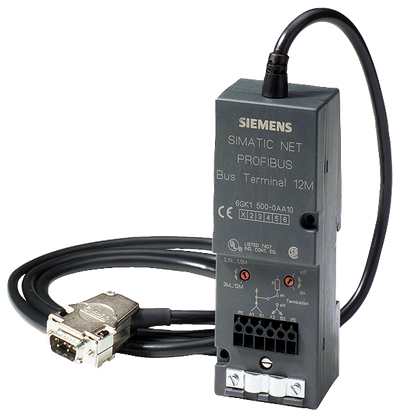

Siemens 6GK1500-0AA10
Siemens
Siemens Screw Fuse- 690V for Cable and Line protection Utilisation Category Gg Size Diii, E33, 16A
5SD8016
Siemens

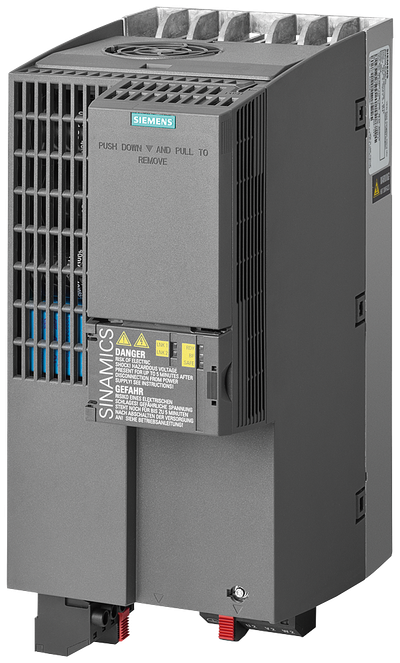

Siemens Sinamics G120C PN 3AC 400V 15kW with integrated filter kl
6SL3210-1KE23-2AF1
Siemens

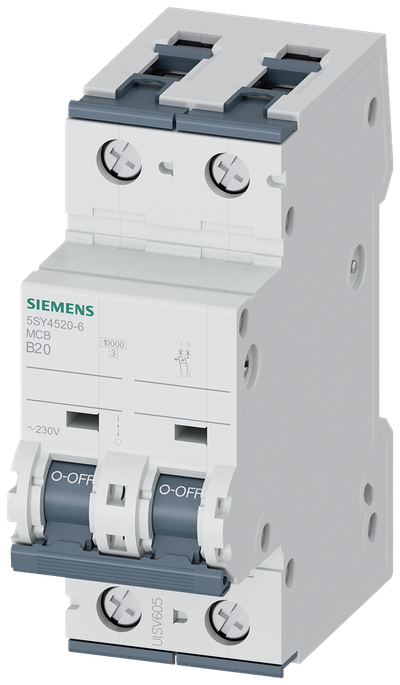

Siemens SENTRON 5SY4520-6 Miniature Circuit Breaker 1+N-Pole B20A 10KA
Siemens

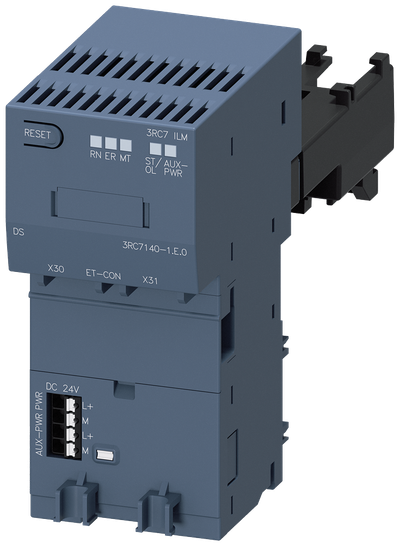

Siemens Inteligent Linkmodul(ILM)for direct-on-line start, 0,4-4AMP
