Siemens 3SU1401-1BH30-1AA0 SIRIUS ACT LED module 24-240 V AC/DC yellow screw

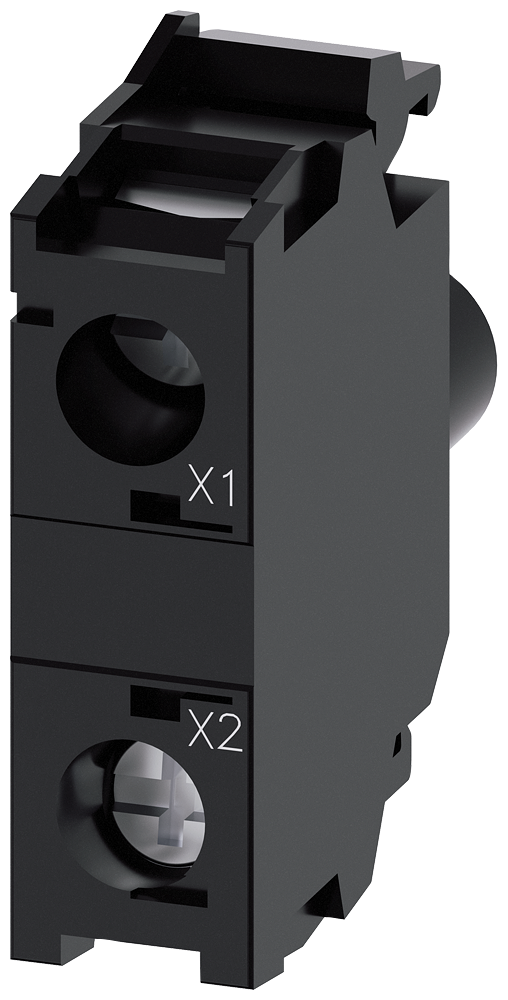

Siemens 3SU1401-1BH30-1AA0 SIRIUS ACT LED module with integrated yellow LED, 24-240 V AC/DC supply and screw-terminal connections, for front-plate mounting. Part of the SIRIUS ACT 22 mm command and signalling device family for panel-mount pushbuttons, indicator lamps and emergency-stop actuators. Terminal-side IP20 with enclosure-side IP40 protection.

Manufacturer part number (MPN)

3SU1401-1BH30-1AA0

EAN / GTIN

4011209938755

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

LED module

Product type designation

3SU1

Product component — diode

Yes

Product component — lamp transformer

No

Product component — light source

Yes

Product component — series resistor

No

Insulation voltage rated value

320 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Type of voltage of the operating voltage — for actuation

AC/DC

Surge voltage resistance rated value

4 kV

Consumed current maximum

20 mA

Protection class IP — of the enclosure

IP40

Protection class IP — of the terminal

IP20

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating period typical

100 000 h

Reference code according to IEC 81346-2

P

General technical data — Net Weight

10.5 g

At AC — at 50 Hz rated value

24 ... 240 V

At AC — at 60 Hz rated value

24 ... 240 V

At AC — at DC rated value

24 ... 240 V

Relative positive tolerance of the operating voltage

20 %

Relative negative tolerance of the operating voltage

20 %

Inrush current maximum

3 A

Type of electrical connection

screw terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Connectable conductor cross-section finely stranded with core end processing

0.5 ... 1.5 mm²

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Type of light source

LED

Color of the light source

yellow

Light intensity

900 ... 1 400 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

33.2 mm

Installation/ mounting/ dimensions — width

9.8 mm

Installation/ mounting/ dimensions — depth

29.4 mm

Lamp holder

None

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

Yellow

Lamp type

LED

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

24–240 V

Rated voltage Ue at AC 60 Hz

24–240 V

Rated voltage Ue at DC

24–240 V

Voltage type for actuating

AC/DC

Country of origin

Germany

HS Code

8531.80
