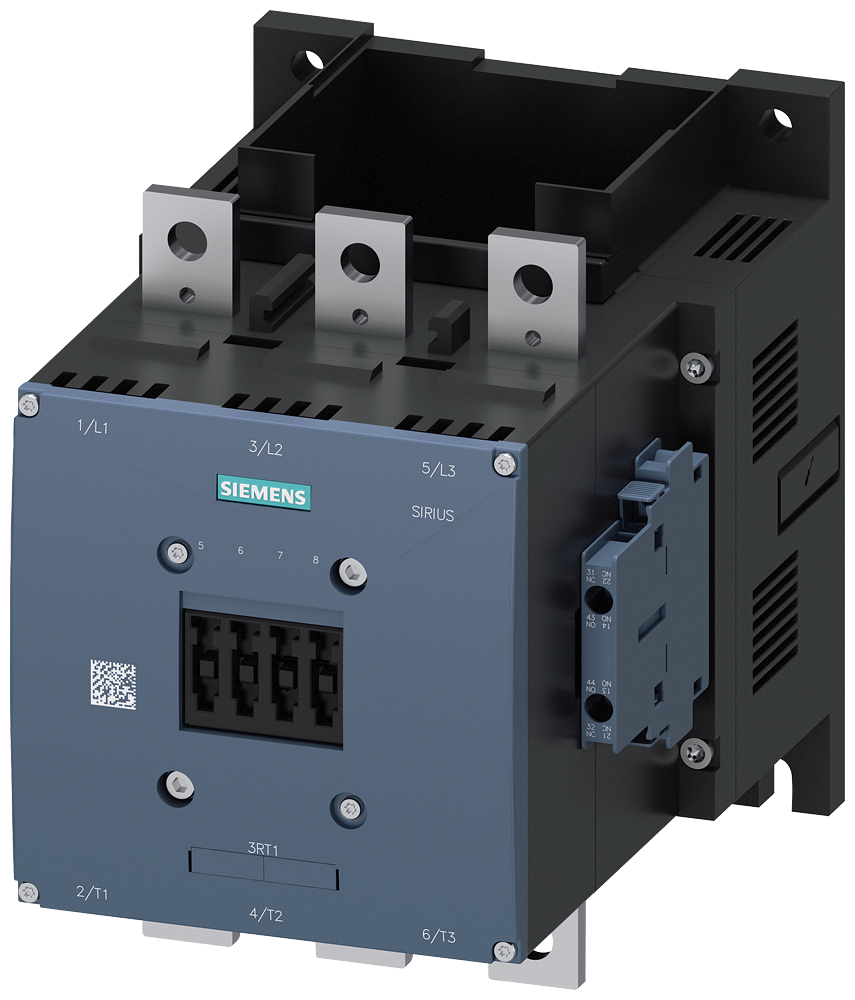

Siemens S12 contactor, 690A/AC-1 at 40 degrees 3RT1476-6LA06
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1476-6LA06 S12 contactor, 690A/AC-1 at 40 degrees.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1476-6LA06
- EAN / GTIN
- 4011209510180
- HS code
- 8536.90
- Sales unit
- pcs
- Utilization category
- AC-1
- Rated current
- 690 A
- Width
- 160 mm
- Height
- 214 mm
- Depth
- 225 mm
- Rated operation power at AC-3, 400 V
- 90 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 170 A
- Rated operation current Ie at AC-1, 400 V
- 690 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510180
- SAP 1000044227
- Code 8526868
Product Documentation
