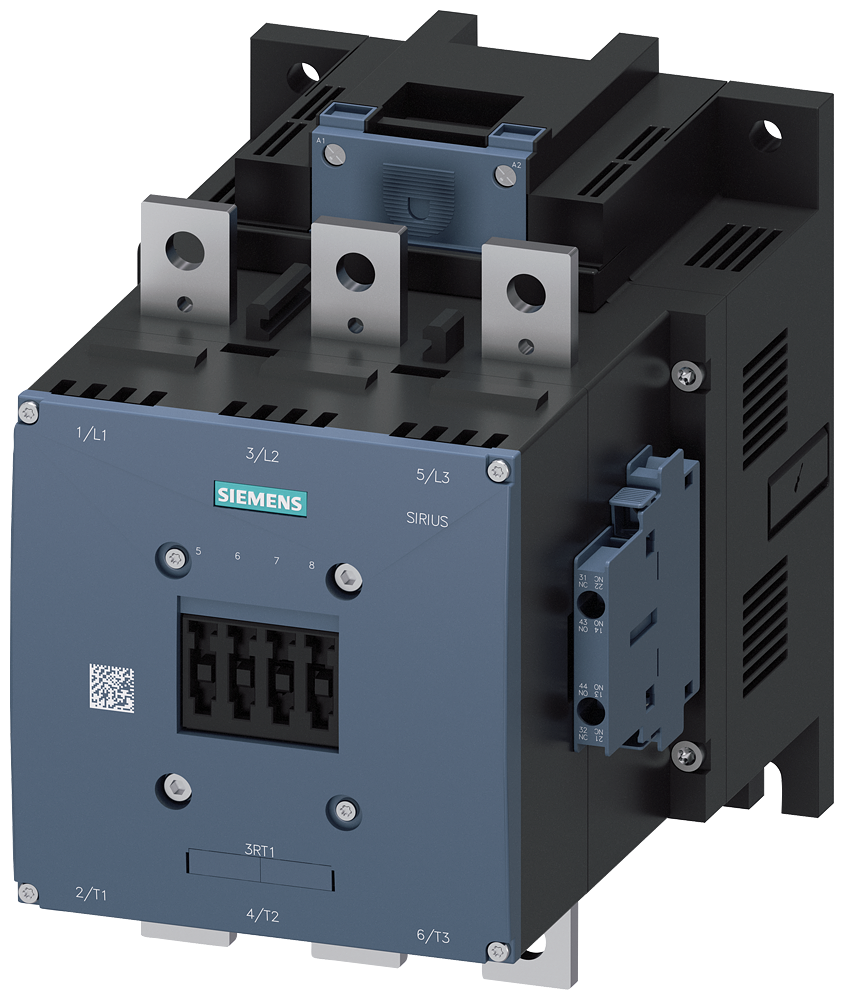

Siemens S12 contactor, 690A/AC-1 coil voltage 220-240V 2NO+2NC 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1476-6AP36 S12 contactor, 690A/AC-1 coil voltage 220-240V 2NO+2NC 3-POLE.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1476-6AP36
- EAN / GTIN
- 4011209510128
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 220-240 V
- Number of poles
- 3P
- Contact configuration
- 2 NO + 2 NC
- Width
- 160 mm
- Height
- 214 mm
- Depth
- 225 mm
- Rated operation power at AC-3, 400 V
- 90 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 170 A
- Rated operation current Ie at AC-1, 400 V
- 690 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510128
- SAP 1000321478
- Code 8809058
Product Documentation
More from Siemens
Siemens
Siemens 3VA11, 55KA, 3-Pole, TM240, IN=32A,IR=22,4A 3VA1132-5EF32-0AA0
Siemens
Siemens SCALANCE XB205-3; 5 x 10/100 Mbit/s RJ45 porter + 3 SC-port multimode
6GK5205-3BD00-2AB2
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE18-0AB0
Siemens
Siemens SITRANS pressure transmitter 7MF1572-1FA10
Siemens
Siemens 6XV1850-2JN10
Siemens
Siemens SIRIUS Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth
3SU1051-6AA70-0AA0
Siemens
Siemens 3VA14, 3P, 500A, TM120M, 70KA, Bolt connection, kortslutningstrigger 2500A-5000A
3VA1450-6MH32-0AA0
Siemens

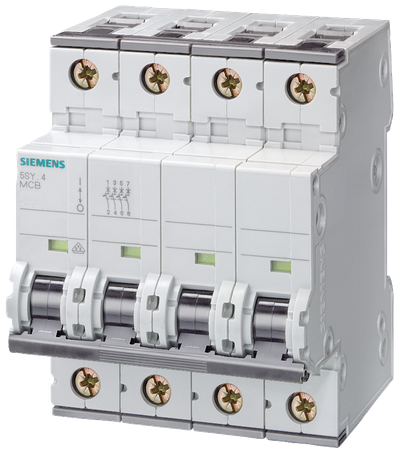

Siemens SENTRON 5SY7410-6 Miniature Circuit Breaker 4-Pole B10A 15KA
