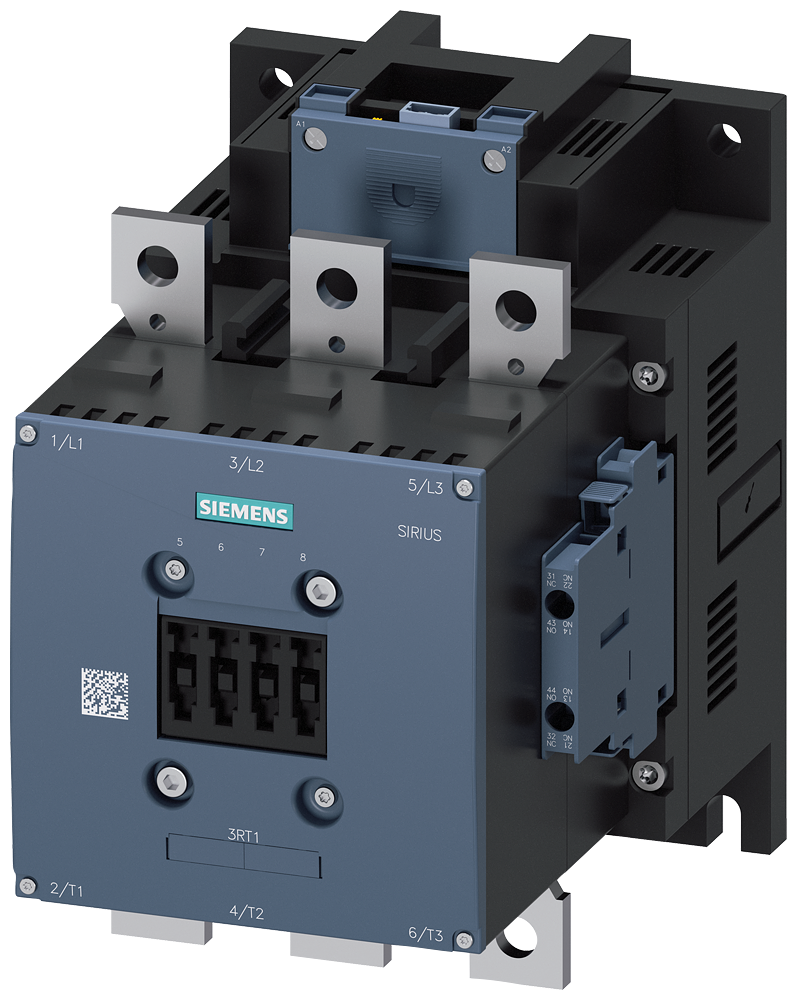

Siemens S10 contactor, 400A/AC-1 at 40 degrees 3RT1466-6NP36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1466-6NP36 S10 contactor, 400A/AC-1 at 40 degrees.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1466-6NP36
- EAN / GTIN
- 4011209510012
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 400 A
- Utilization category
- AC-1
- Width
- 145 mm
- Height
- 210 mm
- Depth
- 202 mm
- Rated operation power at AC-3, 400 V
- 75 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 138 A
- Rated operation current Ie at AC-1, 400 V
- 400 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 125 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510012
- SAP 1000526640
- Code 8878243
Product Documentation
More from Siemens
Siemens
Siemens Sinamics G120D Power Module PM250D with Built-in Filter Kl 6SL3525-0PE23-0AA1
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 650 mm, W: 1050 mm, D: 210 mm, RAL 9016
8GK1132-2KA42
Siemens
Siemens S10 contactor, 400A/AC-1 at 40 degrees 3RT1466-6PP35
Siemens
Siemens SENTRON 3VA9404-0QA00 — Ring-lug terminal, 3VA23 / 3VA24
Siemens
Siemens Screwdriver insert Torx T30 L = 200 mm, 1 pack = 2 units
8PQ9400-0BA10
Siemens

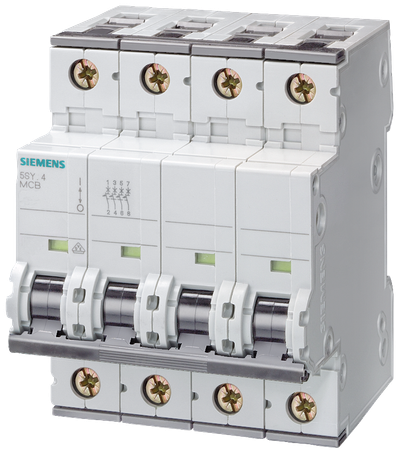

Siemens SENTRON 5SY7408-7 Miniature Circuit Breaker 4-Pole C8A 15KA
