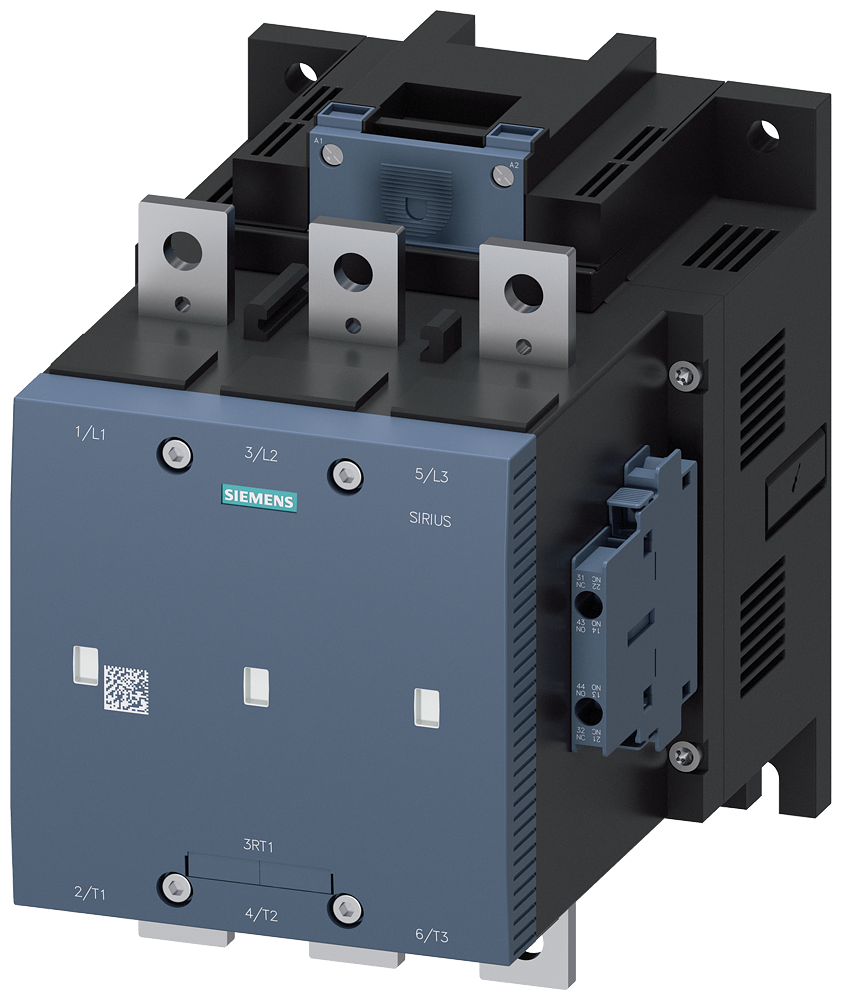

Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6AF36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1275-6AF36 S12 Vacuum Contactor, 200KW/400.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1275-6AF36
- EAN / GTIN
- 4011209509313
- Sales unit
- pcs
- Power
- 200 kW
- Width
- 160 mm
- Height
- 217 mm
- Depth
- 225 mm
- Rated operation power at AC-3, 400 V
- 200 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 400 A
- Rated operation current Ie at AC-1, 400 V
- 610 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 350 A
- Rated operation power at AC-4, 400 V
- 200 kW
- Rated operation power NEMA
- 300 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209509313
- SAP 1200326550
- Code 82308170
Product Documentation
More from Siemens
Siemens
Siemens Load-break switch 80A,size 2,4-Pole,operation side left-hand,box terminal for Cu cable
3KD28442NE100
Siemens
Siemens Mechanical accessorysdeler 8PQ3000-0BA43
Siemens
Siemens Load-break switch 100A,size 2,3-Pole,operation side left-hand,box terminal for Cu cable
3KD3034-2NE10-0
Siemens
Siemens COVER FOR 25A
5TT5910-6
Siemens
Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6AB36
Siemens

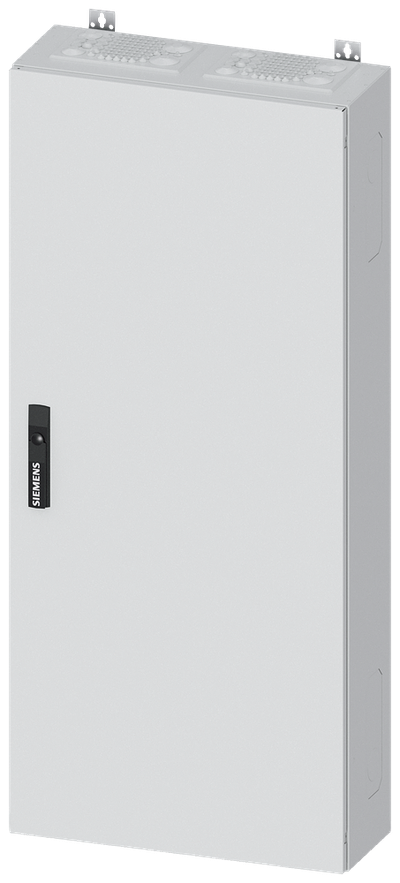

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1250 mm, W: 550 mm, D: 210 mm, RAL 9016
8GK1133-6KA22
Siemens

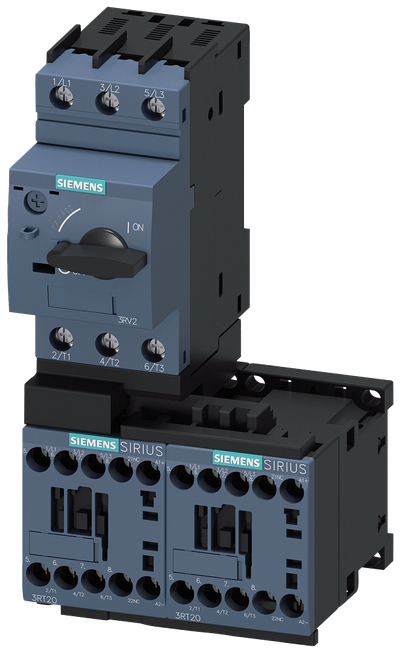

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.22...0.32 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-0DA15-2BB4
Siemens

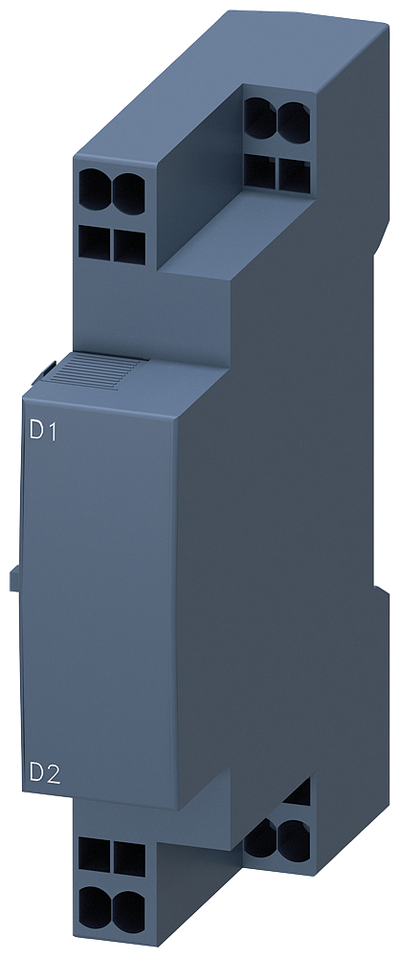

Siemens 3RV2902-2AV0 Auxiliary Trip Unit AC 400 V, Spring-Cage Terminals
