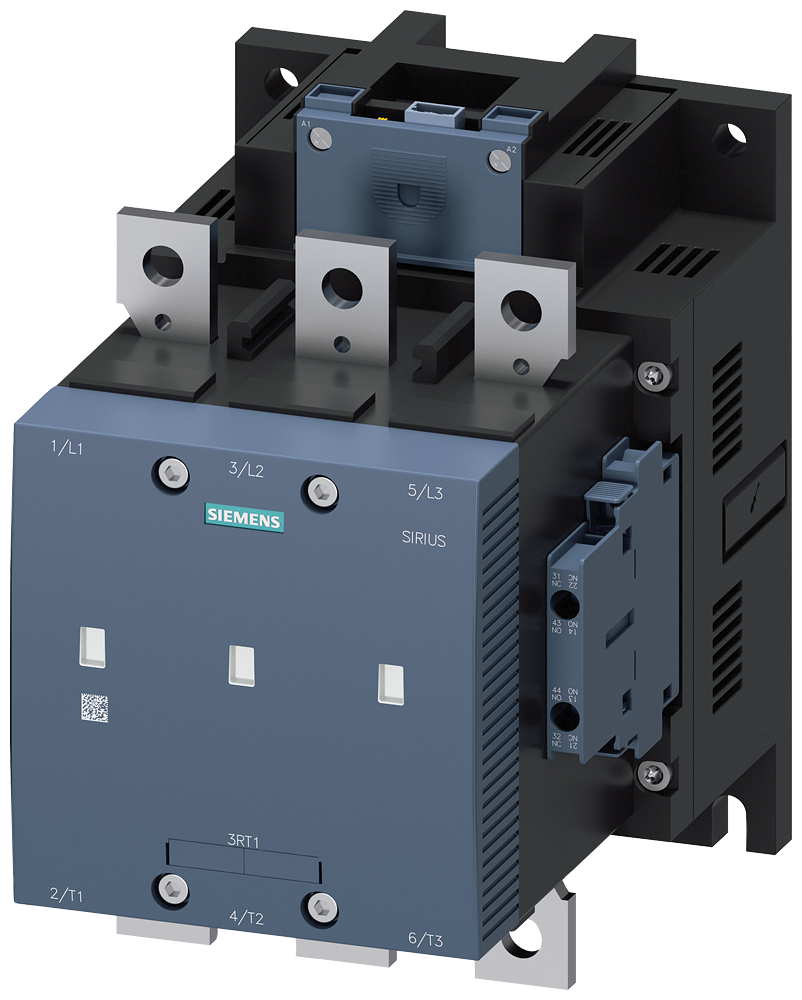

Siemens S10 Vacuum contactor, 160KW/400 3RT1266-6NP36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1266-6NP36 S10 Vacuum Contactor, 160KW/400.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1266-6NP36
- EAN / GTIN
- 4011209509221
- Sales unit
- pcs
- Power
- 160 kW
- Width
- 145 mm
- Height
- 210 mm
- Depth
- 206 mm
- Rated operation power at AC-3, 400 V
- 160 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 300 A
- Rated operation current Ie at AC-1, 400 V
- 330 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 280 A
- Rated operation power at AC-4, 400 V
- 160 kW
- Rated operation power NEMA
- 250 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209509221
- SAP 1000526636
- Code 81004398
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9214-0QE00 — Rear connection terminal (flat bar), 3VA12
Siemens

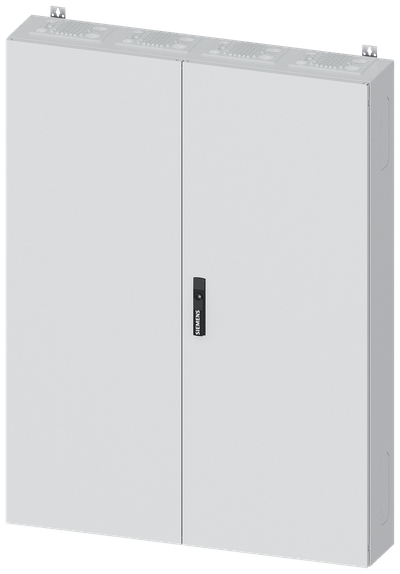

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1400 mm, W: 1050 mm, D: 210 mm, RAL 9016
8GK1133-7KA42
Siemens

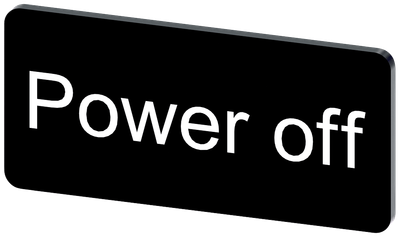

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AC16-0DF0
Siemens

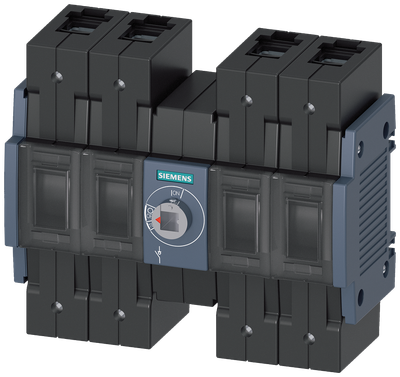

Siemens SENTRON 3KD Switch-Disconnector 3KD3440-2NE20-0, 160 A, 4-Pole, Front Operated Centre, with Rotary Handle
Siemens

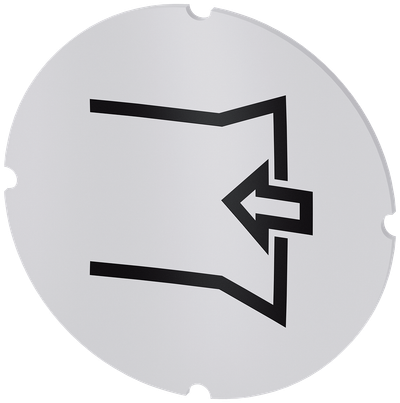

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0RR0
Siemens

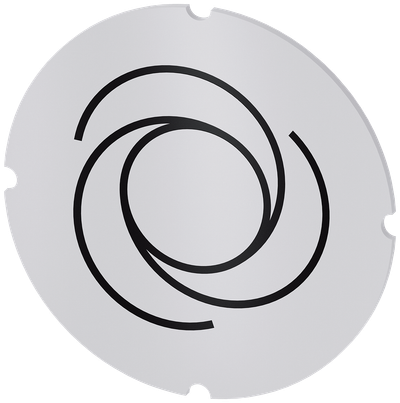

Siemens SIRIUS ACT 22 mm command and signalling device 3SU19000AB710RQ0
Siemens

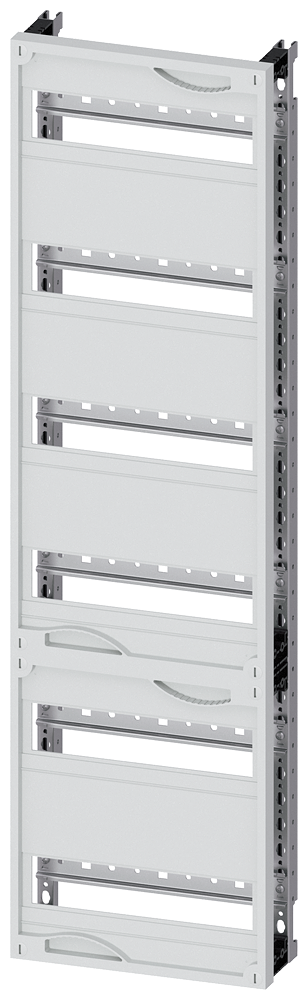

Siemens Alpha 160/400 Din, Quick Mounting Set for Installation mount 8GK4051-6KK11
Siemens

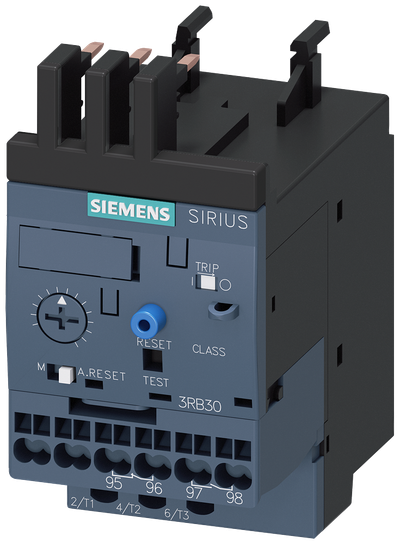

Siemens SIRIUS 3RB3 Electronic Overload Relay 0.1...0.4 A, Size S00, Class 20E, Main Spring-type, Aux Spring-type
