Siemens SINAMICS V20, 1AC 230V 0,12kW UNFILTERED
Pricing
Request a quote
We reply within 24 hours
Product Description

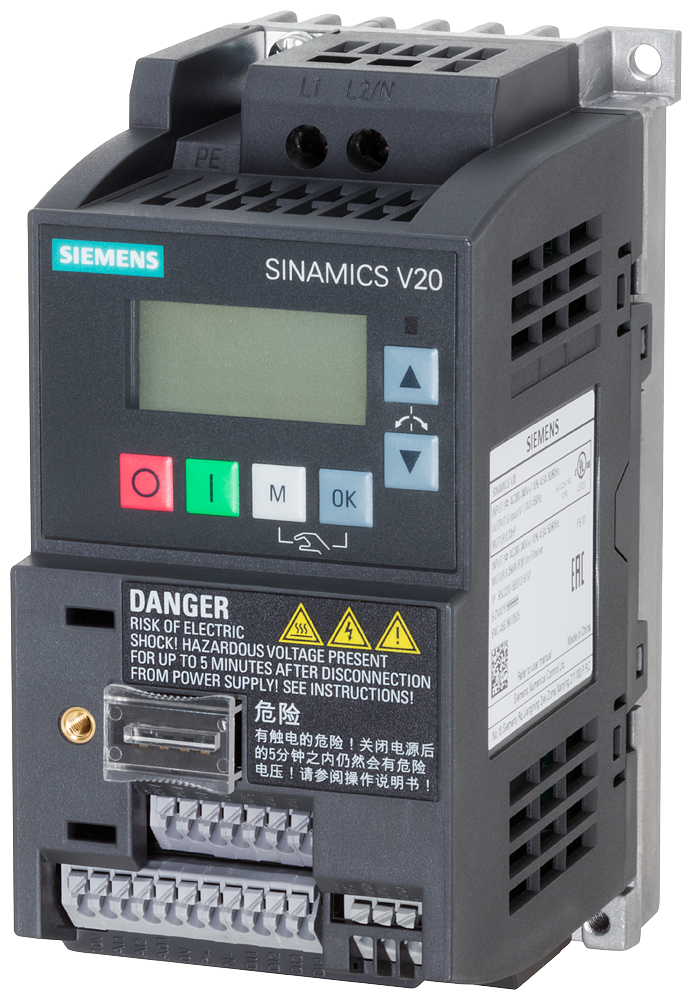

Siemens 6SL3210-5BB11-2UV1 SINAMICS V20, 1AC 230V 0,12kW UNFILTERED.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-5BB11-2UV1
- EAN / GTIN
- 4042948669785
- Sales unit
- pcs
- Voltage
- 230 V
- Power
- 0.12 kW
- Width
- 68 mm
- Height
- 142 mm
- Depth
- 107.8 mm
- With control element
- No
- Number of digital inputs
- 4
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 1
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 0.12 kW
- Max. output at quadratic load at rated output voltage
- 0.12 kW
- Relative symmetric net voltage tolerance
- -15 %
- Relative symmetric net frequency tolerance
- -5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 0.9 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948669785
- SAP 1000754030
- Code 8502459
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS ACT Yellow Illuminated Pushbutton 22 mm 1 NO 230 V AC
3SU1106-0AB30-1BA0
Siemens
Siemens Accessory for 3KD ST 1, N/PE terminal with fast jumper link, box terminal
3KD9106-8
Siemens
Siemens PAC1200 DIN Rail for 3 Sensors
7KT1233
Siemens
Siemens Current transformer 200/1A, 5VA K1,0 4NC5122-0CE21
Siemens

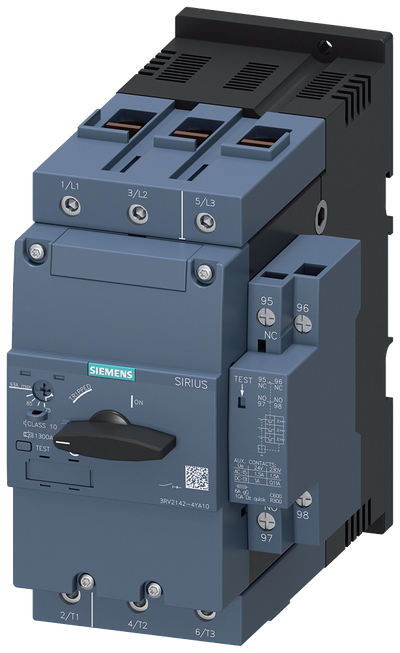

Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2142-4YA10
Siemens

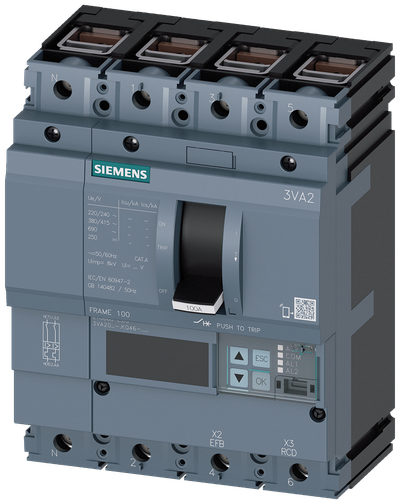

Siemens MCCB_3VA20_4P_55KA_ETU860_,LSIG,IN=25A,IR=10A-25A,ISD=0,6-10XIN,II=1,5-12XIN,IG=0,2-1XIN,terminal Cu
3VA2025-5KQ46-0AA0
Siemens

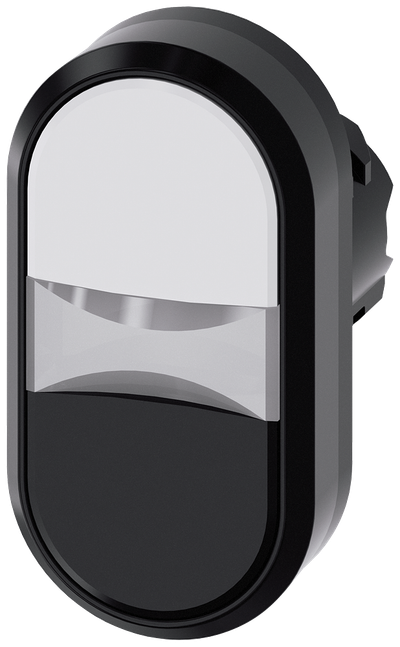

Siemens SIRIUS Twin pushbutton, 22 mm, round, plastic, white, black, pushbuttons, flat
3SU1000-3AB61-0AA0
Siemens

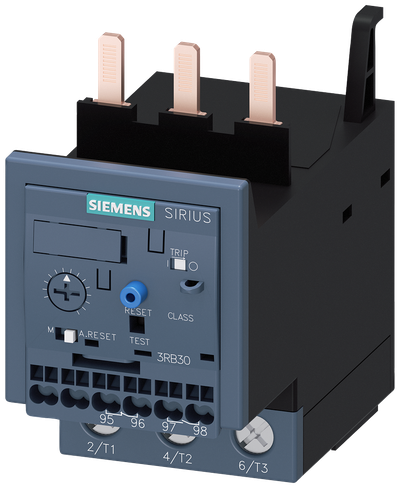

Siemens SIRIUS 3RB3 Electronic Overload Relay 12.5...50 A, Size S2, Class 20E, Main Screw, Aux Spring-type
3RB3036-2UD0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6SL3210-5BB11-2UV1?
- 6SL3210-5BB11-2UV1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6SL3210-5BB11-2UV1.
- What is the HS code for 6SL3210-5BB11-2UV1?
- The customs tariff (HS) code for 6SL3210-5BB11-2UV1 is 8504.40.
- Who manufactures 6SL3210-5BB11-2UV1?
- 6SL3210-5BB11-2UV1 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 6SL3210-5BB11-2UV1?
- Yes — the 6SL3210-5BB11-2UV1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6SL3210-5BB11-2UV1?
- The minimum order quantity is 1.
- Is 6SL3210-5BB11-2UV1 available?
- Yes — 6SL3210-5BB11-2UV1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
