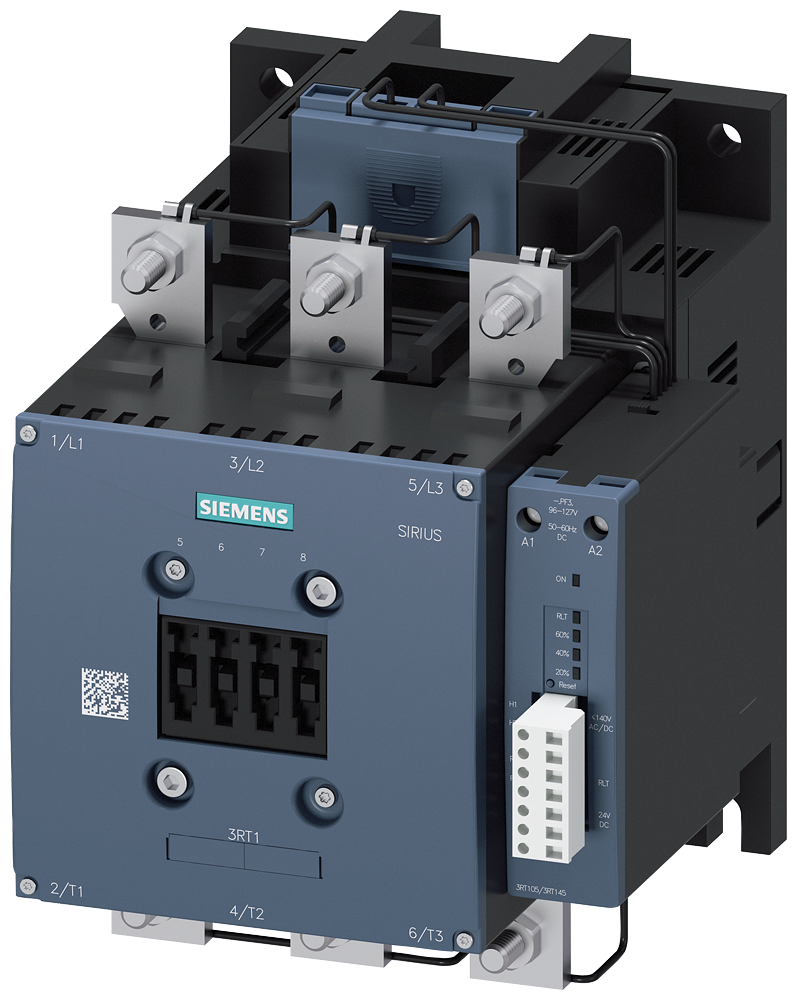

Siemens S10 contactor, 110KW/400V/AC-3 3RT1064-6PF35
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1064-6PF35 S10 contactor, 110KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1064-6PF35
- EAN / GTIN
- 4011209510784
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 110 kW
- Utilization category
- AC-3
- Width
- 165 mm
- Height
- 210 mm
- Depth
- 202 mm
- Rated operation power at AC-3, 400 V
- 110 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 225 A
- Rated operation current Ie at AC-1, 400 V
- 275 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 195 A
- Rated operation power at AC-4, 400 V
- 110 kW
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510784
- SAP 1200326367
- Code 82307583
Product Documentation
