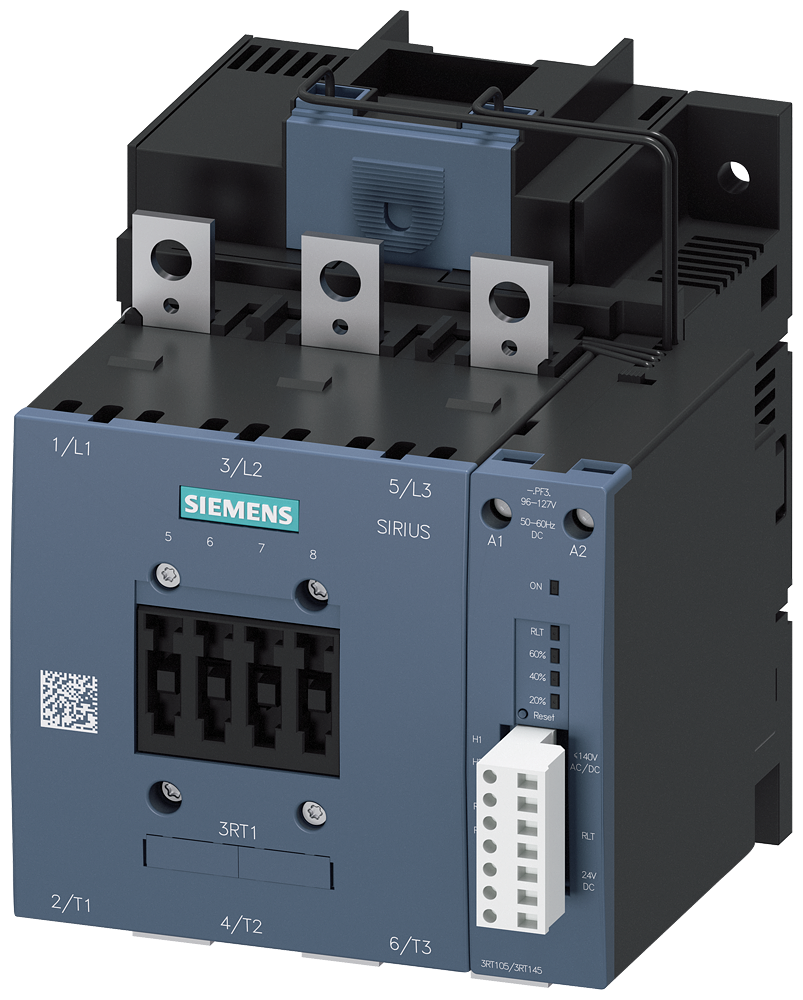

Siemens S6 contactor, 90KW/400V/AC-3 3RT1056-6PP35
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1056-6PP35 S6 contactor, 90KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1056-6PP35
- EAN / GTIN
- 4011209510739
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 90 kW
- Utilization category
- AC-3
- Width
- 140 mm
- Height
- 172 mm
- Depth
- 170 mm
- Rated operation power at AC-3, 400 V
- 90 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 185 A
- Rated operation current Ie at AC-1, 400 V
- 215 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 160 A
- Rated operation power at AC-4, 400 V
- 90 kW
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209510739
- SAP 1000029019
- Code 8257635
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400/630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) 8GK9531-7KK20
Siemens
Siemens SIRIUS 3RP25 Time relay -Electric 3RP2540-1BB30
Siemens
Siemens 6AV6671-1CB00-0AX2
Siemens
Siemens SENTRON 3VA9264-0JC13 — Cu/Al box terminal, 4-Pole, 50–240 mm², 3VA20 / 3VA21 / 3VA22
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2016-1JB41
Siemens

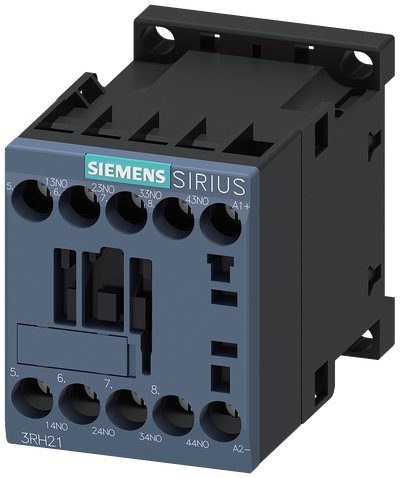

Siemens Relay 4NO,24V DC with diode, S00
3RH2140-1JB40
Siemens

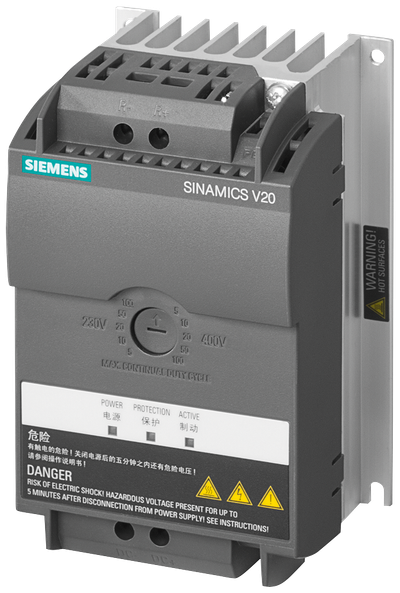

Siemens Sinamics V20 Bremsemodul 3AC380V-480V / 1AC200V-240V Duty Cycle 5% for 100%
6SL3201-2AD20-8VA0
Siemens

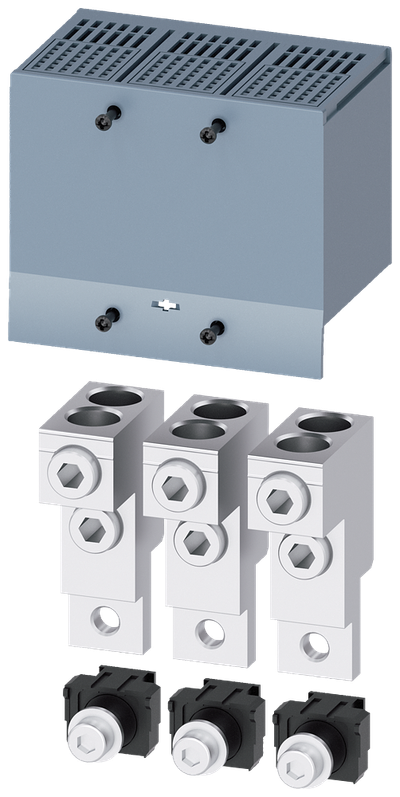

Siemens SENTRON 3VA9213-0JJ22 — Cu/Al box terminal set (2-Conductor), 2×25–150 mm², 3VA12
