Siemens

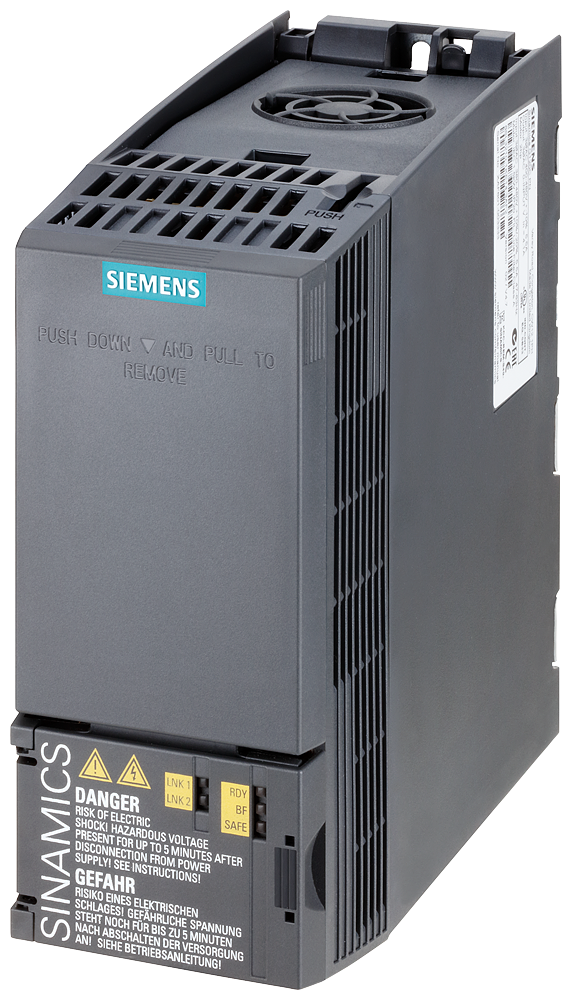

Siemens SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz 6SL3210-1KE14-3AF2
Part number6SL3210-1KE14-3AF2EAN / GTIN4042948668825HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE14-3AF2 SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE14-3AF2
- EAN / GTIN
- 4042948668825
- Sales unit
- pcs
- Width
- 73 mm
- Height
- 173 mm
- Depth
- 160 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 1.1 kW
- Max. output at quadratic load at rated output voltage
- 1.5 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- Yes
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 4.3 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948668825
- SAP 1000732547
- Code 8360798
Product Documentation
Document preview: Siemens 6SL3210-1KE14-3AF2 — OEM Datasheet
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7233-4HF50-0XB0
Siemens
Siemens SIMATIC S7 automation module 6ES7522-1BH01-0AB0
Siemens

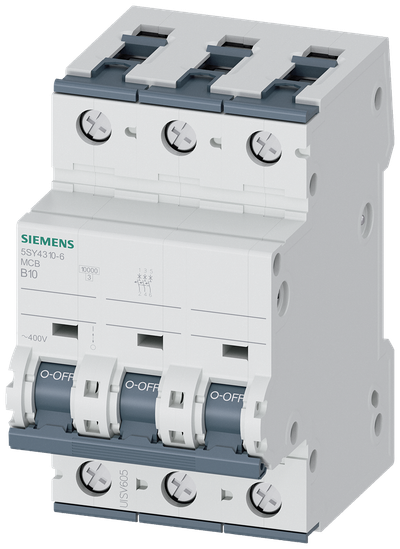

Siemens SENTRON 5SY4310-6 Miniature Circuit Breaker 3-Pole B10A 10KA
Siemens

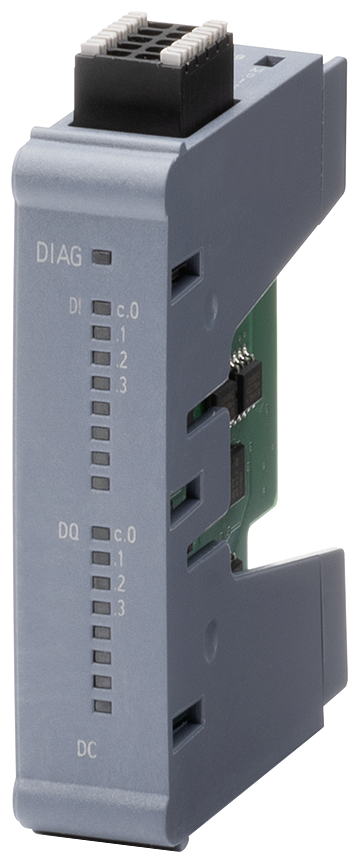

Siemens SIMATIC S7 automation module 6ES7232-4HD50-0XB0
Siemens

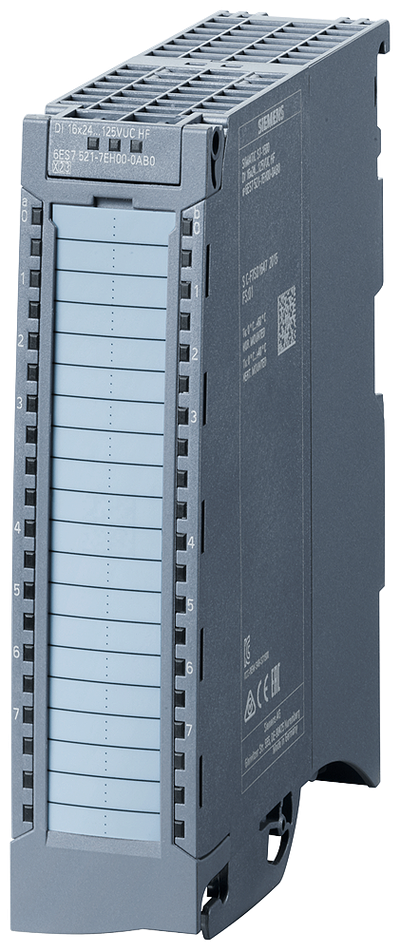

Siemens SIMATIC S7 automation module 6ES7521-7EH00-0AB0
Siemens

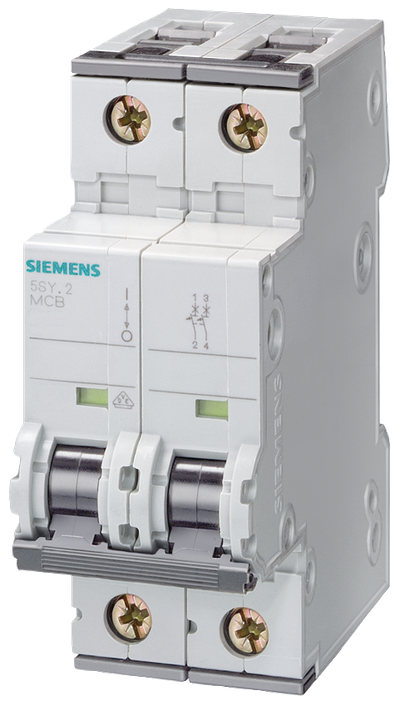

Siemens SENTRON 5SY8208-7 Miniature Circuit Breaker 2-Pole C8A 25KA
Siemens

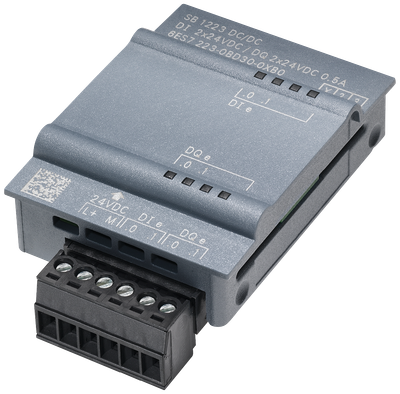

Siemens SIMATIC S7 automation module 6ES7221-3BD30-0XB0
