Siemens Contactor, AC3: 55KW/400V, 1NO+1NC, 83-155V AC/DC, 3-Pole, 3NO
Pricing
Request a quote
We reply within 24 hours
Product Description

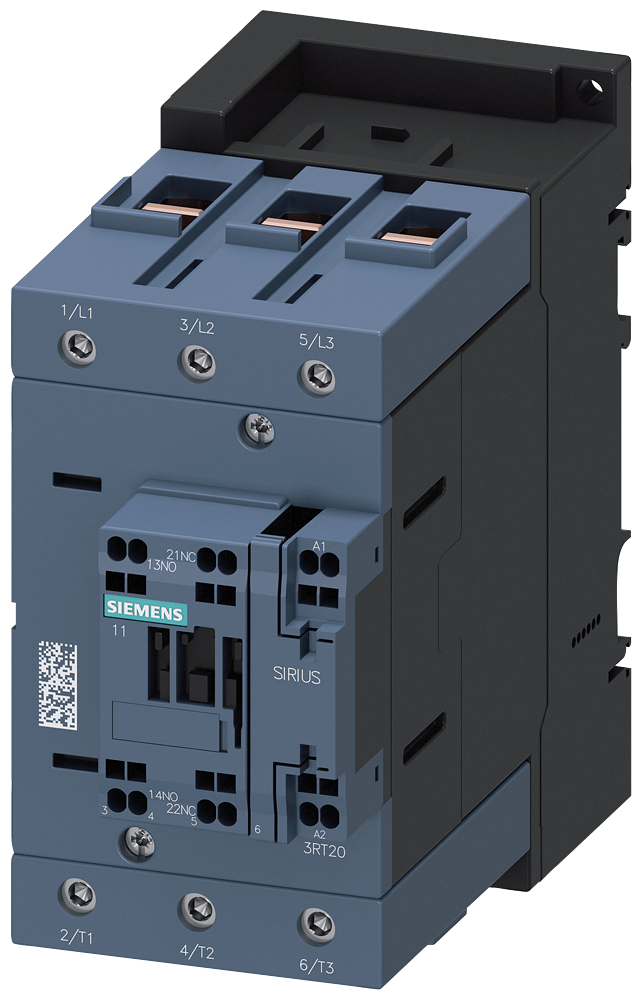

Siemens 3RT2047-3NF30 Contactor, AC3: 55kW/400V, 1NO+1NC, 83-155V AC/DC, 3-pole, 3NO.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2047-3NF30
- EAN / GTIN
- 4047621024998
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 55 kW
- Number of poles
- 3P
- Contact configuration
- 1 NO + 1 NC
- Width
- 70 mm
- Height
- 140 mm
- Depth
- 198 mm
- Rated operation power at AC-3, 400 V
- 55 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 110 A
- Rated operation current Ie at AC-1, 400 V
- 130 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 97 A
- Rated operation power at AC-4, 400 V
- 55 kW
- Rated operation power NEMA
- 55.162 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621024998
- SAP 1200070207
- Code 81912533
Product Documentation
