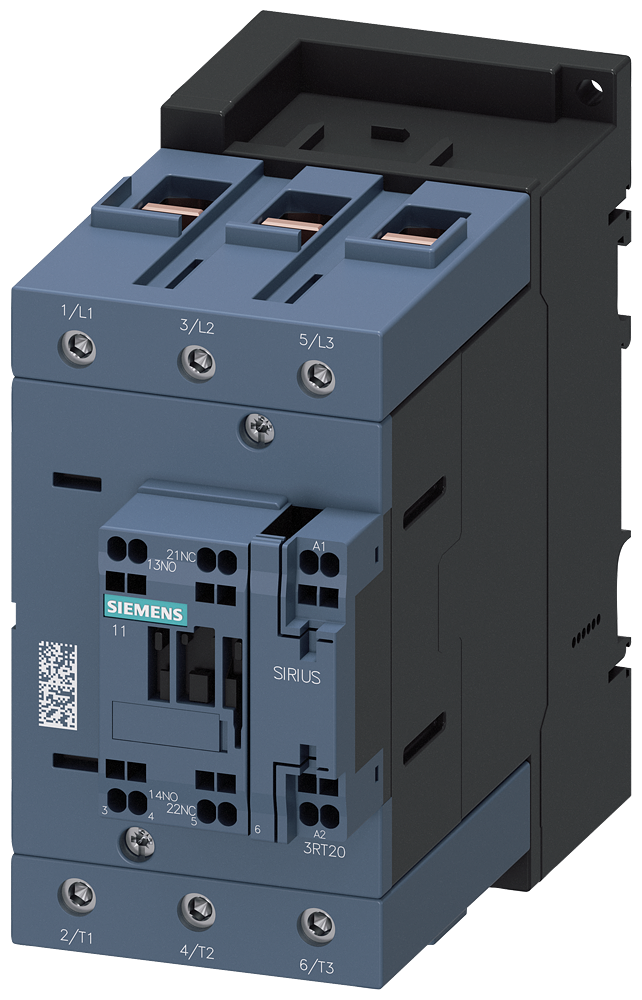

Siemens Contactor, AC3: 45KW/400V, 1NO+1NC, 175-280VAC/DC, 3-Pole, 3NO 3RT2046-3NP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2046-3NP30 Contactor, AC3: 45kW/400V, 1NO+1NC, 175-280VAC/DC, 3-pole, 3NO.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2046-3NP30
- EAN / GTIN
- 4047621024974
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 45 kW
- Number of poles
- 3P
- Contact configuration
- 1 NO + 1 NC
- Width
- 70 mm
- Height
- 140 mm
- Depth
- 152 mm
- Rated operation power at AC-3, 400 V
- 45 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 95 A
- Rated operation current Ie at AC-1, 400 V
- 130 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 80 A
- Rated operation power at AC-4, 400 V
- 45 kW
- Rated operation power NEMA
- 55.162 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621024974
- SAP 1000801659
- Code 81643197
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Illuminated Pushbutton, Red, 22 mm, 1 NC, 230 V AC
3SU1106-0AB20-3CA0
Siemens
Siemens Compartment door 3VA12 (250 A), fixed-mounted, RCD: with, H: 150 mm W: 600 mm
8PQ2015-6BA35
Siemens
Siemens SENTRON 3VA9221-0WJ30 — Insulation backplate, 3-Pole, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens MCCB_3VA22_3P_55KA_ETU850,LSI,IN=250A,IR=100A-250A,ISD=0,6-10XIN,II=1,5-10XIN,B
3VA2225-5KP32-0AA0
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 1250 mm, W: 550 mm, D: 210 mm, RAL 9016
8GK1123-6KA22
Siemens
Siemens G120C EMC-termineringskit FS-B
6SL3266-1EB00-0KA0
Siemens

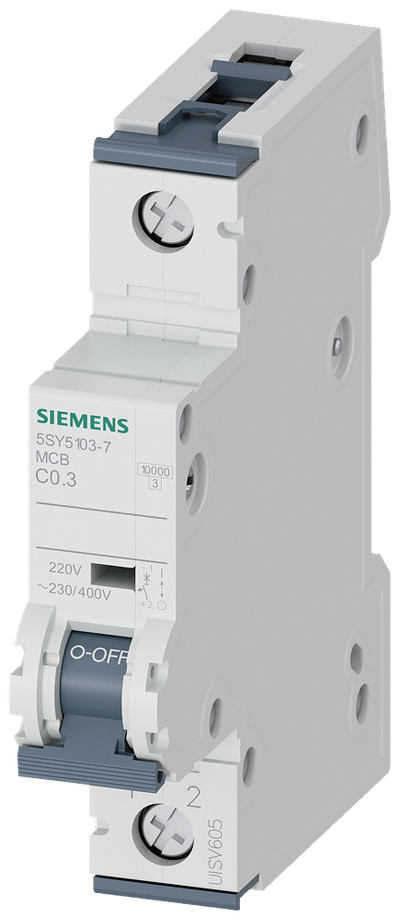

Siemens SENTRON 5SY5103-7 Miniature Circuit Breaker 1-Pole C3A 10KA
Siemens

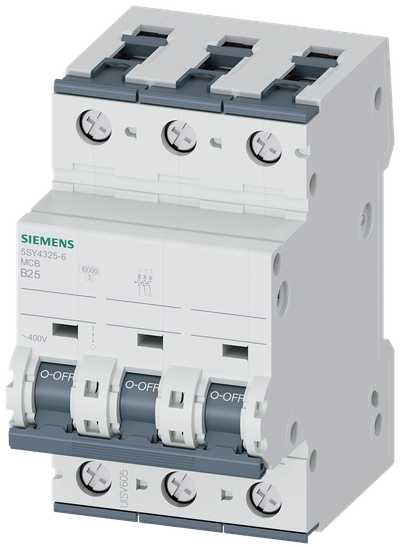

Siemens SENTRON 5SY4325-6 Miniature Circuit Breaker 3-Pole B25A 10KA
