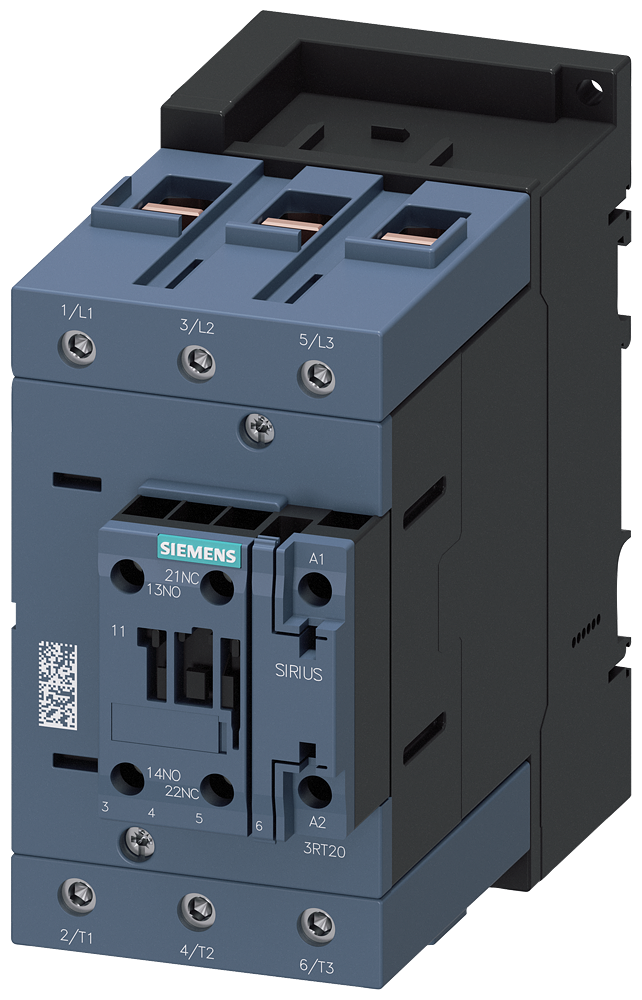

Siemens Contactor, AC3: 45KW/400V, 1NO+1NC, 20-33VAC/DC, 3-Pole, 3NO 3RT2046-1NB30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2046-1NB30 Contactor, AC3: 45kW/400V, 1NO+1NC, 20-33VAC/DC, 3-pole, 3NO.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2046-1NB30
- EAN / GTIN
- 4047621018515
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 45 kW
- Number of poles
- 3P
- Contact configuration
- 1 NO + 1 NC
- Width
- 70 mm
- Height
- 140 mm
- Depth
- 152 mm
- Rated operation power at AC-3, 400 V
- 45 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 95 A
- Rated operation current Ie at AC-1, 400 V
- 130 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 80 A
- Rated operation power at AC-4, 400 V
- 45 kW
- Rated operation power NEMA
- 75 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621018515
- SAP 1000801678
- Code 81645919
Product Documentation
More from Siemens
Siemens
Siemens Adapter for RCBO 5SU1 up to 2 MW accessories for External operating mechanism
5ST3820-5
Siemens
Siemens Current transformer 250/1A 5VA K0,5
4NC5223-0DE21
Siemens
Siemens Supporting structure internal H: 1800 mm, D: 800 mm
8PQ3000-0BA03
Siemens
Siemens 3TX7680-1A Busbar Set for 3TF68 Contactors
Siemens
Siemens SENTRON 3VA9221-0WJ40 — Insulation backplate, 4-Pole, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens SENTRON 3VA9257-0HA10 — Motor operating mechanism (stored-energy, re-charging), 24–60 V DC, 3VA12
Siemens

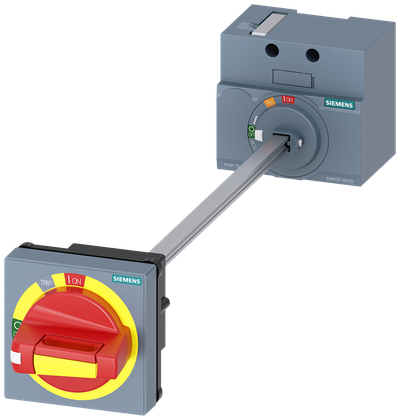

Siemens SENTRON 3VA9157-0FK25 — Door-coupling drive kit with shaft, 3VA10 / 3VA11
Siemens

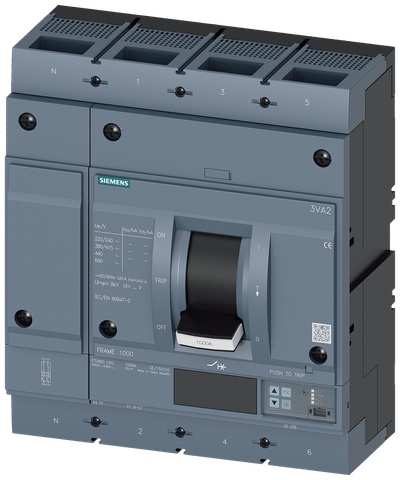

Siemens MCCB_3VA25_4P_85KA_ETU860,LSIG PROTECTION, IN=800A, IR=320A-800A, ISD=0,6-10XIN,II=1,5-10XIN,IG=0,2-1XIN
