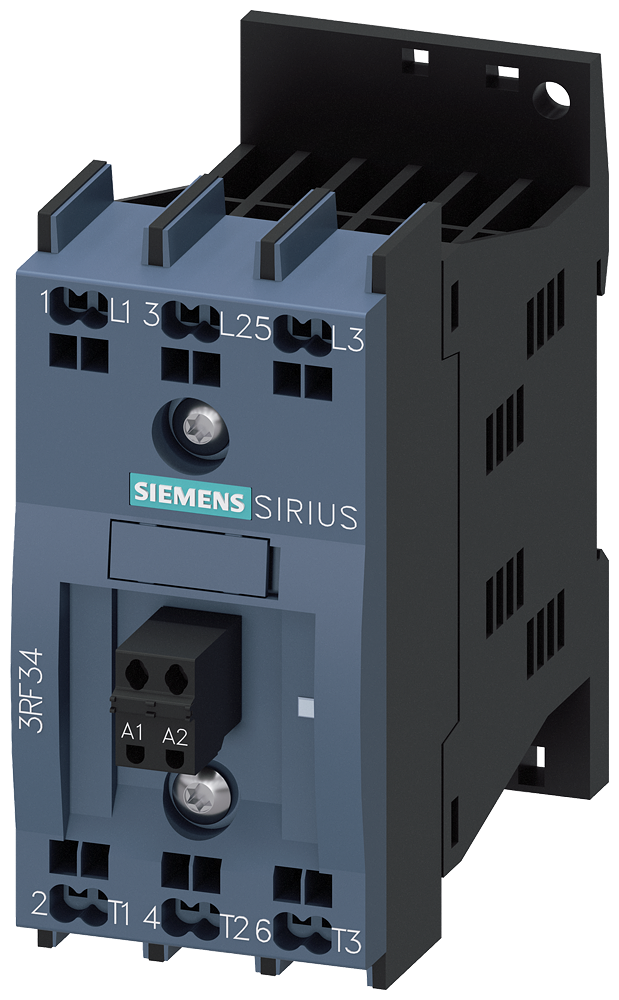

Siemens Solid State 5,2A 24V DC Spring terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RF3405-2BB04 Solid State 5,2A 24V DC Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RF3405-2BB04
- EAN / GTIN
- 4011209863347
- Sales unit
- pcs
- Voltage
- 24 V
- Degree of protection (IP)
- IP20
- Width
- 45 mm
- Operating voltage AC 50 Hz
- 48–480 V
- Operating voltage AC 60 Hz
- 48–480 V
- Depth
- 100.8 mm
- Height
- 95 mm
- With detachable clamps
- Yes
- With LED indication
- Yes
- Type of switch function
- Normally open contact (NO)
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage DC
- 15–24 V
- Voltage type for actuating
- DC
- Operating voltage
- 480 V
- Rated operation current Ie at AC-3
- 5.2 A
- Rated operation current Ie at AC-53a
- 5.2 A
- Number of phases
- 3
- Suitable for distribution board
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209863347
- SAP 1000097855
- Code 8939866
Product Documentation
More from Siemens
Siemens
Siemens LV HRC fuse element
3NA7824-7
Siemens
Siemens Link Module, Spring-Loaded Electrical and Mechanical, for 3RV2
3RA2921-2AA00
Siemens
Siemens Coil for size 3RT1975-5PF31
Siemens

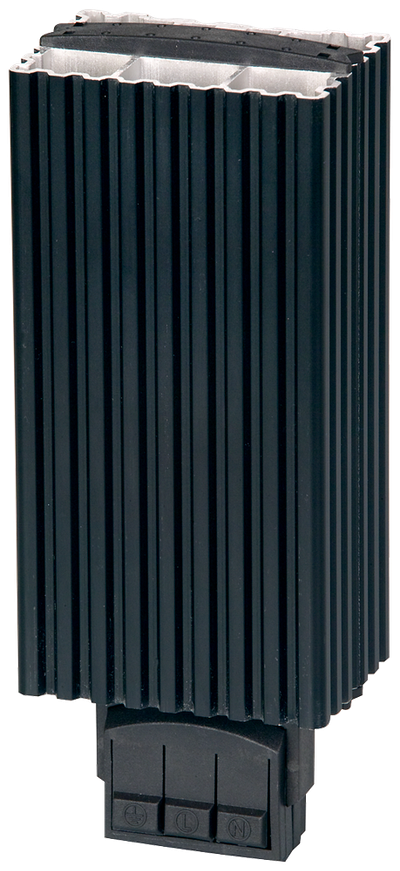

Siemens heating element 15W 120-240VUC, with PTC thermistor
8MR2130-1A
Siemens

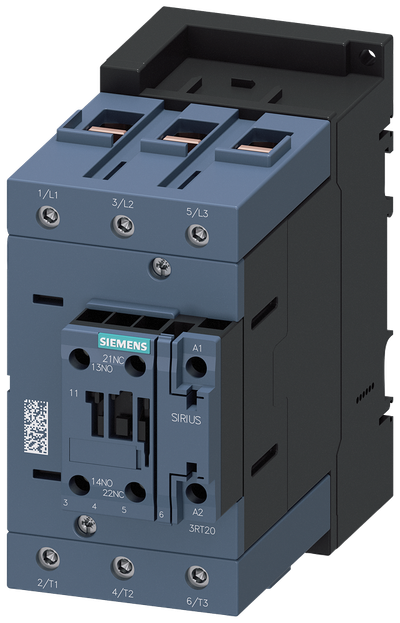

Siemens Contactor, AC3: 45KW/400V, 1NO+1NC, 110VAC 50Hz, 3-Pole, 3NO
