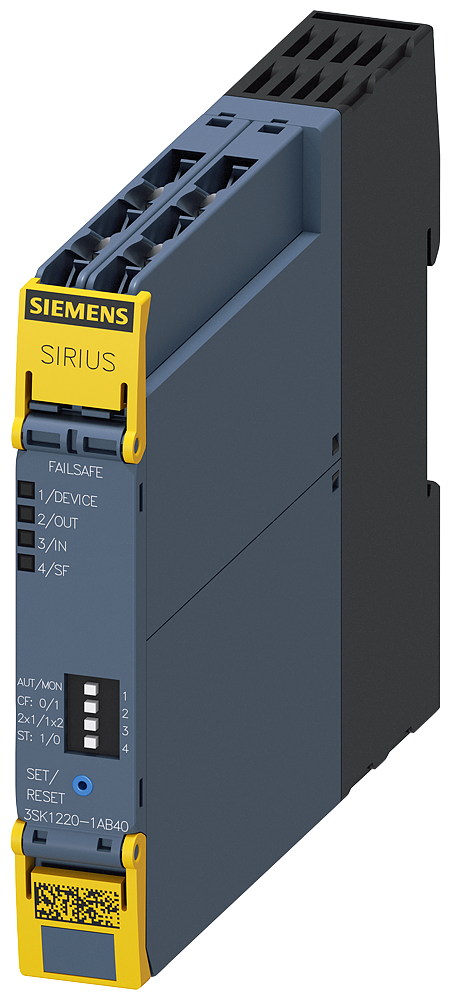

Siemens SIRIUS 3SK1 safety relay 3SK1220-1AB40
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK1220-1AB40 — SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. Input Module 1x2channel/2x1channel.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK1220-1AB40
- EAN / GTIN
- 4011209913868
- HS code
- 8536.90
- Sales unit
- pcs
- Power consumption
- 1.2 W
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Evaluation inputs
- One- and two-channel
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 17.5 mm
- Height
- 100 mm
- Depth
- 121.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209913868
- SAP 1000411962
- Code 81130854
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU550_,LSI,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
3VA2040-5JP46-0AA0
Siemens

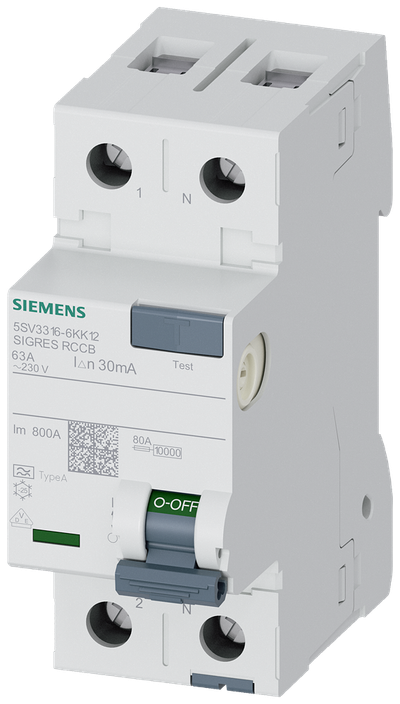

Siemens Residual current circuit breaker A 63/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES
5SV33166KK12
Siemens

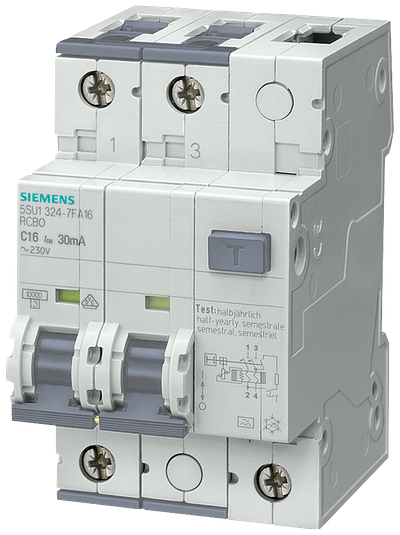

Siemens 5SU13246FA32
Siemens

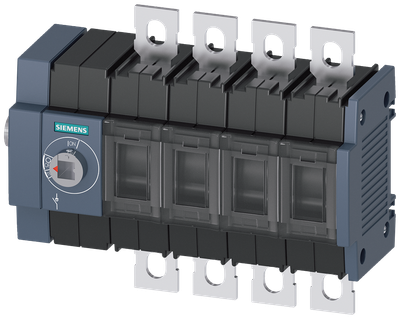

Siemens Load-break switch 125A,size 2,4-Pole,operation side left-hand,bolt
3KD3244-0NE10-0
Siemens

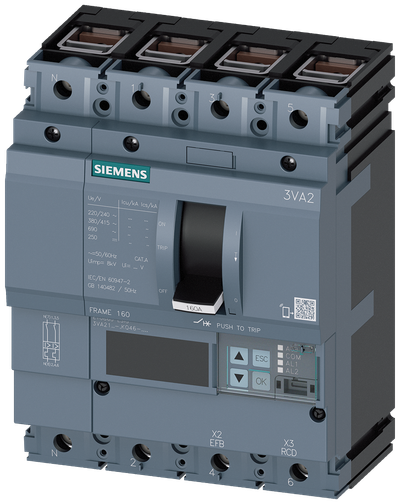

Siemens MCCB_3VA21_4P_55KA_ETU860_,LSIG,IN=160A,IR=64A-160A,ISD=0,6-10XIN,II=1,5-10XIN,IG=0,2-1XIN,terminal Cu
3VA2116-5KQ46-0AA0
Siemens

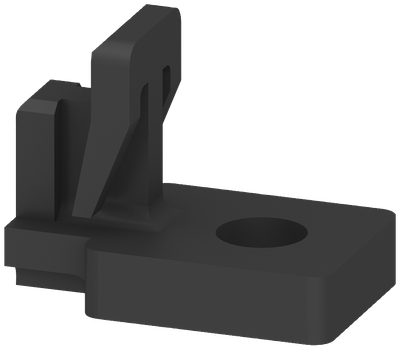

Siemens Accessory for 3KD Size 1 and 2, Mounting Brackets, Set of 4
3KD9120-1
Siemens

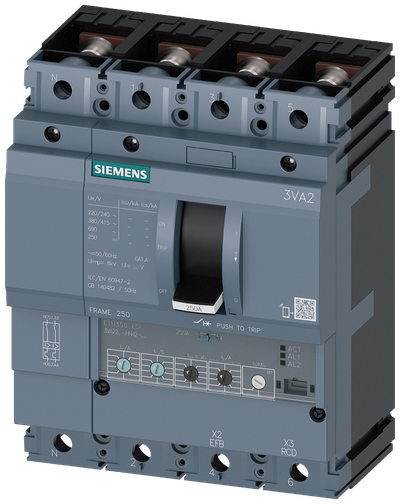

Siemens MCCB_3VA22_4P_55KA_ETU350,LSI,IN=160A,IR=64A-160A,ISD=1,5-10XIR,II=12XIN,,B
