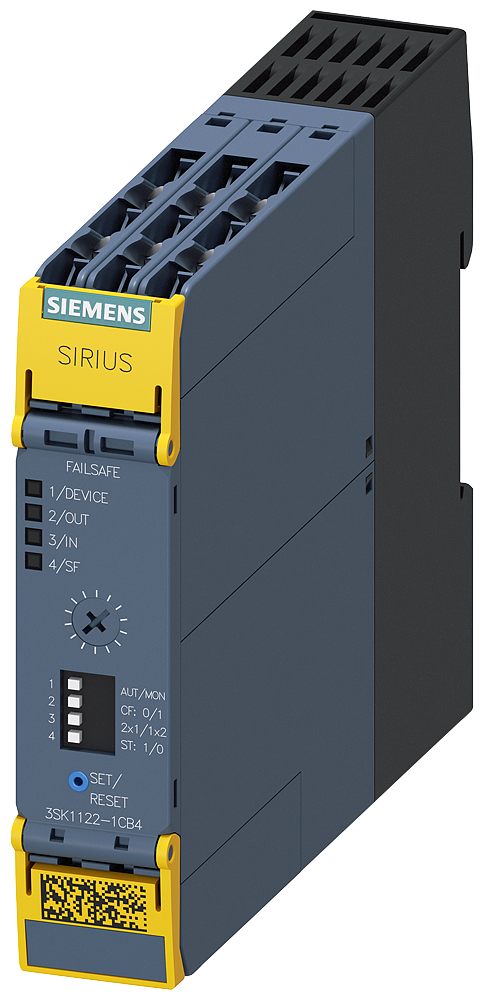

Siemens SIRIUS 3SK1 safety relay 3SK1122-1CB44
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK1122-1CB44 — SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. Advanced electronic 2+2 tidsfor.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK1122-1CB44
- EAN / GTIN
- 4011209913691
- HS code
- 8536.90
- Sales unit
- pcs
- Power consumption
- 2 W
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Model
- Basic device
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Evaluation inputs
- One- and two-channel
- Number of outputs, safety related, undelayed, semiconductors
- 2
- Number of outputs, safety related, delayed, semiconductors
- 2
- Stop category according to IEC 60204
- 0 + 1
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 121.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209913691
- SAP 1000411945
- Code 81130824
Product Documentation
More from Siemens
Siemens

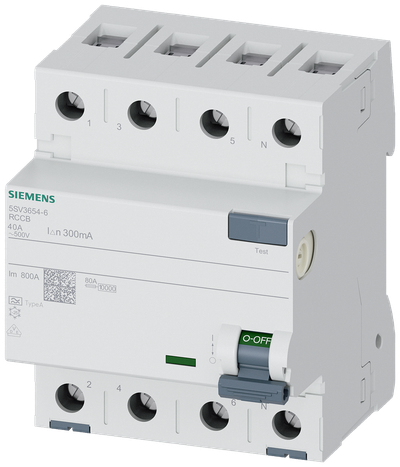

Siemens Residual current circuit breaker, 4-Pole, type A, In: 40 A, 300 mA, Un AC: 500 V
5SV36546
Siemens

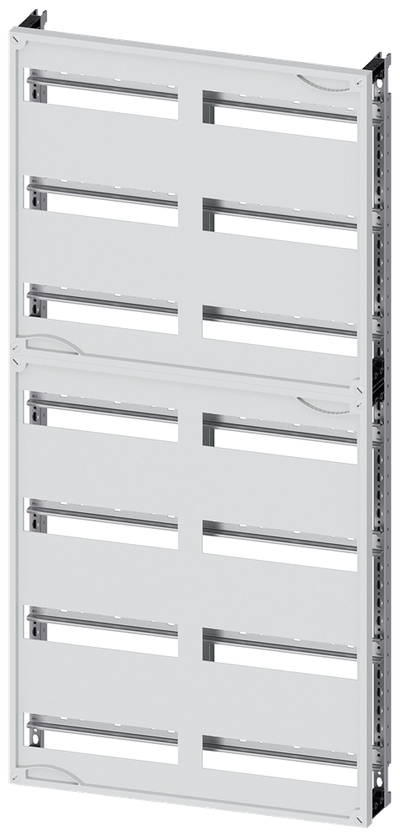

Siemens Alpha 400 Din, Quick Mounting Set for Installation mount 8GK4101-7KK22
Siemens

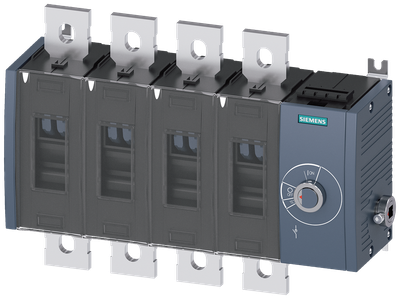

Siemens SENTRON 3KD Switch-Disconnector 3KD4644-0QE40-0, 630 A, 4-Pole, without Rotary Handle
Siemens

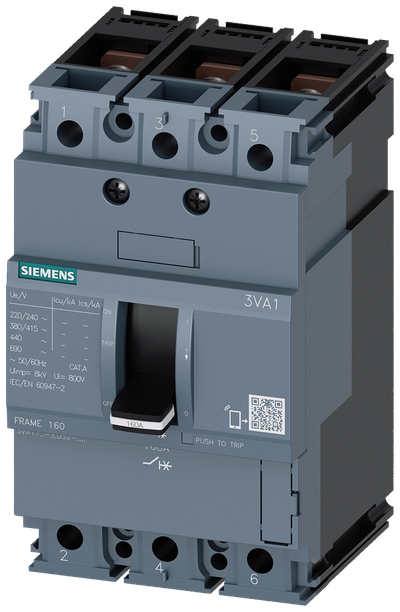

Siemens 3VA1140-5ED32-0AA0 MCCB 3VA11 55 kA 3-Pole TM210 Thermal/Instantaneous 40 A
Siemens

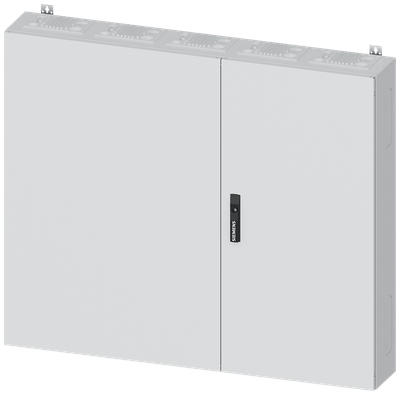

Siemens Alpha 400 Din, Panel board Surface-mounted mounting, Delivery Form Flat Pack, Ap-Cabinet, Colour Ral 9016 8GK1112-5KK52
Siemens

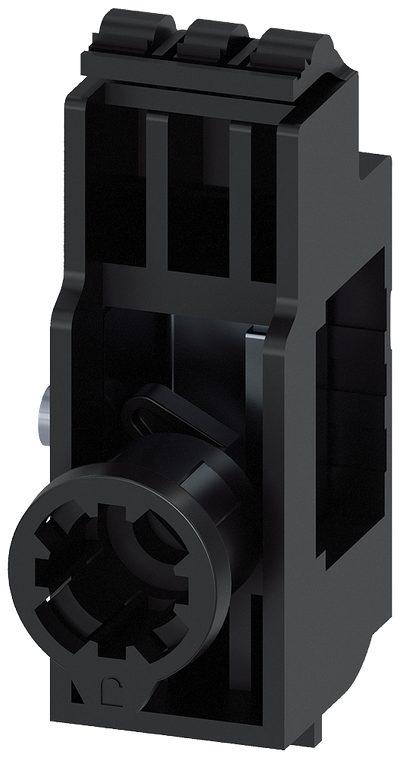

Siemens SENTRON 3VA9157-0LF10 — Lock adapter (RONIS), 3VA10 / 3VA11
Siemens

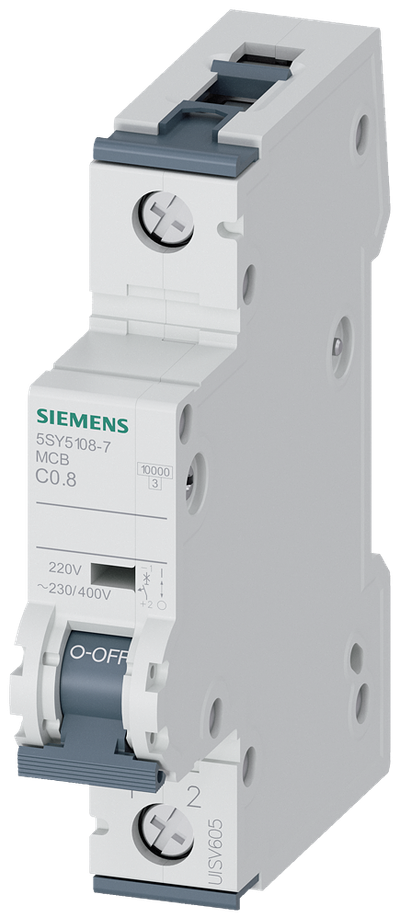

Siemens SENTRON 5SY5108-7 Miniature Circuit Breaker 1-Pole C8A 10KA
Siemens

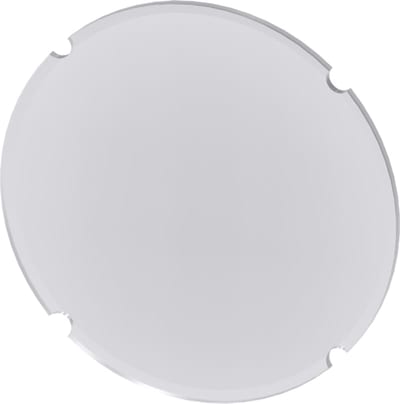

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB710-0AA0
