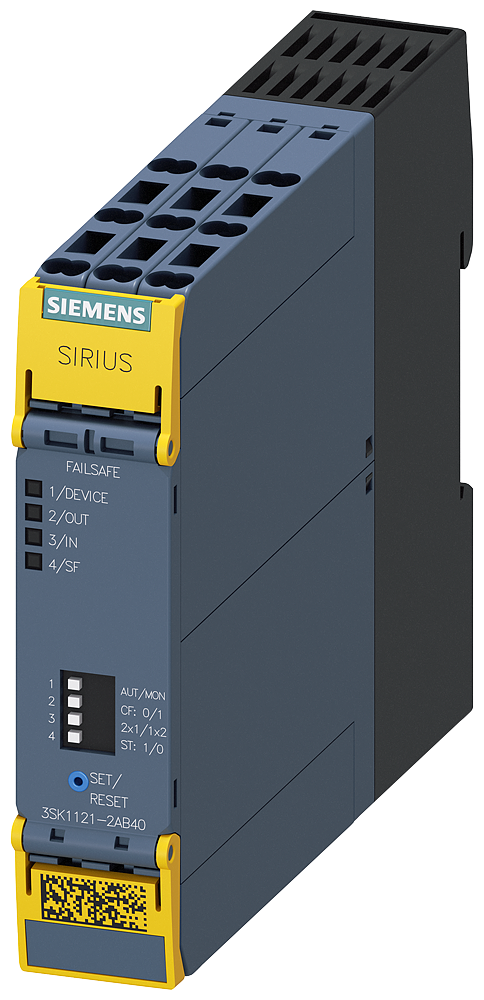

Siemens SIRIUS 3SK1 safety relay 3SK1121-2AB40
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK1121-2AB40 — SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. Advanced relay 3ut 24VDC Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK1121-2AB40
- EAN / GTIN
- 4011209913622
- HS code
- 8536.90
- Sales unit
- pcs
- Power consumption
- 2 W
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Model
- Basic device
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Evaluation inputs
- One- and two-channel
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 121.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209913622
- SAP 1000411938
- Code 81130819
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Contactor, S2, 40A 1NO+1NC, 24V AC/DC, 3-Pole 3RT2035-3NB30
Siemens

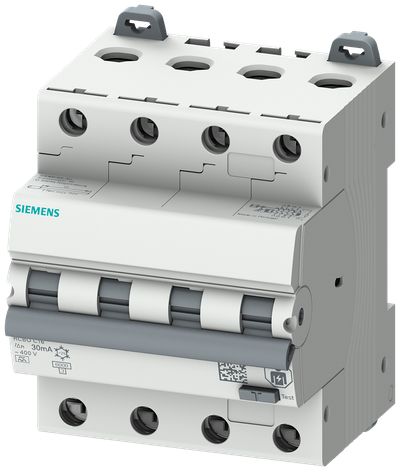

Siemens Residual current circuit breaker with overcurrent, 4P, 6A, Type A 300MA, C-Curve, 6 kA, Un: 230/400V, conductor cross-section 35 mm², torque 2Nm
5SU1646-7FP06
Siemens
Siemens SIMATIC S7 automation module 6ES7531-7NF10-0AB0
Siemens

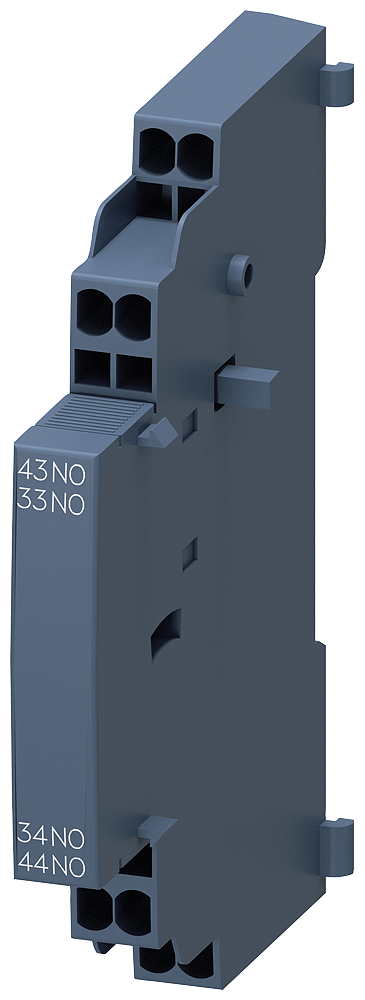

Siemens Auxiliary cover side-mounted 2NO with spring terminals
3RV2901-2B
Siemens

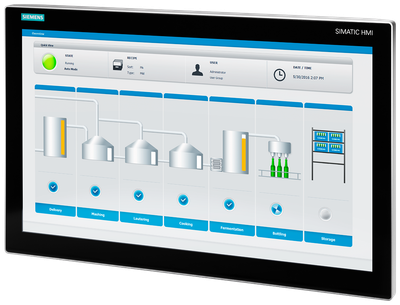

Siemens SIMATIC IFP2200 V2 PRO, 22 multi-touch display (16:9) with 1920X1080 pixel resolution 6AV7863-4MA15-2AA0
