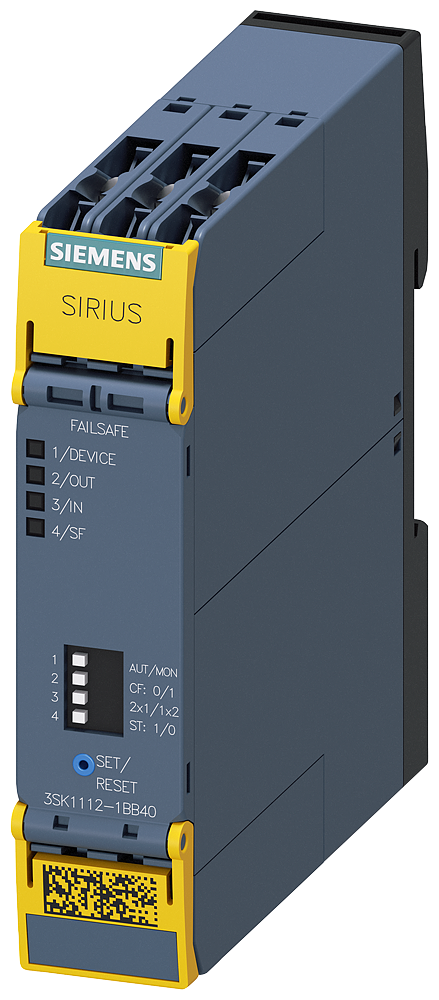

Siemens SIRIUS 3SK1 safety relay 3SK1112-1BB40
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK1112-1BB40 — SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. Standard electronic 2ut 24VDC.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK1112-1BB40
- EAN / GTIN
- 4011209913547
- HS code
- 8536.90
- Sales unit
- pcs
- Power consumption
- 2 W
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Model
- Basic device
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Evaluation inputs
- One- and two-channel
- Number of outputs, safety related, undelayed, semiconductors
- 2
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 91.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209913547
- SAP 1000411934
- Code 8943641
Product Documentation
