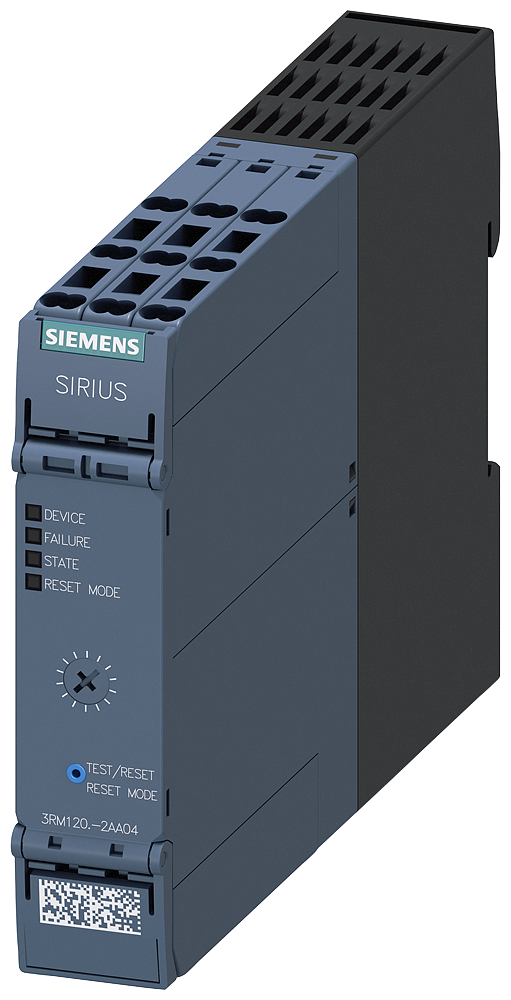

Siemens SIRIUS 3RM1 Reversing Starter, 1,6-7,0A, 3 kW / 400 V, 24V, Spring Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RM1207-2AA04 Reversing switch 1,6-7,0A, 24V spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1207-2AA04
- EAN / GTIN
- 4011209914797
- Sales unit
- pcs
- Voltage
- 24 V
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.6 mm
- Rated operation power at AC-3, 400 V
- 3 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 7 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Rated operation power at AC-3, 230 V, 3-phase
- 1.5 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 2.206 kW
- Rated operation current at AC-3, 400 V
- 7 A
- Ambient temperature, upper operating limit
- 50 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914797
- SAP 1000333473
- Code 81077936
Product Documentation
More from Siemens
Siemens

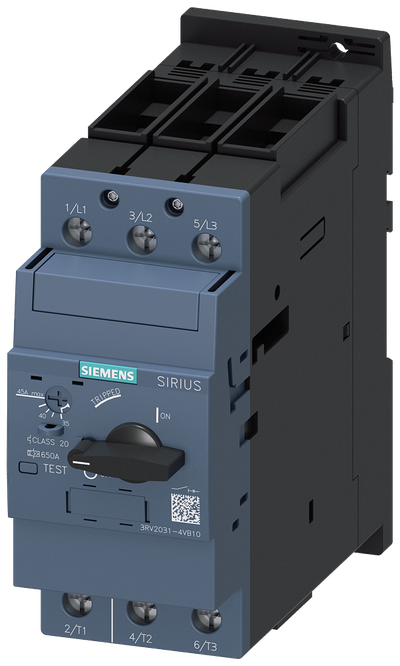

Siemens SIRIUS Motor protection circuit breaker 35 3RV2031-4VB10
Siemens

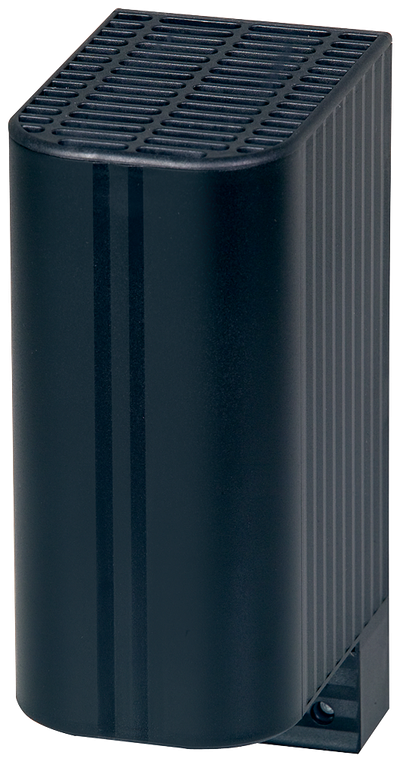

Siemens heating element 50W 120-240VUC, semiconductor
8MR2131-4A
Siemens

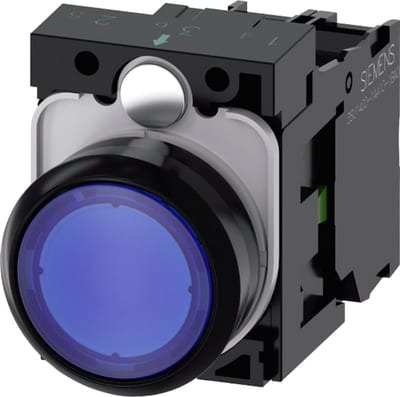

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1106-0AB501-1BA0
Siemens

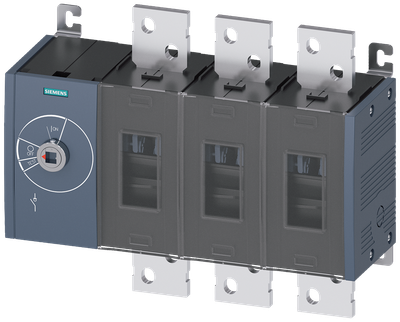

Siemens SENTRON 3KD Switch-Disconnector 3KD5430-0RE10-0, 1600 A, 3-Pole, Front Operated Left, without Rotary Handle
Siemens

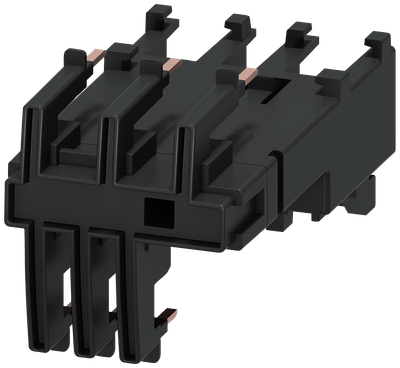

Siemens Link Module 3RV2-3RT2 S00 Spring terminals
3RA2911-2AA00
Siemens

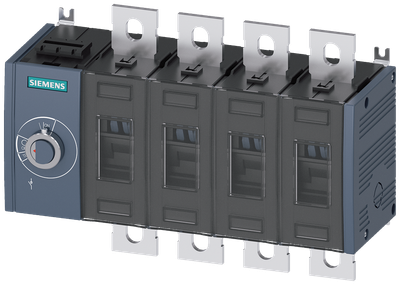

Siemens Load-break switch 250A,size 3,4-Pole,operation side left-hand,bolt
3KD3844-0PE10-0
Siemens

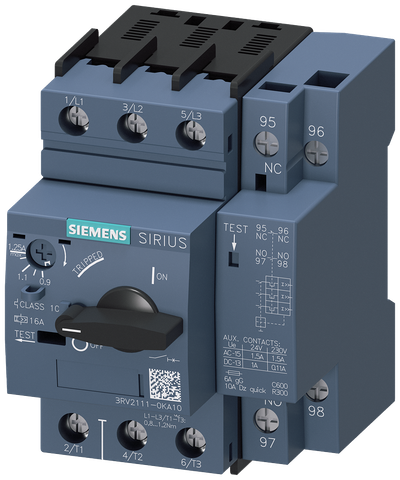

Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2111-0KA10
Siemens

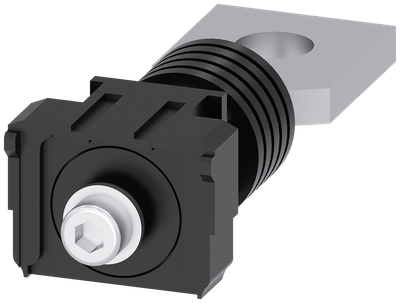

Siemens SENTRON 3VA9211-0QE10 — Rear connection terminal (flat bar), short, 3VA12
