Siemens SIRIUS 3RM1 Reversing Starter, 0.4-2.0A, 0.75 kW / 400 V, 110-230V, Screw Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description

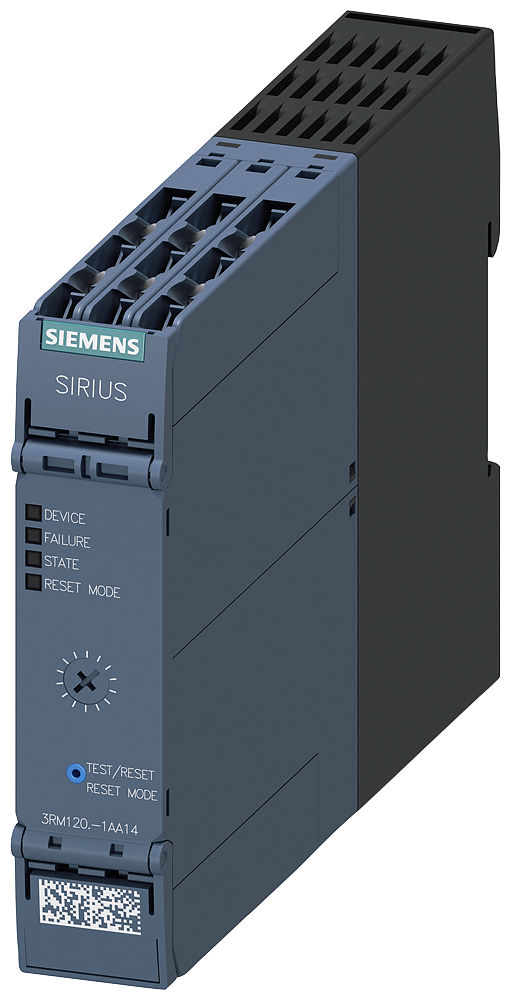

Siemens 3RM1202-1AA14 SIRIUS 3RM1 reversing starter, 0.4-2.0 A, 110-230 V, with screw terminals. 22.5 mm wide compact motor starter for direct-on-line reversing duty on DIN rail. Includes one N/O and one N/C auxiliary contact and four status LEDs.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1202-1AA14
- EAN / GTIN
- 4011209914841
- Sales unit
- pcs
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.6 mm
- Rated operation power at AC-3, 400 V
- 0.75 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 2 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Rated operation power at AC-3, 230 V, 3-phase
- 0.37 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 0.552 kW
- Rated operation current at AC-3, 400 V
- 2 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914841
- SAP 1000333468
- Code 8880127
