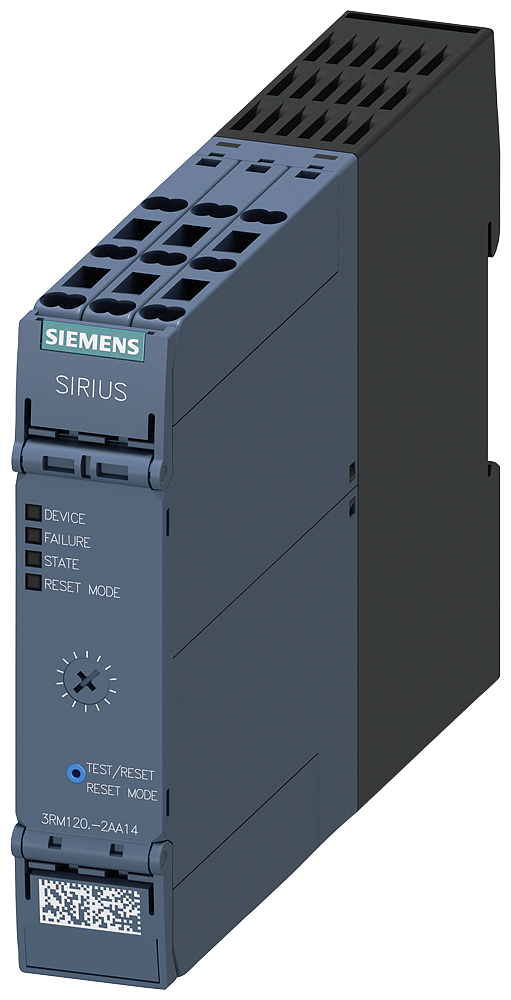

Siemens SIRIUS 3RM1 Reversing Starter, 0.1-0.5A, 0.12 kW / 400 V, 110-230V, Spring Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RM1201-2AA14 Reversing switch 0.1-0.5A, 110-230V spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1201-2AA14
- EAN / GTIN
- 4011209914896
- Sales unit
- pcs
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.6 mm
- Rated operation power at AC-3, 400 V
- 0.12 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 0.5 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Rated operation power at AC-3, 230 V, 3-phase
- 0.06 kW
- Rated operation current at AC-3, 400 V
- 0.5 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914896
- SAP 1000333466
- Code 8940906
Product Documentation
More from Siemens
Siemens
Siemens Accessory for 3KD ST4, N-terminal with detachable jumper link, flat terminal
3KD9406-0
Siemens

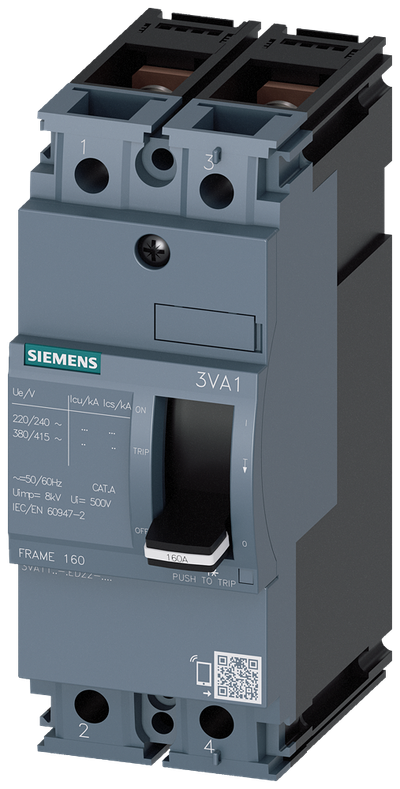

Siemens Circuit breaker 3VA1,50A,2-Pole,TM210,25KA, Bolt Connection
3VA1150-3ED22-0AA0
Siemens

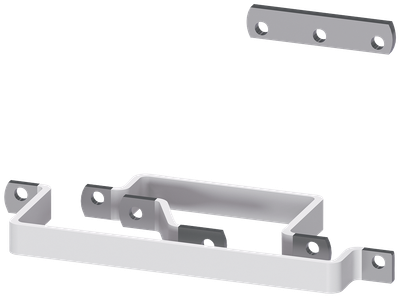

Siemens 3TX7680-1B Busbar Set for 3TE68 Contactors
Siemens

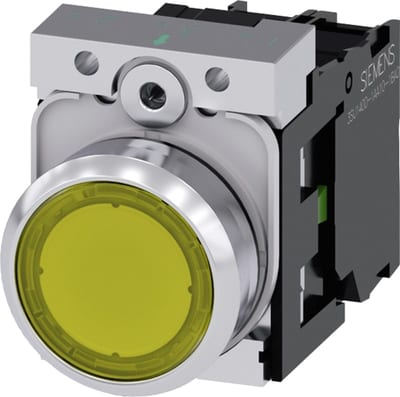

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1152-0AB301-1BA0
Siemens

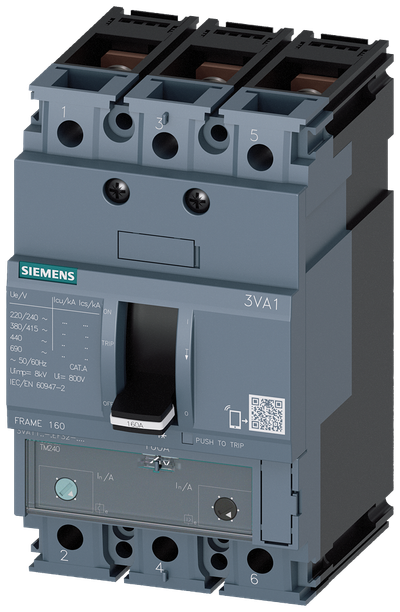

Siemens 3VA11, 55KA, 3-Pole, TM240, IN=20A,IR=14A 3VA1120-5EF32-0AA0
Siemens

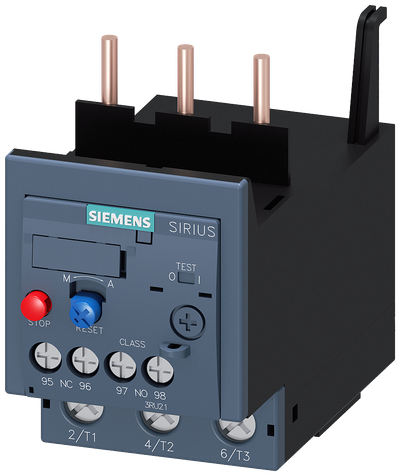

Siemens SIRIUS 3RU2136-4KB0 Thermal Overload Relay, Class 10A
Siemens

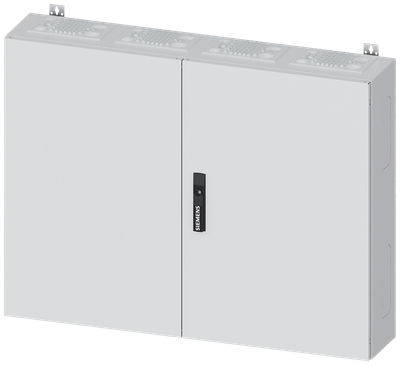

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 1, H: 800 mm, W: 1050 mm, D: 210 mm, RAL 9016
8GK1122-3KA42
Siemens

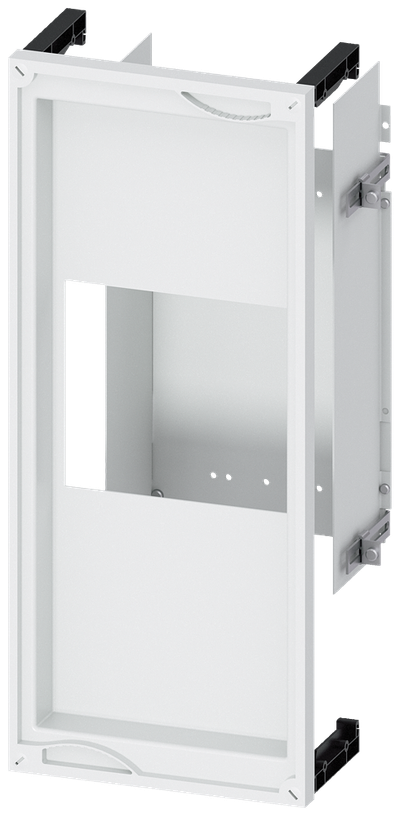

Siemens ALPHA 630 kit 1X3VL 630, 3 P, vertical mounting, front operation H=600/ W=250, only depth 320/400mm
