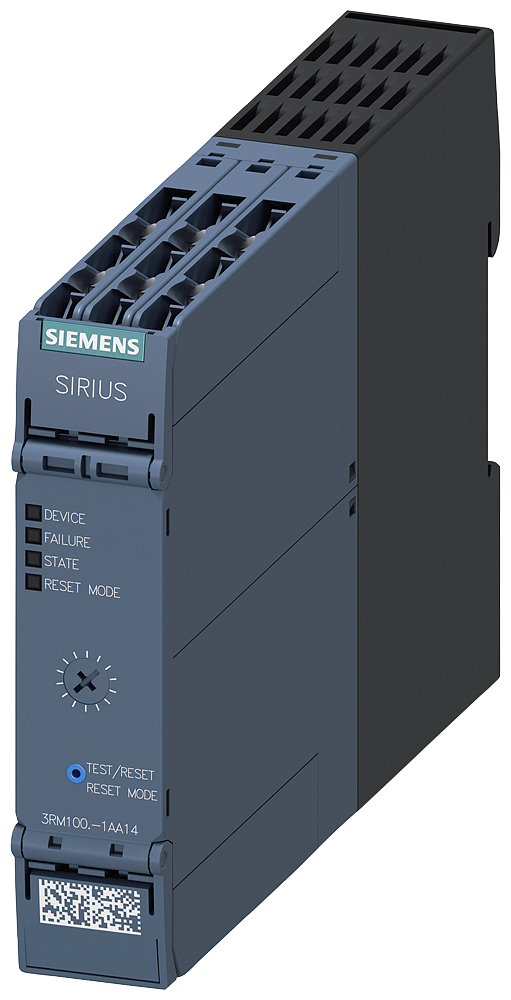

Siemens SIRIUS 3RM1 Direct-on-Line Starter 0.1-0.5 A, screw terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RM1001-1AA14 Direct-on-line starter 0.1-0.5 A, 110-230 V, screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1001-1AA14
- EAN / GTIN
- 4011209914803
- Sales unit
- pcs
- Voltage
- 110-230 V
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.6 mm
- Rated operation power at AC-3, 400 V
- 0.12 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 0.5 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Rated operation power at AC-3, 230 V, 3-phase
- 0.06 kW
- Rated operation current at AC-3, 400 V
- 0.5 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914803
- SAP 1000333452
- Code 8880097
Product Documentation
More from Siemens
Siemens

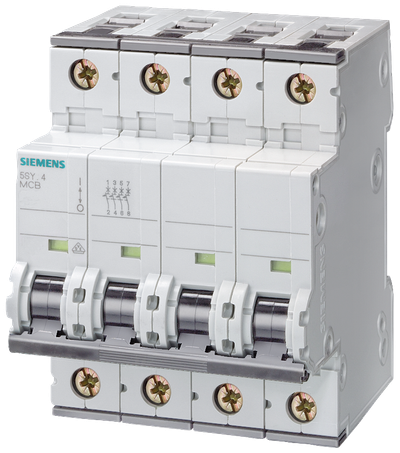

Siemens SENTRON 5SY7420-6 Miniature Circuit Breaker 4-Pole B20A 15KA
Siemens

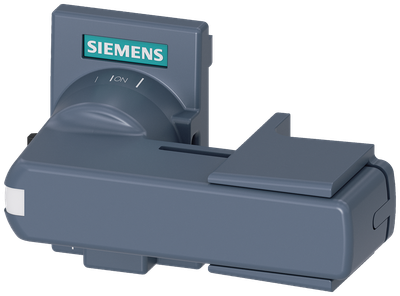

Siemens Accessory for 3KD ST2, direct rotary control, flat type, lockable
3KD9201-0
Siemens

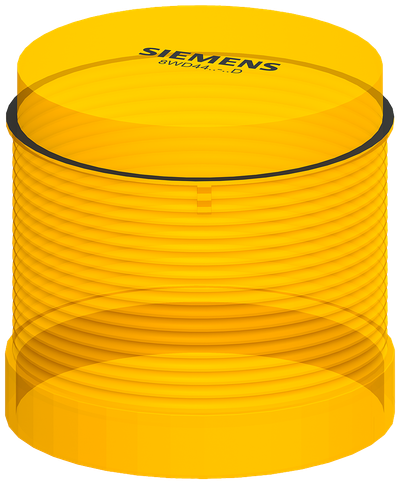

Siemens Signal column varig LED yellow 24VAC/DC
8WD4420-5AD
Siemens

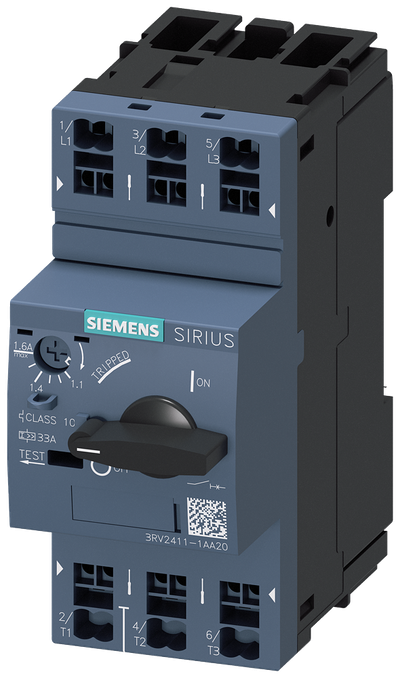

Siemens Circuit breaker for transformer 1 3RV2411-1AA20
Siemens

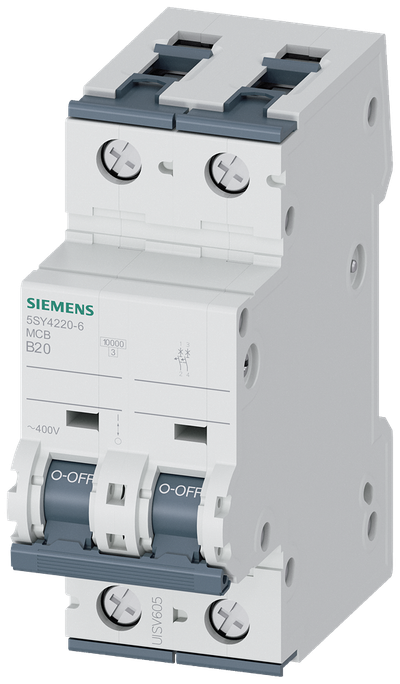

Siemens SENTRON 5SY4220-6 Miniature Circuit Breaker 2-Pole B20A 10KA
Siemens

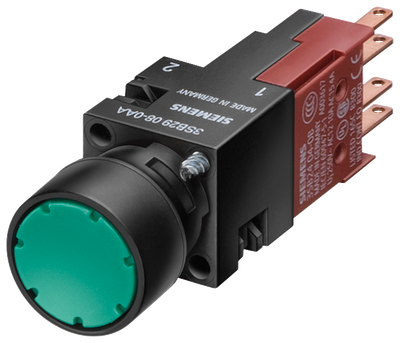

Siemens 3SB22060AH01
Siemens

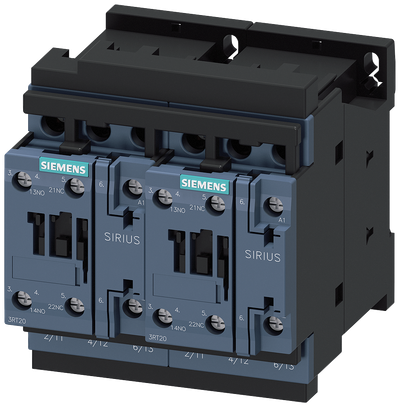

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 12 A, 5.5 kW / 400 V, 3-Pole, 230 V AC, 50/60 Hz, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1
3RA2324-8XB30-1AL2
Siemens

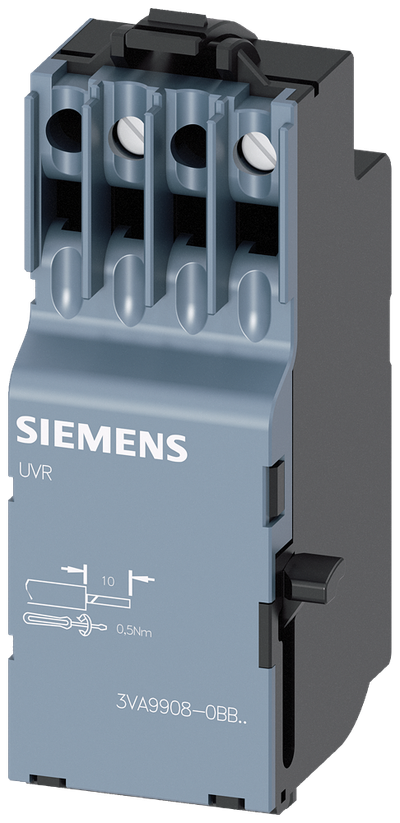

Siemens SENTRON 3VA9908-0BB16 — Undervoltage release (UVR), 250 V DC
