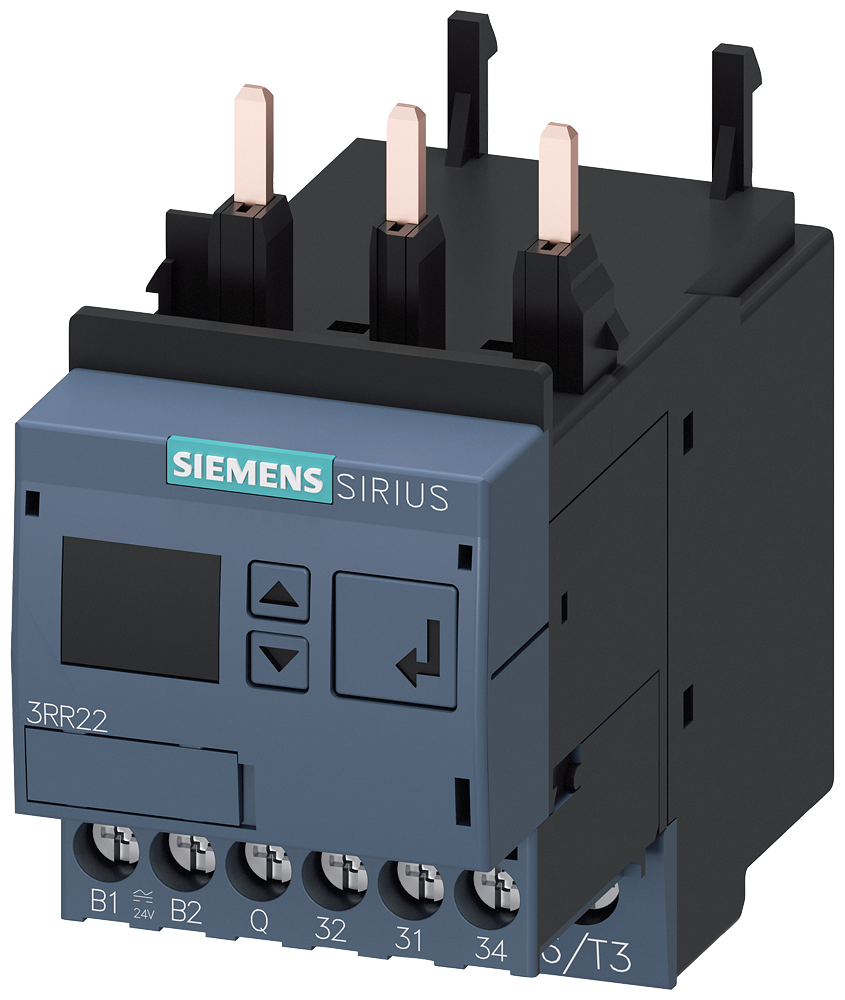

Siemens Current monitoring relay, Standard digital 4-40A 3-Phase
Pricing
Request a quote
We reply within 24 hours
Product Description
Current monitoring relay, Standard digital 4-40A 3-Phase.
Technical Specifications
- Manufacturer part number (MPN)
- 3RR2242-1FW30
- EAN / GTIN
- 4011209787308
- Sales unit
- pcs
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Supply voltage AC 50 Hz
- 24–240 V
- Supply voltage AC 60 Hz
- 24–240 V
- Supply voltage DC
- 24–240 V
- Response value amperage 1
- 4–40 A
- Response value amperage 2
- 4–40 A
- Type of current
- AC
- Voltage type (supply voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type for actuating
- AC/DC
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 99 s
- Min. adjustable off-delay time
- 0 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- External current transformer
- No
- Width
- 45 mm
- Height
- 87 mm
- Depth
- 91 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209787308
- SAP 1000097853
- Code 8591655
