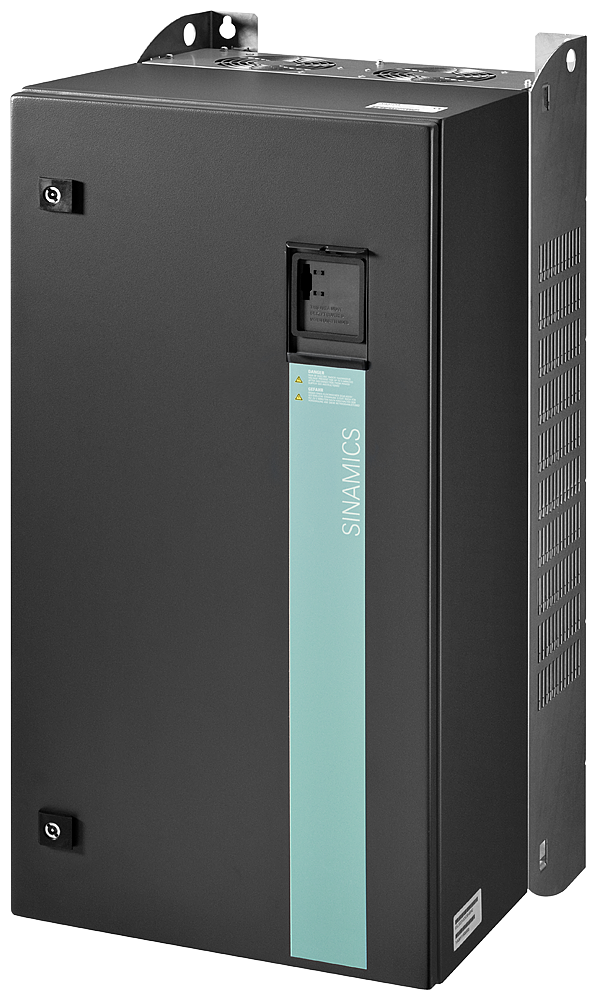

Siemens Sinamics G120P PM230 3AC 400V 75kW with integrated filter kl 6SL3223-0DE37-5AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3223-0DE37-5AA0 Sinamics G120P PM230 3AC 400V 75kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3223-0DE37-5AA0
- EAN / GTIN
- 4019169458283
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 75 kW
- Width
- 410 mm
- Height
- 915 mm
- Depth
- 416 mm
- With control element
- No
- Degree of protection (IP)
- IP55
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 55 kW
- Max. output at quadratic load at rated output voltage
- 75 kW
- Relative symmetric net voltage tolerance
- -10 %
- Relative symmetric net frequency tolerance
- 5 %
- Nominal output current I2N
- 145 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4019169458283
- SAP 1000321379
- Code 8808772
Product Documentation
More from Siemens
Siemens
Siemens Load-break switch 630A,size 4,6-Pole,1200VDC
3KD4660-0QE20-0
Siemens
Siemens Load-break switch 160A,size 2, frame terminal for cable,6-Pole,1200VDC
3KD3460-2NE20-0
Siemens
Siemens Separation lateral, H: 800 mm
8PQ5000-2BA45
Siemens

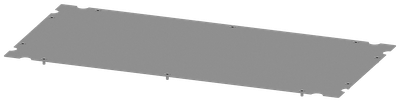

Siemens Floor plate IP55, W: 800 mm D: 400 mm
8PQ2308-4BA05
Siemens

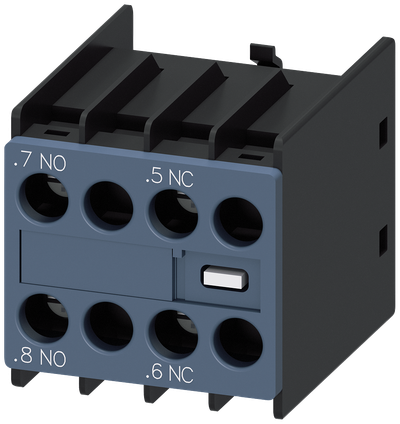

Siemens Auxiliary contactor akt 11U,1NO+1NC Front-mounted S00/ S0
3RH2911-1FB11
Siemens

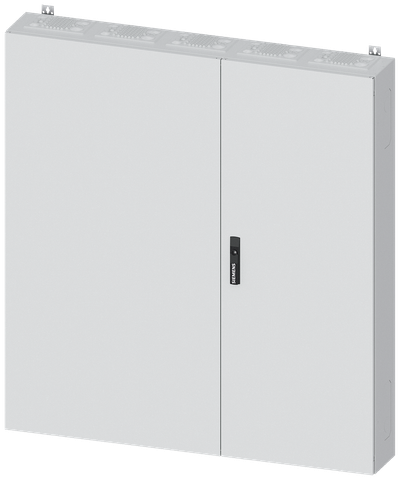

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 1, H: 1400 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1122-7KA52
Siemens

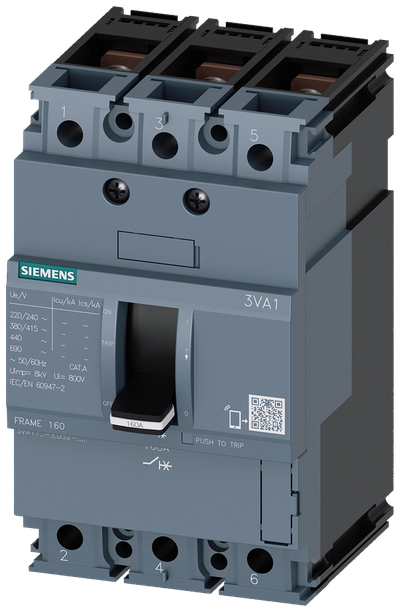

Siemens 3VA1 Circuit Breaker 25 kA 3-Pole 63 A TM210 Fast Thermal Release
3VA1163-3ED32-0AA0
Siemens

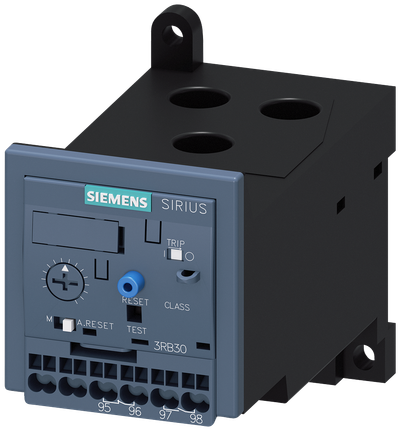

Siemens SIRIUS 3RB3 Electronic Overload Relay 20...80 A, Size S2, Class 10E, Main Straight-through transformer, Aux Spring-type
