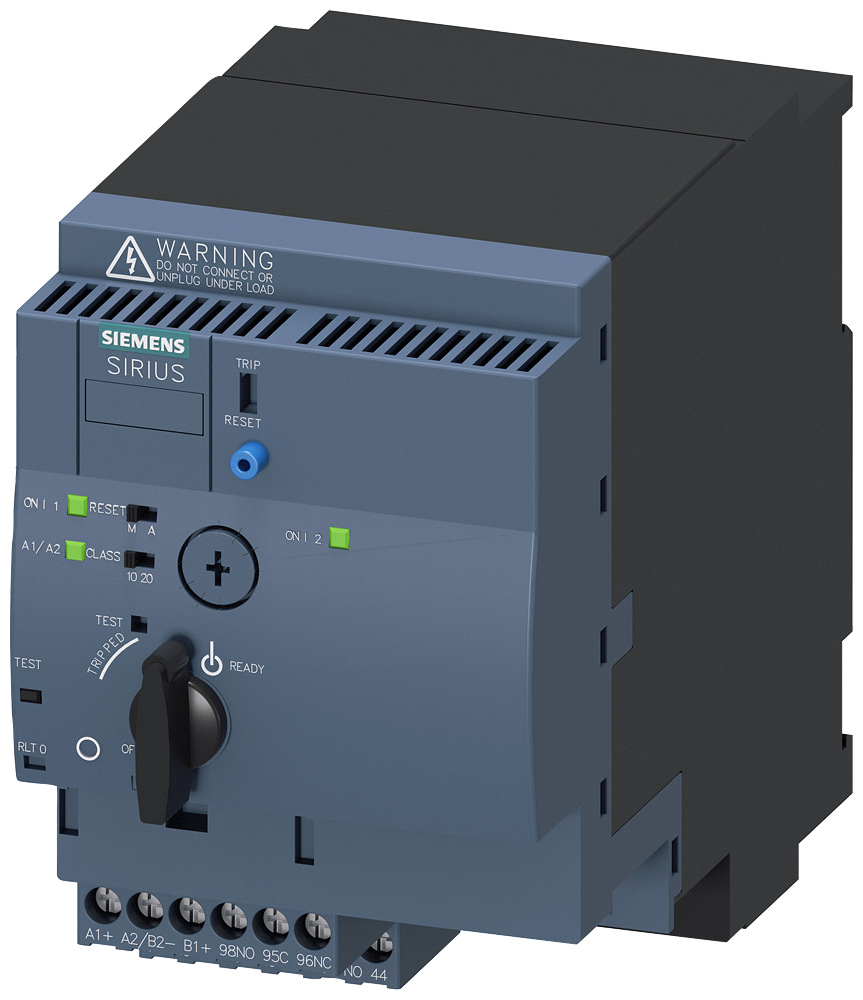

Siemens Compact Reversing Starter, 0.1-0.4A, 24V AC/ DC, 90 mm Wide, Screw Connection, for Infeed System
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA6250-1AB33 Kompaktstarter reversing switch 24V AC/ DC,0.1-0.4Afor infeed system.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA6250-1AB33
- EAN / GTIN
- 4011209714977
- Sales unit
- pcs
- Voltage
- 24 V
- Width
- 90 mm
- Height
- 170 mm
- Depth
- 165 mm
- Rated operation power at AC-3, 400 V
- 0.09 kW
- Number of command positions
- 2
- Number of auxiliary contacts as normally open contact
- 2
- Suitable for emergency stop
- No
- Rated operation current Ie
- 0.4 A
- Number of indicator lights
- 3
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Type of motor starter
- Reversing starter
- Rated operation current at AC-3, 400 V
- 0.4 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209714977
- SAP 1000243638
- Code 826737
Product Documentation
More from Siemens
Siemens

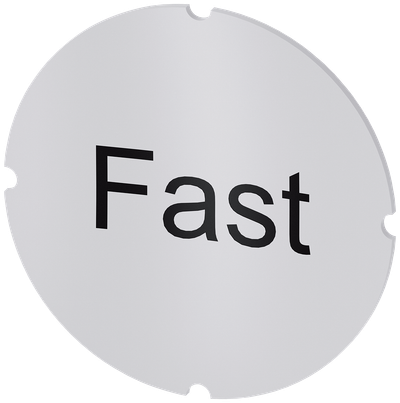

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0EE0
Siemens

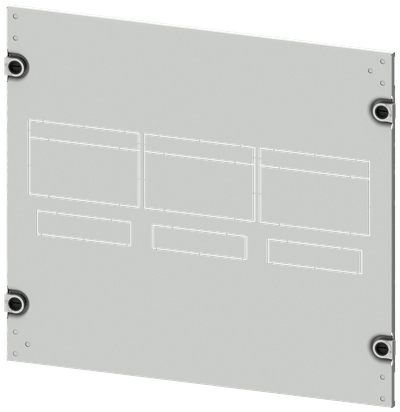

Siemens Sivacon S4 Cover 3VA23_24 VR 3 POLE FAST Mounting Pluggable 450X600
8PQ2045-6BA12
Siemens

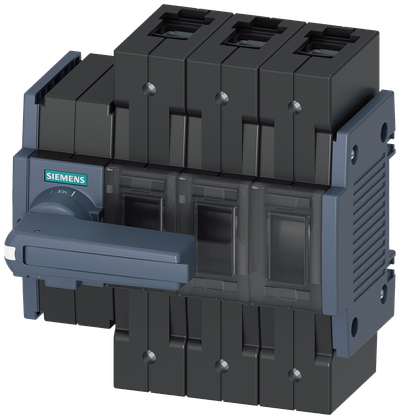

Siemens SENTRON 3KD Switch-Disconnector 3KD3032-2NE10-0, 100 A, 3-Pole, Front Operated Left, with Rotary Handle
Siemens

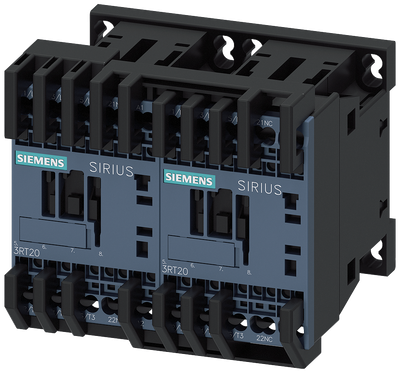

Siemens SIRIUS Reversing Contactor Assembly, AC-3E/AC-3, 7 A, 3 kW / 400 V, 3-Pole, 24 V AC, 50/60 Hz, Size S00, spring-loaded terminal, electrical and mechanical interlock
3RA2315-8XB30-2AB0
Siemens

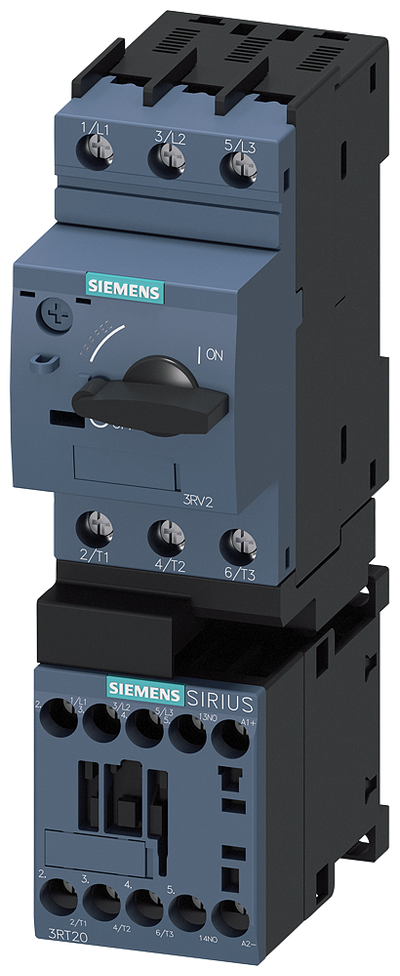

Siemens SIRIUS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.20...3.20 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
