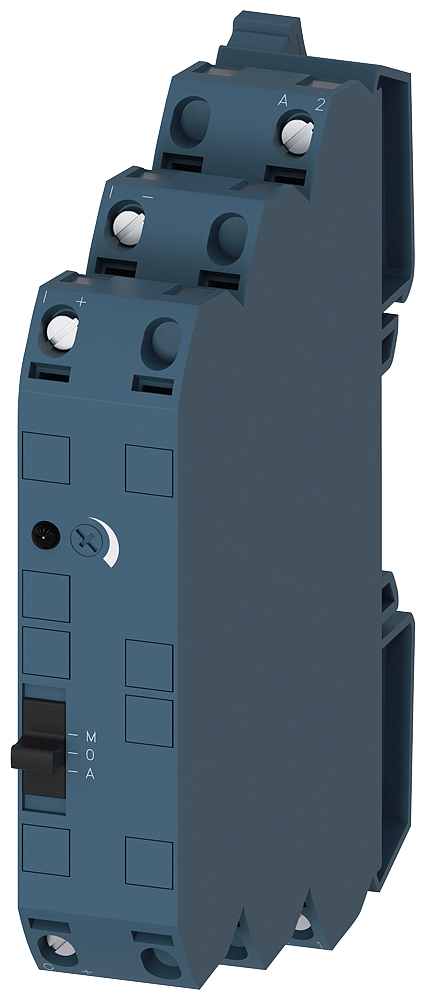

Siemens Signal Converter Manual/Auto 24-240V AC/DC 3-Way Isolation

Siemens 3RS7025-1FW00 is a signal converter with manual/auto selection, a 24-240 V AC/DC supply, and 3-way galvanic isolation between input and output. Inputs and outputs cover 0-10 V and 0/4-20 mA ranges for analogue signal conditioning. The 17.5 mm DIN-rail housing uses screw terminals and operates from -25 to 60 degrees C.

Manufacturer part number (MPN)

3RS7025-1FW00

EAN / GTIN

4047621001159

Sales unit

pcs

Voltage

24-240 V

Rated supply voltage AC

24–240 V

Rated operating frequency

50–60 Hz

Rated supply voltage DC

24–240 V

Number of input ranges 0 V ... 10 V

1

Number of input ranges 0 mA ... 20 mA

1

Number of input ranges 4 mA ... 20 mA

1

Number of output ranges 0 V ... 10 V

1

Number of output ranges 0 mA ... 20 mA

1

Number of output ranges 4 mA ... 20 mA

1

Number of channels

1

Malfunction message output

No

Galvanic separation between inputs

No

Galvanic separation between input and output

Yes

Galvanic separation between output to output

No

SIL according to IEC 61508

None

Height

93 mm

Width

17.5 mm

Depth

75 mm

Power consumption

0.5 W

Load

500 Ohm

Load influence

0 %

Operating temperature

-25–60 °C

Temperature drift

0.015 %/K

Construction type of device

Built-in device

Type of electric connection

Screw connection

Mounting method

Snap mounting support rail

Degree of protection (IP)

IP20

Device construction

Built-in device

Country of origin

Germany

HS Code

8538.90

• EAN 4047621001159
• SAP 1000790547
• Code 81401952
