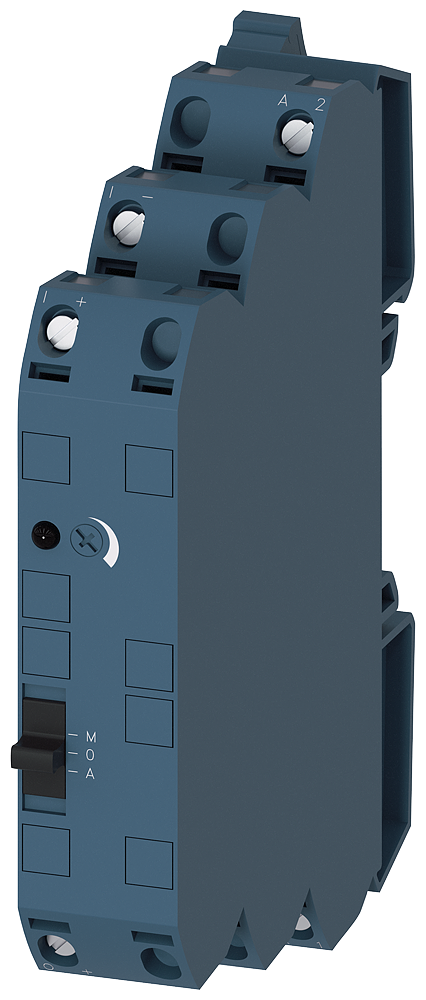

Siemens 3RS7025-1FE00 Signal Converter Man/Auto 24V AC/DC 3-Way Isolated

Siemens 3RS7025-1FE00 is a 3-way isolated signal converter with manual/automatic mode selection and 24 V AC/DC supply. Inputs accept 0-10 V and 0/4-20 mA; outputs deliver 0-10 V and 0/4-20 mA into 500 ohm loads. Single-channel built-in device, 17.5 mm width, DIN-rail mounted with screw connections and rated IP20 across -25 to 60 °C operating temperature. Country of origin Germany.

Manufacturer part number (MPN)

3RS7025-1FE00

EAN / GTIN

4047621001142

Sales unit

pcs

Voltage

24 V

Rated supply voltage AC

24 V

Rated operating frequency

50–60 Hz

Rated supply voltage DC

24 V

Number of input ranges 0 V ... 10 V

1

Number of input ranges 0 mA ... 20 mA

1

Number of input ranges 4 mA ... 20 mA

1

Number of output ranges 0 V ... 10 V

1

Number of output ranges 0 mA ... 20 mA

1

Number of output ranges 4 mA ... 20 mA

1

Number of channels

1

Malfunction message output

No

Galvanic separation between inputs

No

Galvanic separation between input and output

Yes

Galvanic separation between output to output

No

SIL according to IEC 61508

None

Height

93 mm

Width

17.5 mm

Depth

75 mm

Power consumption

0.5 W

Load

500 Ohm

Load influence

0 %

Operating temperature

-25–60 °C

Temperature drift

0.015 %/K

Construction type of device

Built-in device

Type of electric connection

Screw connection

Mounting method

Snap mounting support rail

Degree of protection (IP)

IP20

Device construction

Built-in device

Country of origin

Germany

HS Code

8538.90
