Siemens 3RS7006-2FE00 signal converter, 24 V AC/DC, 3-way isolation
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS7006-2FE00 signal converter, 24 V AC/DC, provides 3-way galvanic isolation between input, output and supply. Input ranges cover mV, V and mA signals, output is V or mA. Built as a 17.5 mm-wide DIN-rail device with spring-clamp terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS7006-2FE00
- EAN / GTIN
- 4047621001302
- Sales unit
- pcs
- Voltage
- 24 V
- Number of input ranges 0 mV ... 60 mV
- 1
- Number of input ranges 0 mV ... 100 mV
- 1
- Number of input ranges 0 mV ... 300 mV
- 1
- Number of input ranges 0 mV ... 500 mV
- 1
- Number of input ranges 0 V ... 1 V
- 1
- Number of input ranges 0 V ... 2 V
- 1
- Number of input ranges 0 V ... 5 V
- 1
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 V ... 20 V
- 1
- Number of input ranges 2 V ... 10 V
- 1
- Number of input ranges 0 mA ... 5 mA
- 1
- Number of input ranges 0 mA ... 10 mA
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of input ranges -5 mA ... +5 mA
- 1
- Number of input ranges -20 mA ... +20 mA
- 1
- Number of output ranges 0 V ... 10 V
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 17.5 mm
- Depth
- 72.5 mm
- Power consumption
- 0.5 W
- Load
- 500 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001302
- SAP 1000790542
- Code 81401901
Product Documentation
More from Siemens
Siemens
Siemens 3VA12, 70KA, 4-Pole, TM240, IN=250A,IR=175A
3VA1225-6GF42-0AA0
Siemens
Siemens Alpha 400 Din, Quick Mounting Set for Installation mount 8GK4001-8KK22
Siemens
Siemens Klemmekapper F/M10
3TX6546-3B
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD3840-0PE10-0, 250 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens SIRIUS Twin pushbutton, 22 mm, round, plastic, white, black, pushbuttons, flat and raised
3SU1000-3BB61-0AA0
Siemens

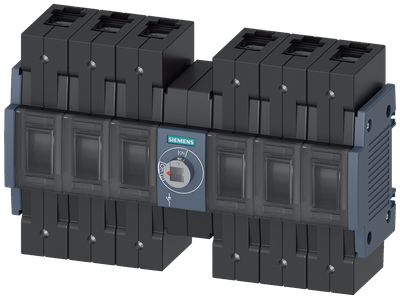

Siemens Load-break switch 100A,size 2, frame terminal for cable,6-Pole,1200VDC
3KD3060-2NE20-0
Siemens

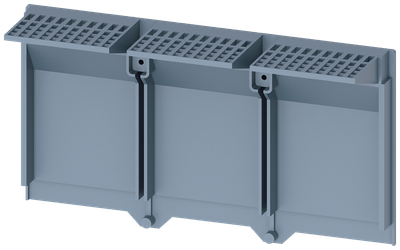

Siemens SENTRON 3VA9481-0WJ30 — Insulation backplate, 3-Pole, 3VA23 / 3VA24
Siemens

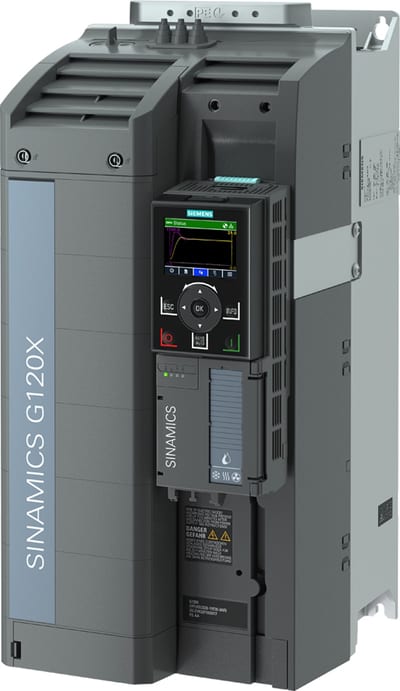

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE30-0UF0
