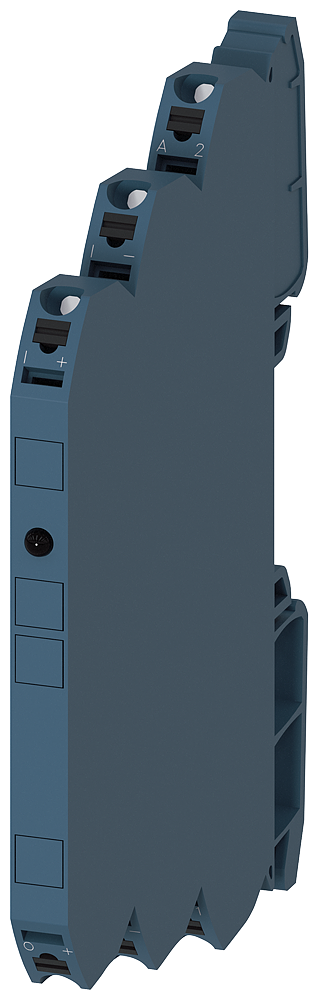

Siemens Signal Converter 3RS7002-2CE00 24 V AC/DC 3-Way Input 0-20 mA Output 0-20 mA

Siemens 3RS7002-2CE00 signal converter with 3-way galvanic isolation between input and output, 24 V AC/DC supply, input and output both 0-20 mA for process and measurement signalling. Housing 6.2 mm wide with spring-clamp connections for snap mounting on DIN rail, IP20 built-in device. Load 500 Ohm, operating temperature -25 to +60 C, temperature drift 0.015%/K, power consumption 0.29 W.

Manufacturer part number (MPN)

3RS7002-2CE00

EAN / GTIN

4047621001210

Sales unit

pcs

Voltage

24 V

Rated supply voltage AC

24 V

Rated operating frequency

50–60 Hz

Rated supply voltage DC

24 V

Number of input ranges 0 mA ... 20 mA

1

Number of output ranges 0 mA ... 20 mA

1

Number of channels

1

Malfunction message output

No

Galvanic separation between inputs

No

Galvanic separation between input and output

Yes

Galvanic separation between output to output

No

SIL according to IEC 61508

None

Height

93 mm

Width

6.2 mm

Depth

72.5 mm

Power consumption

0.29 W

Load

500 Ohm

Load influence

0 %

Operating temperature

-25–60 °C

Temperature drift

0.015 %/K

Construction type of device

Built-in device

Type of electric connection

Spring clamp connection

Mounting method

Snap mounting support rail

Degree of protection (IP)

IP20

Device construction

Built-in device

Country of origin

Germany

HS Code

8538.90
