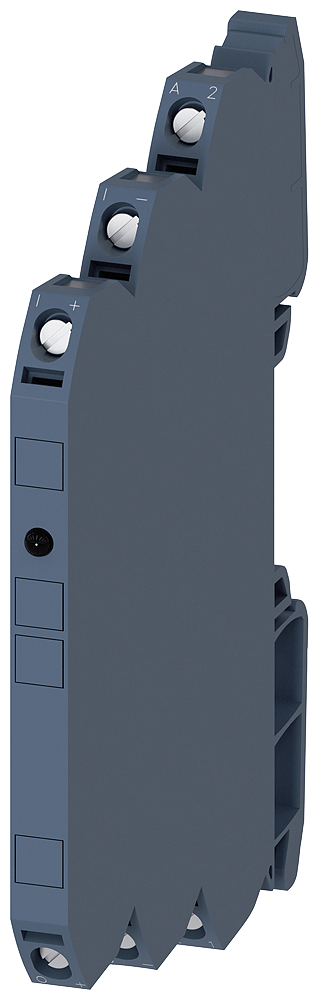

Siemens 3RS7002-1CE00 Signal Converter 24 V AC/DC, 3-Way Isolation

Siemens 3RS7002-1CE00 signal converter, 24 V AC/DC, with 3-way isolation between input and output. Input range 0-20 mA, output range 0-20 mA on a single channel. Built-in device with screw connection for snap mounting on DIN support rail, rated IP20 and operating from -25 to +60 °C. Country of origin: Germany.

Manufacturer part number (MPN)

3RS7002-1CE00

EAN / GTIN

4047621001036

Sales unit

pcs

Voltage

24 V

Rated supply voltage AC

24 V

Rated operating frequency

50–60 Hz

Rated supply voltage DC

24 V

Number of input ranges 0 mA ... 20 mA

1

Number of output ranges 0 mA ... 20 mA

1

Number of channels

1

Malfunction message output

No

Galvanic separation between inputs

No

Galvanic separation between input and output

Yes

Galvanic separation between output to output

No

SIL according to IEC 61508

None

Height

93 mm

Width

6.2 mm

Depth

72.5 mm

Power consumption

0.29 W

Load

500 Ohm

Load influence

0 %

Operating temperature

-25–60 °C

Temperature drift

0.015 %/K

Construction type of device

Built-in device

Type of electric connection

Screw connection

Mounting method

Snap mounting support rail

Degree of protection (IP)

IP20

Device construction

Built-in device

Country of origin

Germany

HS Code

8538.90

• EAN 4047621001036
• SAP 1000790522
• Code 81402331
