Siemens 3RS70001DE00 Signal Converter 24 V AC/DC 3-Way Isolation 0-10 V to 4-20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS70001DE00 is a signal converter with 24 V AC/DC supply and 3-way isolation between input, output and supply. It accepts a 0-10 V analogue input and delivers a 4-20 mA current-loop output for connection between field devices and PLC systems. Screw-connection built-in device for DIN-rail mounting, IP20 rated.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS70001DE00
- EAN / GTIN
- 4047621001012
- Sales unit
- pcs
- Voltage
- 24 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 6.2 mm
- Depth
- 72.5 mm
- Power consumption
- 0.29 W
- Load
- 500 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Screw connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001012
- SAP 1000790517
- Code 81401914
Product Documentation
More from Siemens
Siemens
Siemens 3VA12, 36KA, 3-Pole, TM240, IN=160A,IR=112A
3VA1216-4EF32-0AA0
Siemens
Siemens SENTRON 5SY7463-7 Miniature Circuit Breaker 4-Pole C63A 15KA
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC14-0UF0
Siemens

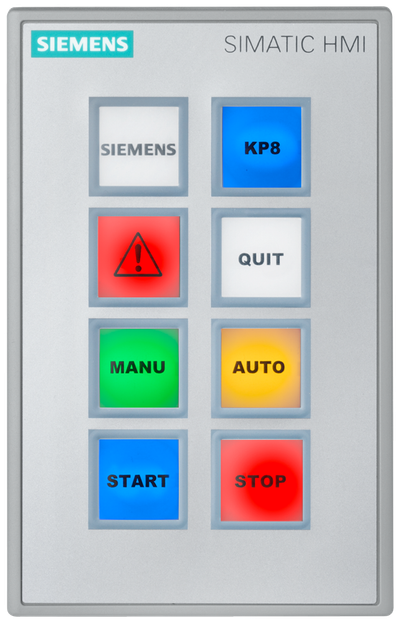

Siemens Push-button panel with 8 buttons
6AV3688-3AY36-0AX0
Siemens

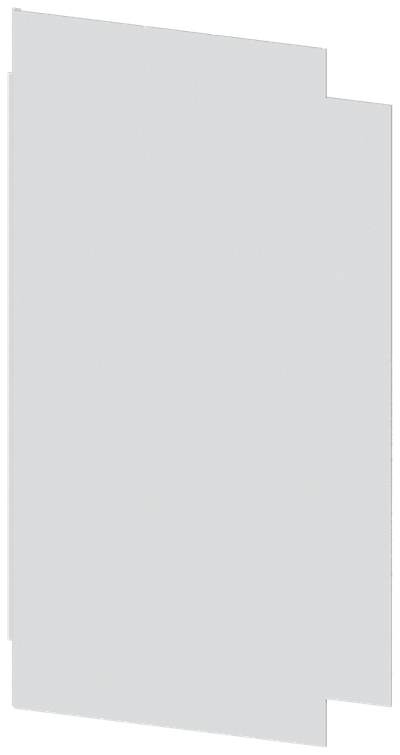

Siemens Alpha 400/630 Din, Partition Horizontal,H=250
8GK9103-0KK10
Siemens
Siemens DIN RAILS 750mm 10 pcs
8GK9910-1KK30
Siemens

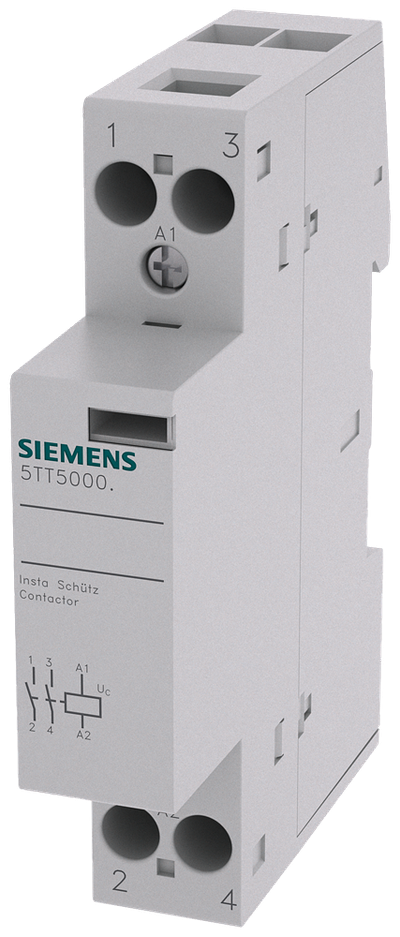

Siemens Contactor with 2 NO contacts, 230/400VAC 20A, coil voltage AC230V DC220V
5TT5000-0
Siemens

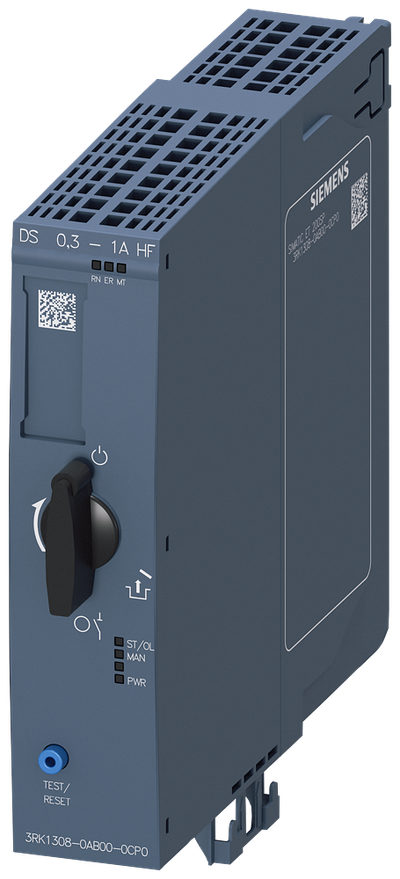

Siemens SIRIUS AS-Interface module 3RK1308-0AB00-0CP0
