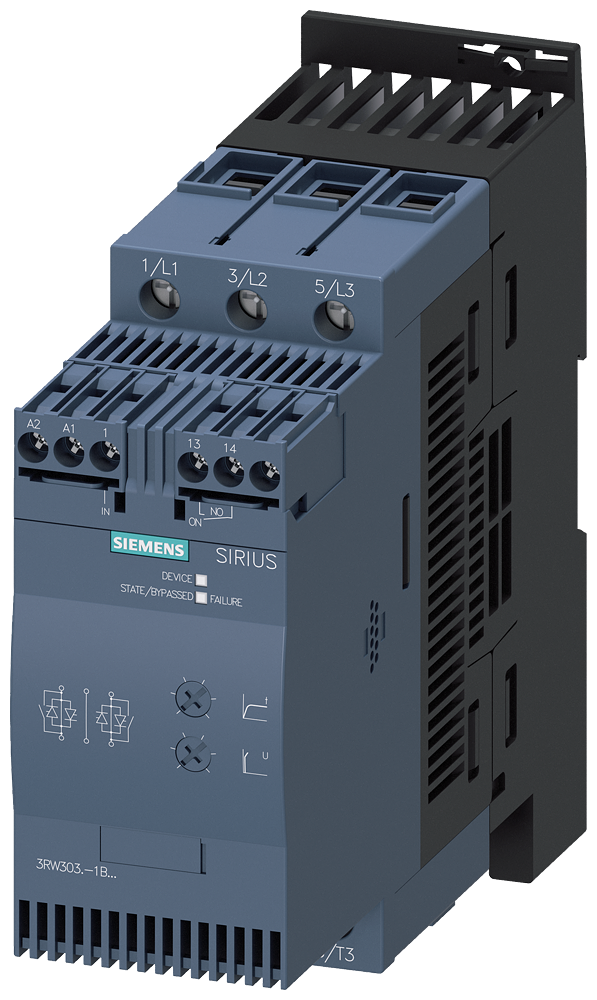

Siemens SIRIUS 3RW soft starter 3RW3036-1BB04

Siemens 3RW3036-1BB04 — SIRIUS 3RW soft starter. Motor soft starter with controlled voltage ramp for reduced-inrush motor start. Mykst.45A 200-480V AC 24V Ac/Dc.

Manufacturer part number (MPN)

3RW3036-1BB04 EAN / GTIN: 4011209719262 Sales unit: pcs Product brand name: SIRIUS Product designation: Soft starter Product feature — integrated bypass contact system: Yes Product feature — thyristors: Yes Product function — motor overload protection: No Product function — adjustable current limitation: No Product function — inside-delta circuit: No Insulation voltage rated value: 600 V Degree of pollution: 3, acc. to IEC 60947-4-2 Blocking voltage of the thyristor maximum: 1 600 V Operational current — at 40 °C rated value: 45 A Operational current — at 50 °C rated value: 42 A Operational current — at 60 °C rated value: 39 A Yielded mechanical performance for 3-phase motors — at 230 V at standard circuit at 40 °C rated value: 11 kW Yielded mechanical performance for 3-phase motors — at 400 V at standard circuit at 40 °C rated value: 22 kW Yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value: 10 hp Operating frequency rated value: 50 ... 60 Hz Operating voltage at standard circuit rated value: 200 ... 480 V minimum load [%]: 10 % Continuous operating current [% of Ie] at 40 °C: 115 % Power loss [W] at operational current at 40 °C during operation typical: 6 W Type of voltage of the control supply voltage: AC/DC Control supply voltage frequency 1 rated value: 50 Hz Control supply voltage frequency 2 rated value: 60 Hz Control supply voltage 1 at AC — at 50 Hz rated value: 24 V Control supply voltage 1 at AC — at 60 Hz rated value: 24 V Control supply voltage 1 at DC rated value: 24 V Display version for fault signal: red Size of engine control device: S2 Mechanical data — width: 55 mm Mechanical data — height: 160 mm Mechanical data — depth: 170 mm Fastening method: screw and snap-on mounting Mounting position: With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back Required spacing with side-by-side mounting — upwards: 60 mm Required spacing with side-by-side mounting — at the side: 30 mm Required spacing with side-by-side mounting — downwards: 40 mm Wire length maximum: 300 m Number of poles for main current circuit: 3 Type of electrical connection — for main current circuit: screw-type terminals Type of electrical connection — for auxiliary and control circuit: screw-type terminals Number of NC contacts for auxiliary contacts: 0 Number of NO contacts for auxiliary contacts: 1 Type of connectable conductor cross-sections for main contacts for box terminal using the front clamping point — solid: 2x (1.5 ... 16 mm²) Type of connectable conductor cross-sections for auxiliary contacts — solid: 2x (0.5 ... 2.5 mm²) Type of connectable conductor cross-sections for auxiliary contacts — finely stranded with core end processing: 2x (0.5 ... 1.5 mm²) Installation altitude at height above sea level: 5 000 m Ambient temperature — during operation: -25 ... +60 °C Ambient temperature — during storage: -40 ... +80 °C Derating temperature: 40 °C Protection class IP on the front according to IEC 60529: IP20 Touch protection on the front according to IEC 60529: finger-safe, for vertical contact from the front Yielded mechanical performance [hp] for 3-phase AC motor — at 220/230 V at standard circuit at 50 °C rated value: 15 hp Yielded mechanical performance [hp] for 3-phase AC motor — at 460/480 V at standard circuit at 50 °C rated value: 30 hp Contact rating of auxiliary contacts according to UL: B300 / R300 Function: Single direction With display: No Degree of protection (IP): IP00 Rated operation current Ie at 40 °C Tu: 45 A Rated power three-phase motor, inline, at 230 V: 11 kW Rated power three-phase motor, inline, at 400 V: 22 kW Rated surrounding temperature without derating: 40 °C Voltage type for actuating: AC/DC Internal bypass: Yes Torque control: No Country of origin: Germany

HS Code

8536.50

• EAN 4011209719262
• SAP 1000097772
