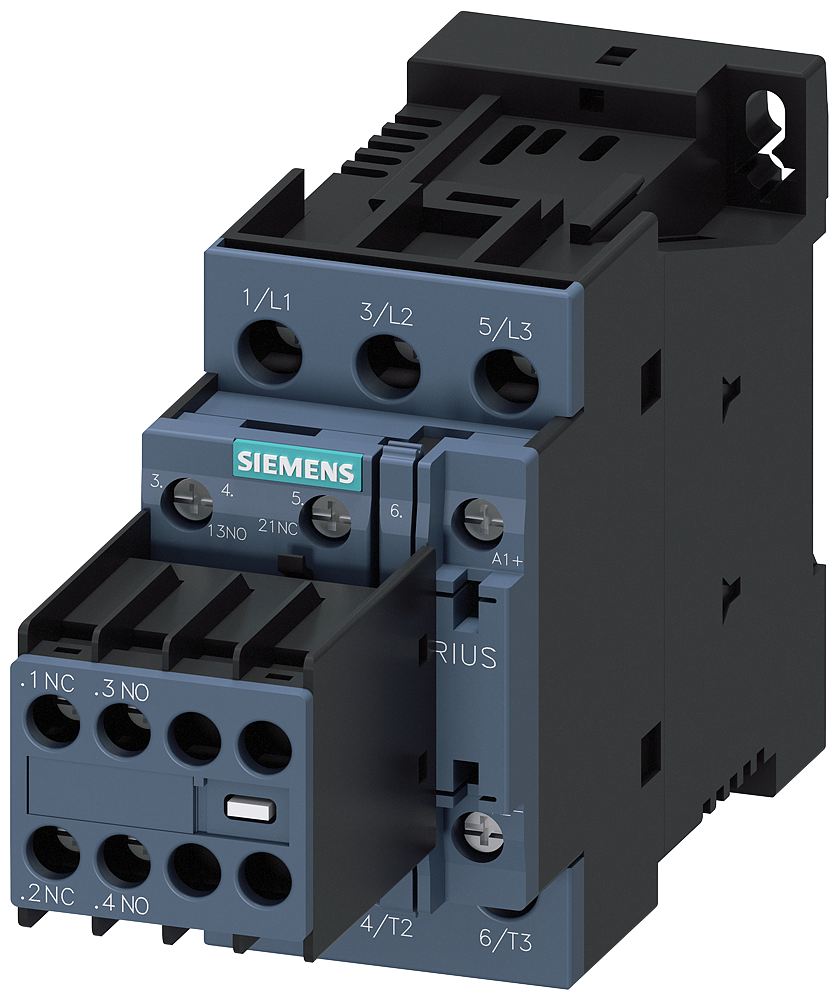

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-1BB44
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2027-1BB44 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 32A, 24V DC 2NO+2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2027-1BB44
- EAN / GTIN
- 4011209837690
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 151 mm
- Rated operation power at AC-3, 400 V
- 15 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 32 A
- Rated operation current Ie at AC-1, 400 V
- 50 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 22 A
- Rated operation power at AC-4, 400 V
- 11 kW
- Rated operation power NEMA
- 20 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209837690
- SAP 1000097747
- Code 8591510
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA25_4P_110KA_ETU320,LI PROTECTION, IN=800A, IR=320A-800A, Tr=0,5-17 sek, II=1,5-10XIN, bolt
3VA2580-7HL42-0AA0
Siemens
Siemens 5TE8111
Siemens
Siemens Screw Fuse- 690V for Cable and Line protection Utilisation Category Gg Size Diii, E33, 2A
5SD8002
Siemens
Siemens Alpha 630 Din, Set for Wattage Circuit breaker 3/4 Pole, 3VL630, H=600 B=500
8GK4704-4KK13
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0HH10-0AA0
Siemens

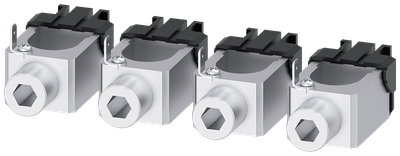

Siemens SENTRON 3VA9254-0JG12 — Cu/Al box terminal, 35–185 mm², 3VA12
Siemens

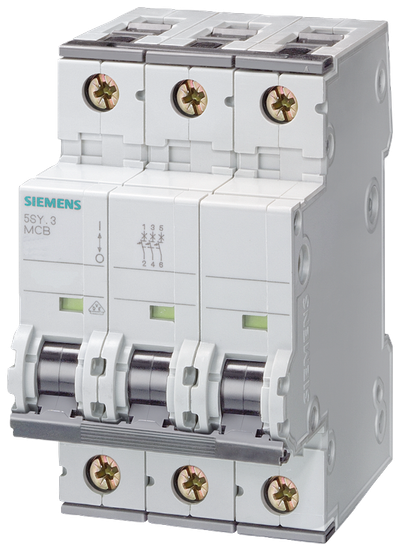

Siemens SENTRON 5SY7363-6 Miniature Circuit Breaker 3-Pole B63A 15KA
Siemens

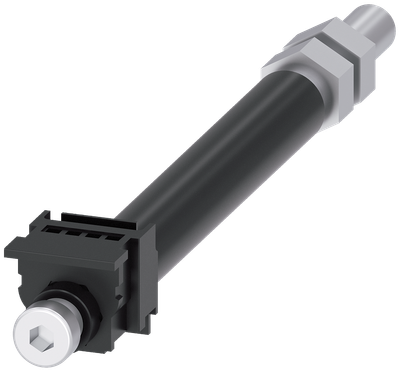

Siemens SENTRON 3VA9111-0QF20 — Rear connection terminal, long, 3VA10 / 3VA11
