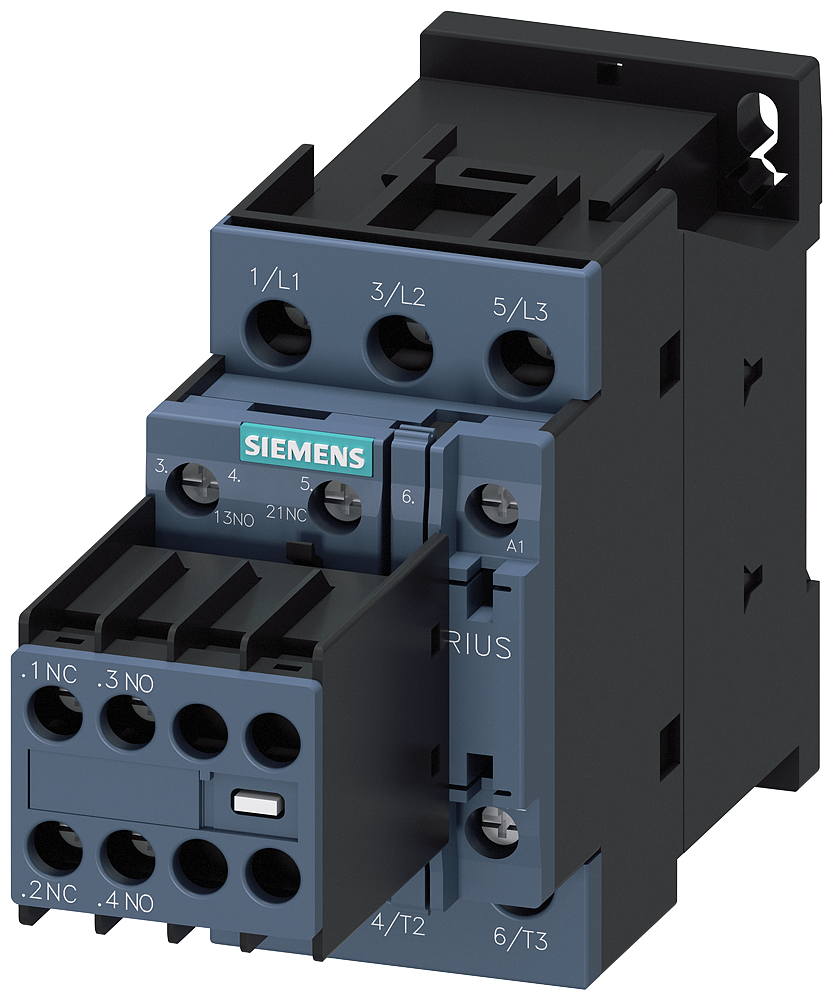

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2024-1AB04
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2024-1AB04 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 12,5A, 24V AC 2NO+2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2024-1AB04
- EAN / GTIN
- 4011209836983
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 141 mm
- Suitable for distribution board
- Yes
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 12 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Rated control supply voltage AC 50 Hz
- 24 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 12.5 A
- Rated operation power at AC-4, 400 V
- 5.5 kW
- Rated operation power NEMA
- 8 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209836983
- SAP 1000097721
- Code 8939619
Product Documentation
More from Siemens
Siemens
Siemens S6 contactor, 275A/AC-1 at 40 degrees 3RT1456-6NF36
Siemens
Siemens Side Strip plinth IP4X H150/B600
8PQ2000-6BA07
Siemens
Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6NB36
Siemens
Siemens S12 contactor, 200KW/400V/AC-3 3RT1075-6PF35
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.14...0.20 A 230 V AC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-0BA15-2AP0
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 10.0...16.0 A 230 V AC Spring-type terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
3RA2210-4AE18-2AP0
Siemens
Siemens 3RV2902-2DB0 Shunt Release AC/DC 20-70 V with Spring-Clamp Terminals
Siemens

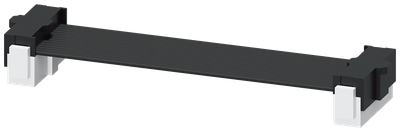

Siemens 3RA2711-0EE02 14-Pin Ribbon Cable Connector 8 cm
