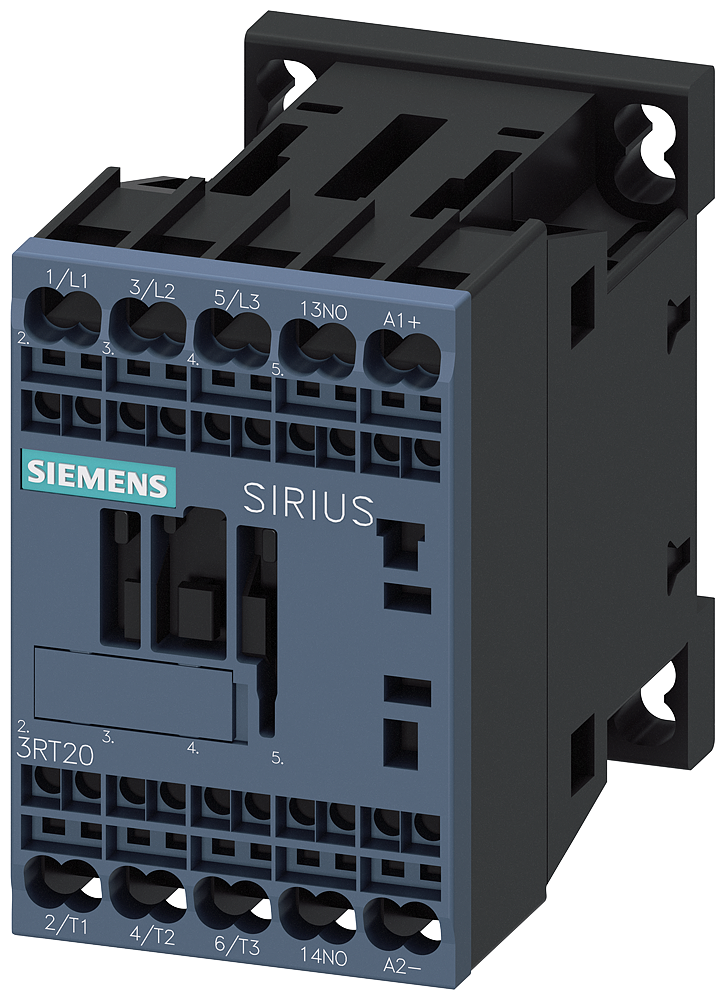

Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2015-2BB41
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2015-2BB41 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Contactor 8A, 24V DC 1NO Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2015-2BB41
- EAN / GTIN
- 4011209785243
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 70 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 3 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 7 A
- Rated operation current Ie at AC-1, 400 V
- 18 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 6.5 A
- Rated operation power at AC-4, 400 V
- 3 kW
- Rated operation power NEMA
- 3 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209785243
- SAP 1000097682
- Code 8939547
Product Documentation
More from Siemens
Siemens
Siemens OLM/G12-1300 V4
6GK1503-3CC00
Siemens
Siemens LED light 5W,24-48VDC, SWITCH OF/ON 8MR2201-1A
Siemens
Siemens Load-break switch 16A,size 1, frame terminal for Cu cable,3-Pole,operation side left-hand
3KD1634-2ME10-0
Siemens
Siemens 3SU1102-0AB60-1BA0 SIRIUS ACT Illuminated Pushbutton 22 mm White 1 NO 24 V
Siemens
Siemens SIRIUS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 4.50...6.30 A 24 V DC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NO (contactor)
3RA2110-1GA15-1BB4
Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, Enclosure top part yellow, 1 control point metal, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, Control point in center, 1 NC, screw terminal, floor mounting, 1XM20 each on top and bottom
3SU1851-0NA00-2AA2
Siemens
Siemens SENTRON 5SY5113-6 Miniature Circuit Breaker 1-Pole B13A 10KA
Siemens
Siemens SIRIUS Motor protection circuit breaker,28 3RV2031-4PA15
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2015-2BB41?
- 3RT2015-2BB41 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2015-2BB41.
- What is the HS code for 3RT2015-2BB41?
- The customs tariff (HS) code for 3RT2015-2BB41 is 8536.90.
- Who manufactures 3RT2015-2BB41?
- 3RT2015-2BB41 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2015-2BB41?
- Yes — the 3RT2015-2BB41 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2015-2BB41?
- The minimum order quantity is 1.
- Is 3RT2015-2BB41 available?
- Yes — 3RT2015-2BB41 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
