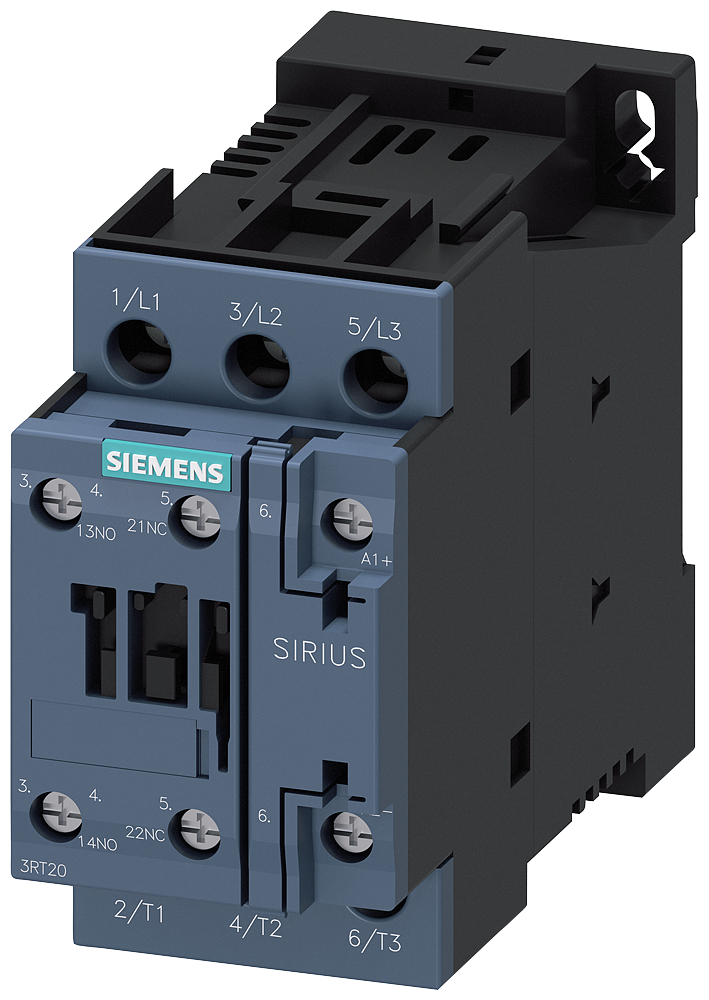

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2028-1NP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2028-1NP30 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Kon18.5KW,1NO 1NC UC 200-280V S0.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2028-1NP30
- EAN / GTIN
- 4011209833784
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 107 mm
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 38 A
- Rated operation current Ie at AC-1, 400 V
- 50 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 22 A
- Rated operation power at AC-4, 400 V
- 11 kW
- Rated operation power NEMA
- 25 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209833784
- SAP 1000287246
- Code 8294892
