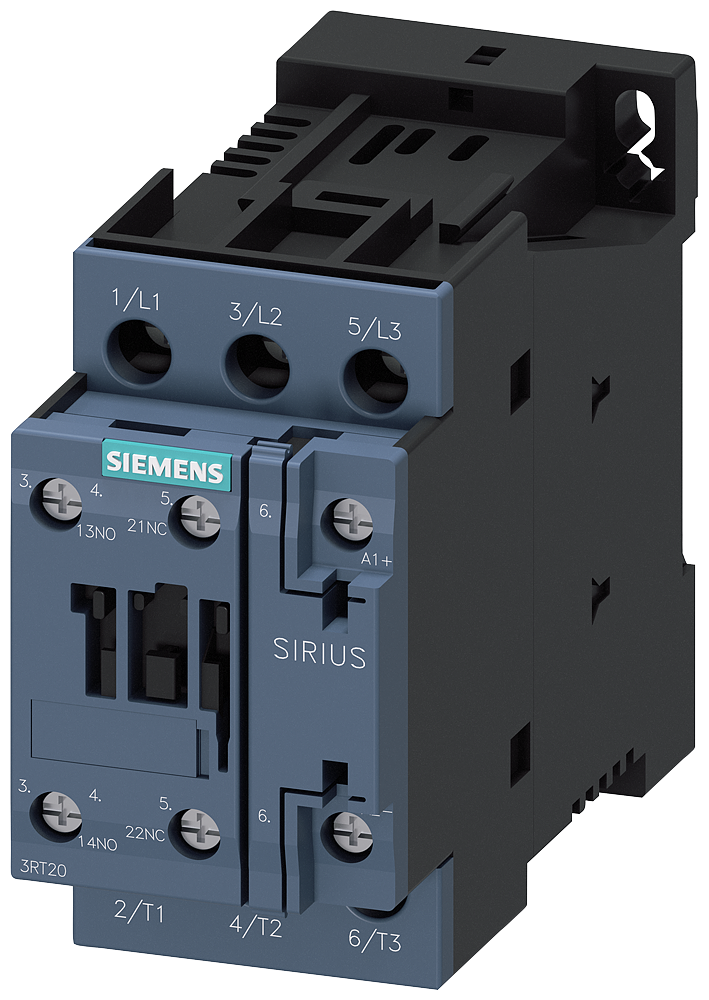

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-1NP30

Siemens 3RT2027-1NP30 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 15KW,1NO 1NC, UC 200-280V S0.

Manufacturer part number (MPN)

3RT2027-1NP30

EAN / GTIN

4011209833333

HS code

8536.90

Sales unit

pcs

Frame size

S0

Width

45 mm

Height

85 mm

Depth

107 mm

Suitable for distribution board

Yes

Rated operation power at AC-3, 400 V

15 kW

Number of normally open contacts as main contact

3

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated operation current Ie at AC-3, 400 V

32 A

Rated operation current Ie at AC-1, 400 V

50 A

Rated control supply voltage AC 50 Hz

200–280 V

Rated control supply voltage AC 60 Hz

200–280 V

Rated control supply voltage DC

200–280 V

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Voltage type for actuating

AC/DC

Rated operation current Ie at AC-4, 400 V

22 A

Rated operation power at AC-4, 400 V

11 kW

Rated operation power NEMA

20 kW

Country of origin

Germany

HS Code

8536.90

• EAN 4011209833333
• SAP 1000271025
• Code 81165270
