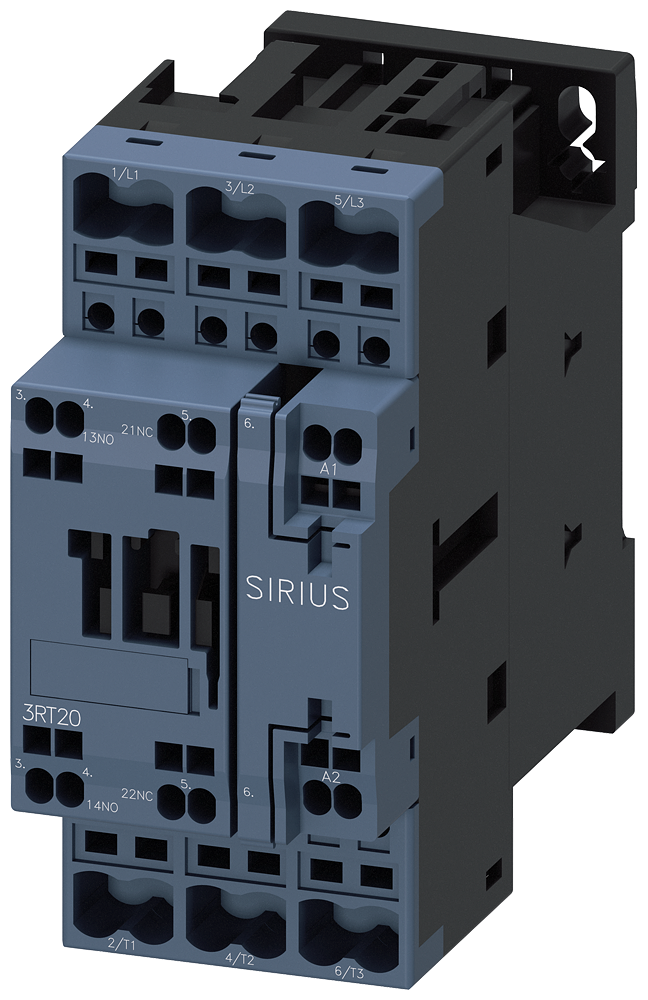

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-2AF00
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2025-2AF00 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 7.5KW,1NO+1NC, AC110V S0 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2025-2AF00
- EAN / GTIN
- 4011209832503
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 102 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 17 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209832503
- SAP 1000270892
- Code 8762386
Product Documentation
More from Siemens
Siemens
Siemens Accessory for 3KD,ST5, contact element, flat terminal
3KD9505-0
Siemens
Siemens Alpha 400/630 Din Set, mounting Plate Blanking cover H=600 B=750
8GK4451-4KK32
Siemens
Siemens Load-break switch 160A,size 2,4-Pole,operation side left-hand,box terminal for Cu cable
3KD34442NE100
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU10503AB660AL0
Siemens
Siemens Load-break switch 315A,size 3,3-Pole,operation side left-hand,bolt
3KD4034-0PE10-0
Siemens
Siemens SENTRON 3VA9267-0PK15 — Side-wall rotary operating mechanism, 3VA20 / 3VA21 / 3VA22
Siemens

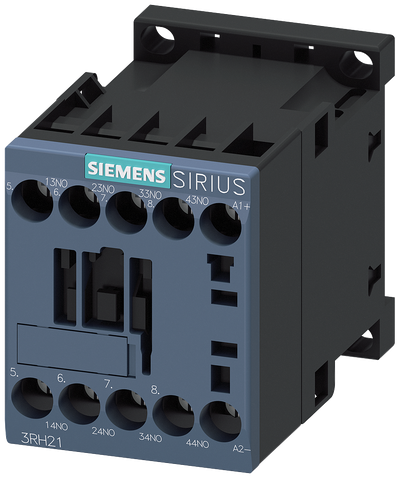

Siemens Contactor Relay, 4NO, DC 220V, Size S00, Screw Terminal Connection
3RH2140-1BM40
Siemens

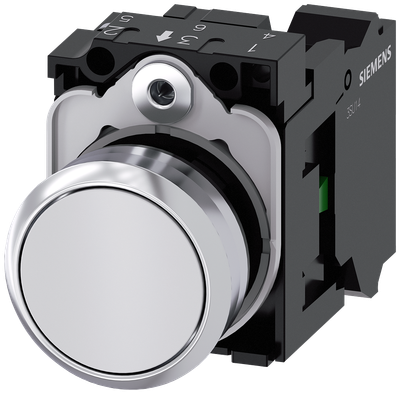

Siemens SIRIUS Metal Pushbutton, White, 1 NO, Spring Terminal
