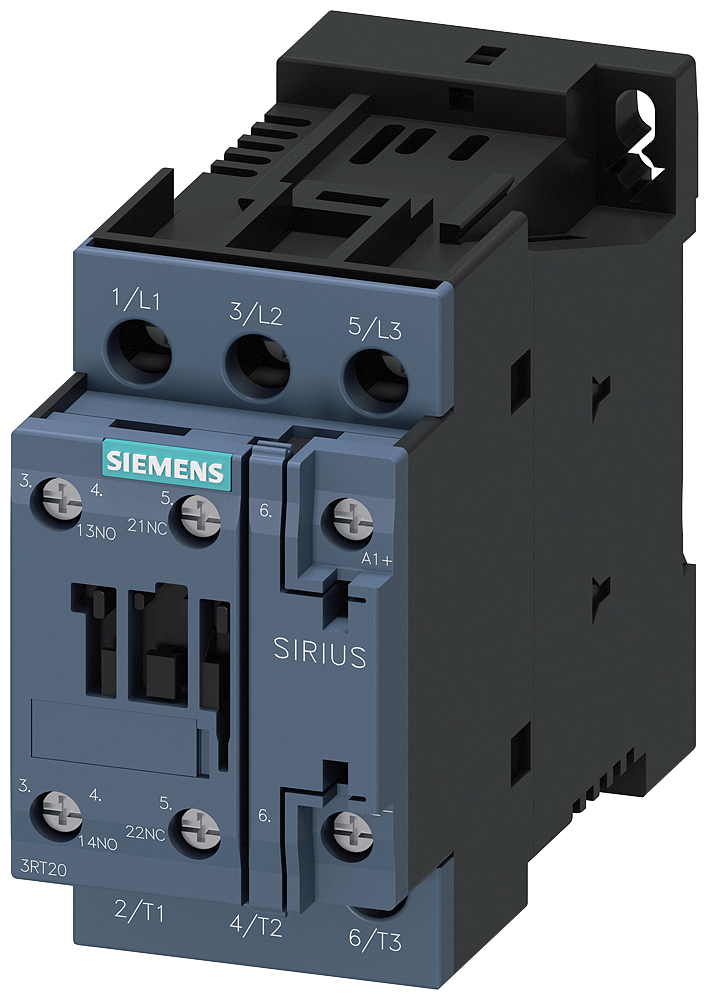

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-1KB40
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2025-1KB40 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Relay7.5KW,1NO 1NC,24V DC, with varistor S0.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2025-1KB40
- EAN / GTIN
- 4011209832404
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 107 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 17 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209832404
- SAP 1000270885
- Code 8762367
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA22_4P_55KA_ETU550,LSI,IN=250A,IR=100A-250A,ISD=0,6-10XIN,II=1,5-10XIN,B
3VA2225-5JP42-0AA0
Siemens
Siemens Circuit breaker for transformer 0 3RV2411-0CA20
Siemens
Siemens 3VA11, 55KA, 4-Pole, TM240, IN=100A,IR=70A 3VA1110-5GF42-0AA0
Siemens
Siemens NH000 3-Phase busbar for 2X NH000
3NP19231BF20
Siemens
Siemens Residual current circuit breaker, 2-Pole, type A, In: 25 A, 100 mA, Un AC: 230 V
5SV3412-6
Siemens
Siemens Alpha Din, Rail Bracket for Deep mounting of Din Rails (1 Set = 2 Units)
8GK9910-0KK34
Siemens

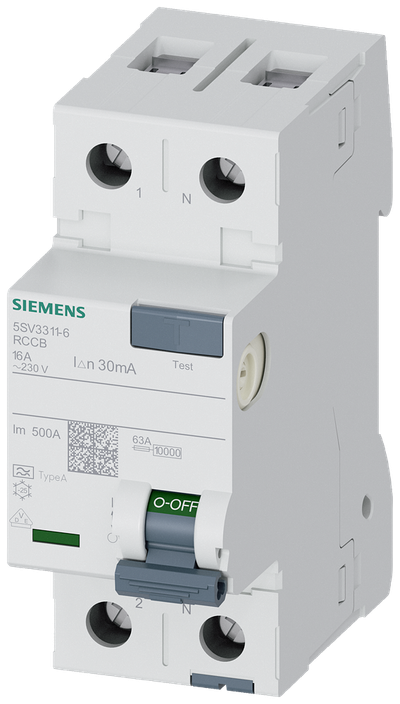

Siemens Residual current circuit breaker, 2-Pole, type A, In: 16 A, 30 mA, Un AC: 230 V
5SV3311-6
Siemens

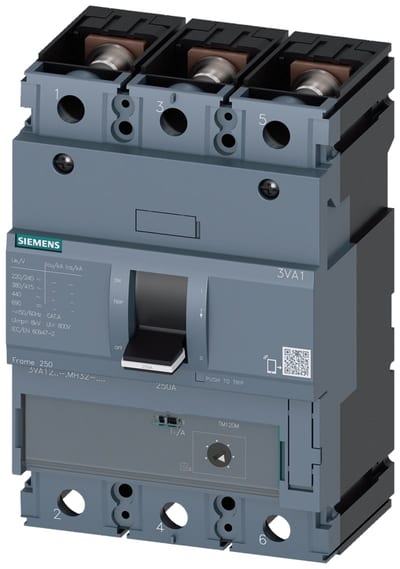

Siemens Circuit breaker 3VA1, starter protection with adjustable Ii=7 for 16 X IN, 160A, 3P, TM120M, 70KA, BOLT
