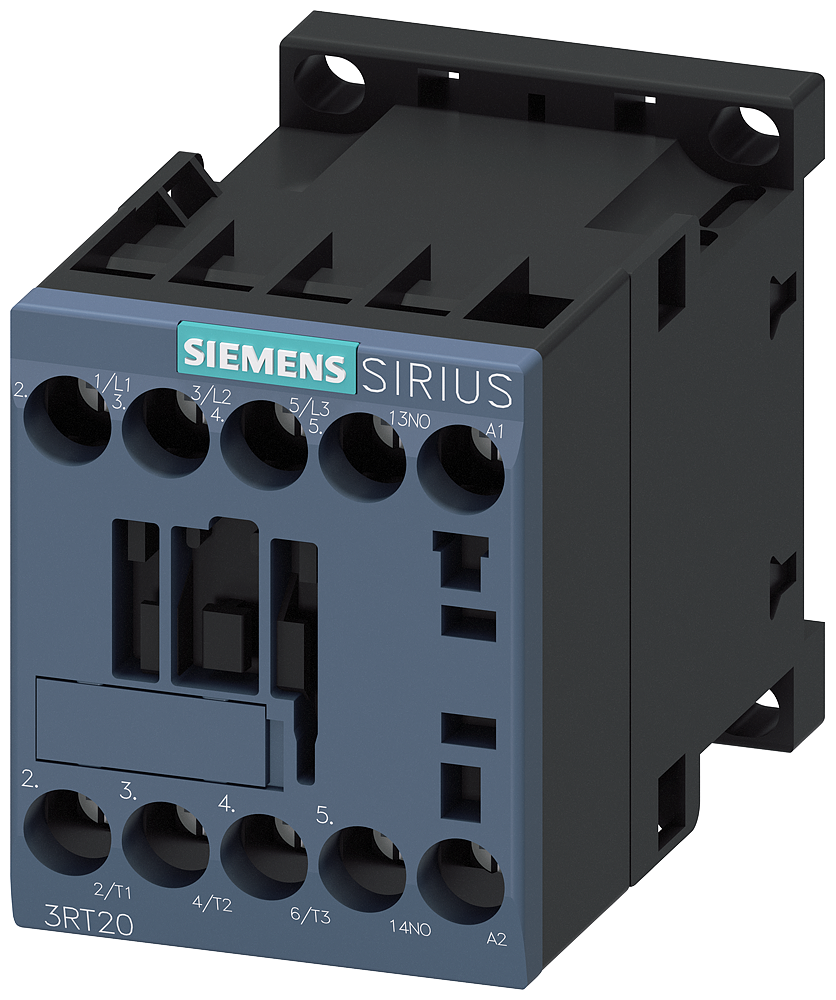

Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2016-1AF01
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2016-1AF01 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Contactor 4KW,1NO, AC110V50/60Hz S00.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2016-1AF01
- EAN / GTIN
- 4011209827448
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 58 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 4 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 9 A
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 8.5 A
- Rated operation power at AC-4, 400 V
- 4 kW
- Rated operation power NEMA
- 5 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209827448
- SAP 1000270464
- Code 81293020
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AD16-0QG0
Siemens
Siemens 3VA11, 25KA, 4-Pole, TM240, IN=32A,IR=22,4A 3VA1132-3GF42-0AA0
Siemens
Siemens Load-break switch 1000A,size 5,4-Pole,operation side left-hand,bolt
3KD5044-0RE10-0
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 800 mm, W: 300 mm, D: 210 mm, RAL 9016
8GK1132-3KA12
Siemens
Siemens Load-break switch 160A,size 2,3-Pole,operation side right-hand,box terminal for Cu cable
3KD3434-2NE40-0
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2017-2BB42
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD5040-0RE10-0, 1000 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens MCCB_3VA25_4P_110KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10XIR, II=10XIN, bolt
3VA2510-7HN42-0AA0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2016-1AF01?
- 3RT2016-1AF01 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2016-1AF01.
- What is the HS code for 3RT2016-1AF01?
- The customs tariff (HS) code for 3RT2016-1AF01 is 8536.90.
- Who manufactures 3RT2016-1AF01?
- 3RT2016-1AF01 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2016-1AF01?
- Yes — the 3RT2016-1AF01 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2016-1AF01?
- The minimum order quantity is 1.
- Is 3RT2016-1AF01 available?
- Yes — 3RT2016-1AF01 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
