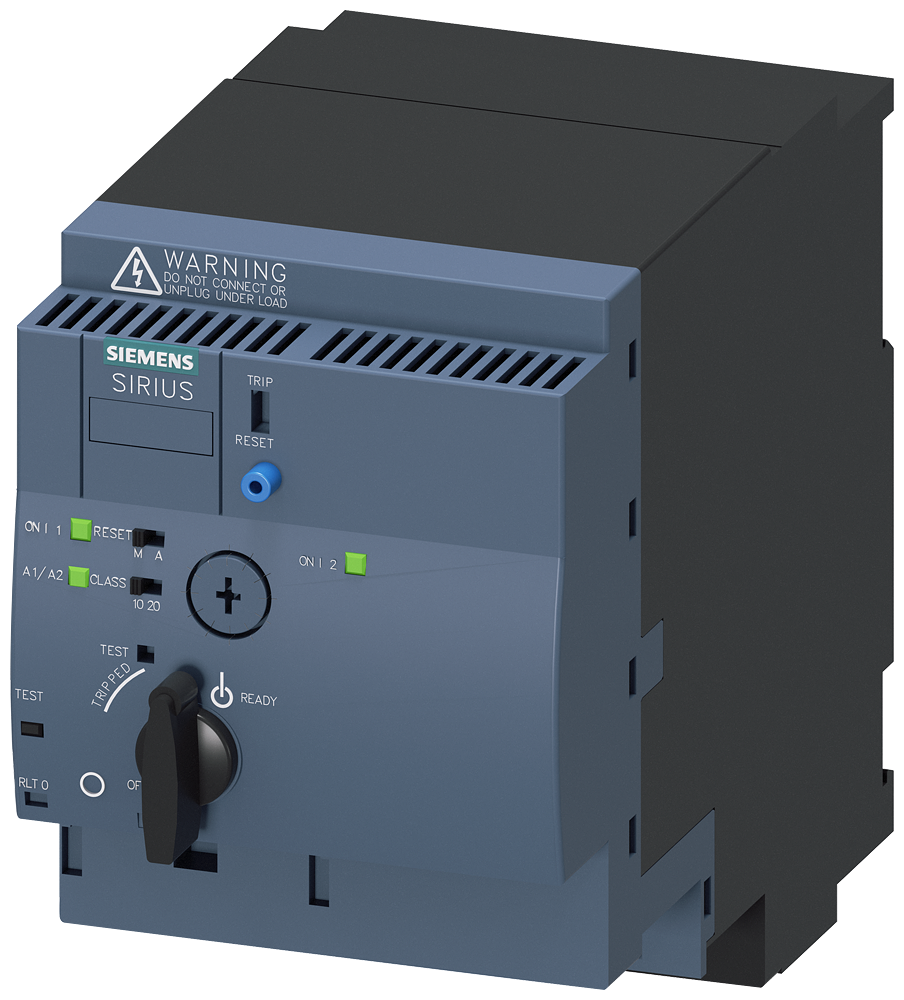

Siemens Compact Start Reversing Starter 3RA6250-0DB30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA6250-0DB30 Compact Start Reversing Starter.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA6250-0DB30
- EAN / GTIN
- 4011209778467
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 170 mm
- Depth
- 165 mm
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Number of command positions
- 2
- Number of auxiliary contacts as normally open contact
- 2
- Suitable for emergency stop
- No
- Rated operation current Ie
- 12 A
- Number of indicator lights
- 3
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Type of motor starter
- Reversing starter
- Rated operation power at AC-3, 230 V, 3-phase
- 3000 kW
- Rated operation current at AC-3, 400 V
- 12 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209778467
- SAP 1000084941
- Code 8872634
Product Documentation
More from Siemens
Siemens

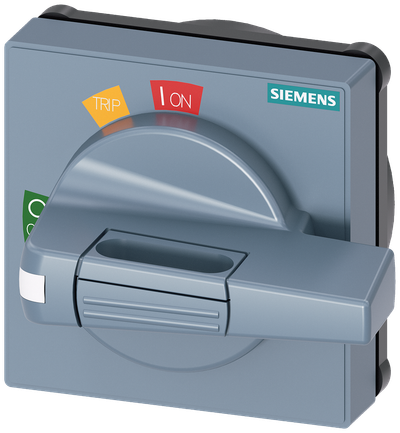

Siemens Rotary control grey 3VA23-24 normal
8UD1731-0AB11
Siemens

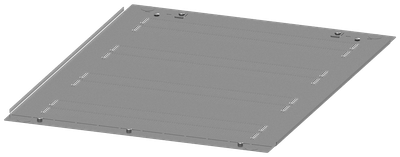

Siemens Top plate without cable entry 8PQ2306-8BA02
Siemens

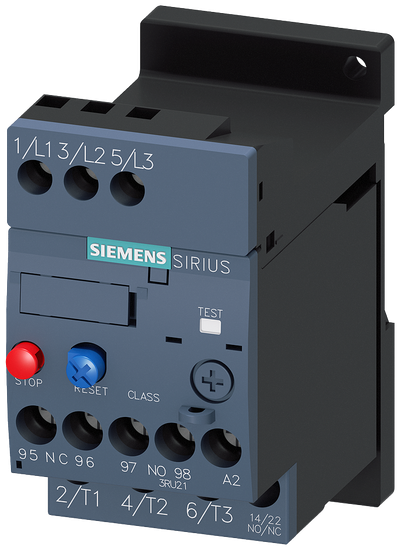

Siemens Thermal Overload Relay, 9,0-12,5 A, Screw Connection, Separate Mounting
3RU2116-1KB1
Siemens

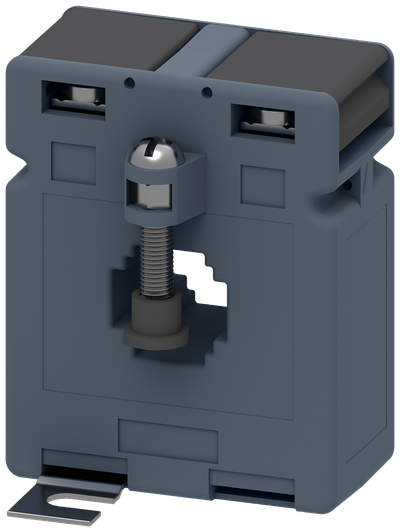

Siemens Current transformer 75/5A, 2,5VA K1,0
4NC51152CC21
Siemens

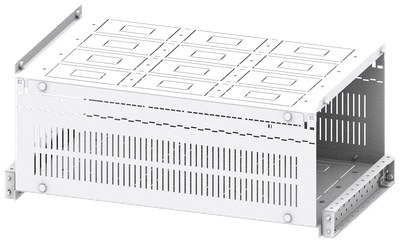

Siemens Formplate 2B for h 8PQ3000-0BA80
Siemens

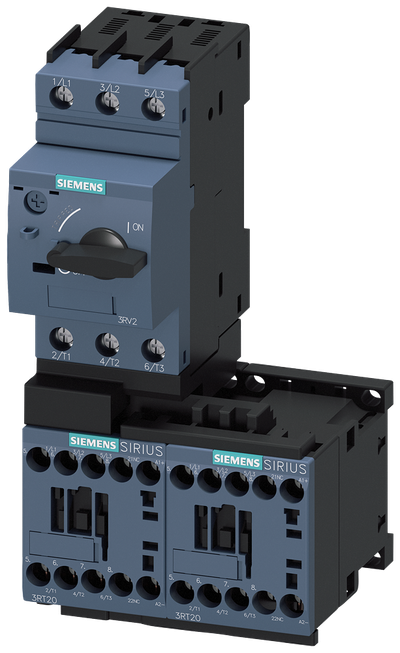

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 7.00...10.0 A 24 V DC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
3RA2210-1JA16-2BB4
Siemens

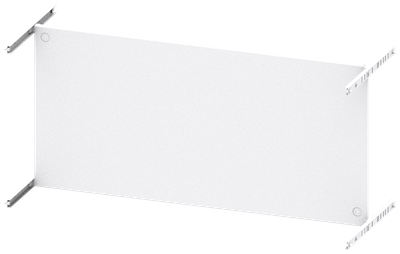

Siemens Mounting plate whole H450/B1000
8PQ3000-1BA73
Siemens

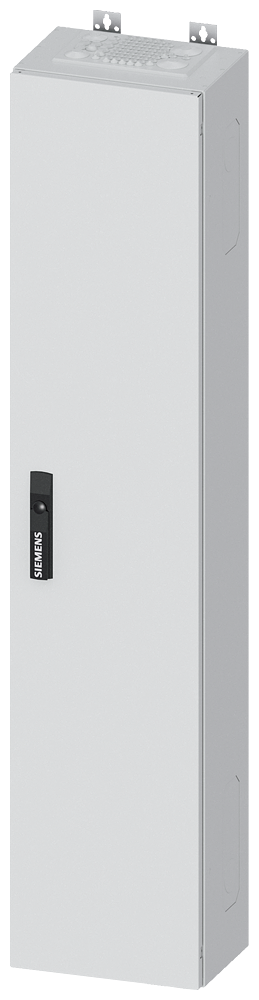

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1400 mm, W: 300 mm, D: 210 mm, RAL 9016
