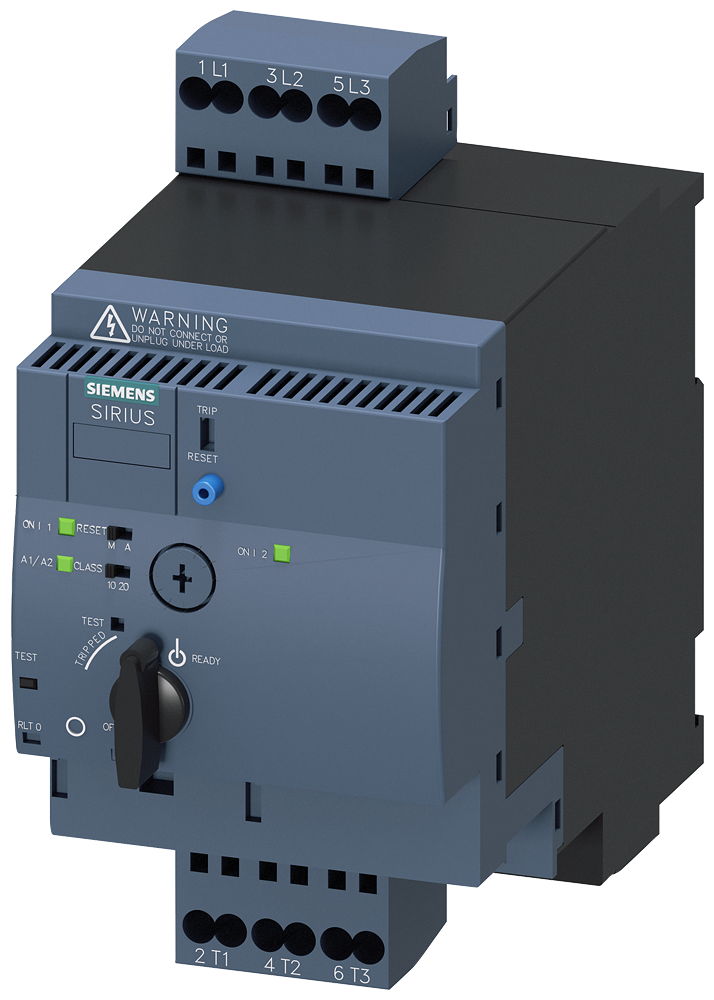

Siemens Reversing Starter, 1 - 4 A, 90 mm Wide, Spring Clamp Connection (3RA6250-2CB34)

Siemens 3RA6250-2CB34 Compact Start Reversing Starter.

Manufacturer part number (MPN)

3RA6250-2CB34

EAN / GTIN

4011209715417

Sales unit

pcs

Width

90 mm

Height

191 mm

Depth

165 mm

Rated operation power at AC-3, 400 V

1.5 kW

Number of command positions

2

Number of auxiliary contacts as normally open contact

2

Suitable for emergency stop

No

Rated operation current Ie

4 A

Number of indicator lights

3

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

Yes

Degree of protection (IP)

IP20

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

Adjustable

Type of electrical connection of main circuit

Spring clamp connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

AC/DC

Type of motor starter

Reversing starter

Rated operation current at AC-3, 400 V

4 A

Ambient temperature, upper operating limit

60 °C

Temperature compensated overload protection

No

Coordination class according to IEC 60947-4-3

Class 2

Country of origin

Germany

HS Code

8536.49

• EAN 4011209715417
• SAP 1000022101
• Code 8179862
