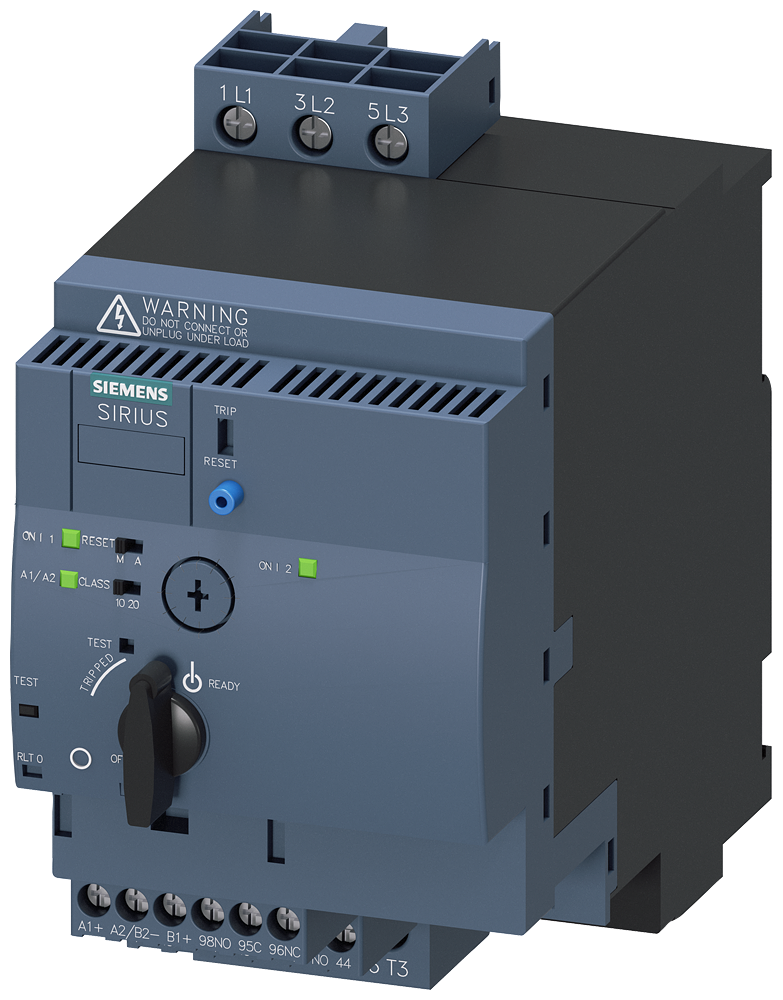

Siemens Reversing Starter, 0,1 - 0,4 A, 90 mm Wide, Screw Connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA6250-1AB32 Compact Start Reversing Starter.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA6250-1AB32
- EAN / GTIN
- 4011209714953
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 170 mm
- Depth
- 165 mm
- With transformer
- No
- Rated operation power at AC-3, 400 V
- 0.09 kW
- Number of command positions
- 2
- Number of auxiliary contacts as normally open contact
- 2
- Suitable for emergency stop
- No
- Rated operation current Ie
- 0.4 A
- Number of indicator lights
- 3
- Overload release current setting
- 0.1–0.4 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- With short-circuit release
- Yes
- With fuse
- No
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Type of motor starter
- Reversing starter
- Rated operation current at AC-3, 400 V
- 0.4 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209714953
- SAP 1000076221
- Code 8567083
Product Documentation
More from Siemens
Siemens

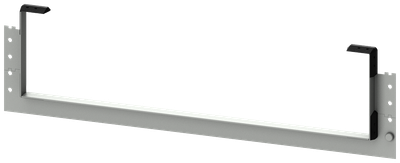

Siemens Reinforcement for baserom IP55 H150/B600
8PQ2015-6BA13
Siemens

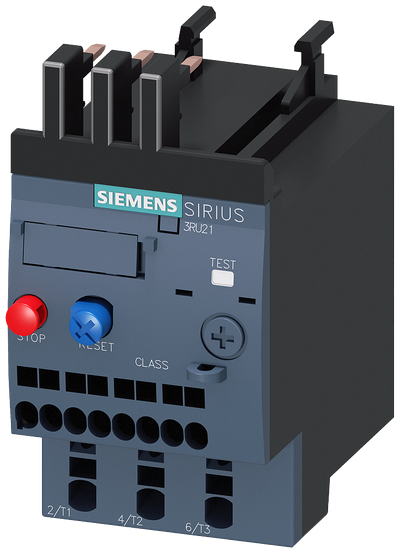

Siemens Thermal Overload Relay, 0,45-0,63 A, Spring Clamp Connection
3RU2116-0GC0
Siemens

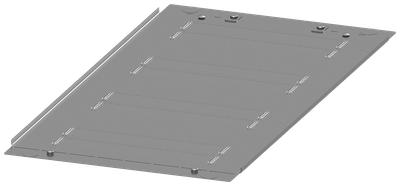

Siemens Top plate without cable entry 8PQ2304-8BA02
Siemens

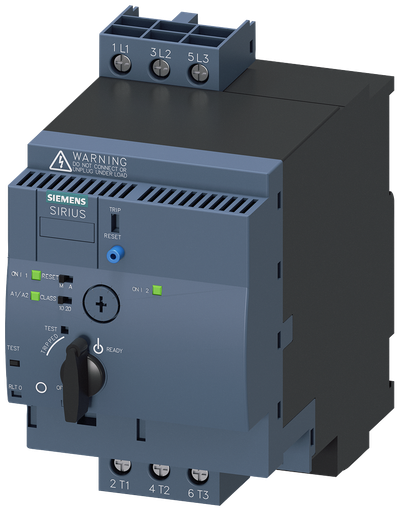

Siemens Reversing Starter, 1 - 4 A, 90 mm Wide, Screw Connection (3RA6250-1CB34)
Siemens

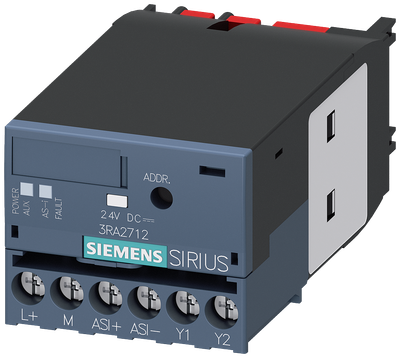

Siemens Function Module Ds As
3RA2712-1AA00
Siemens

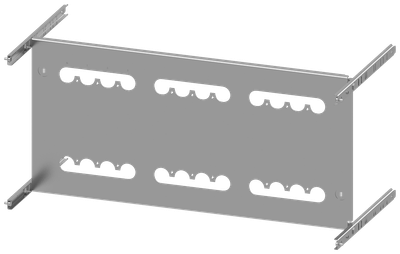

Siemens SIVACON S4 SET 3V23_24 VERTICAL 30X800
8PQ6000-8BA61
Siemens

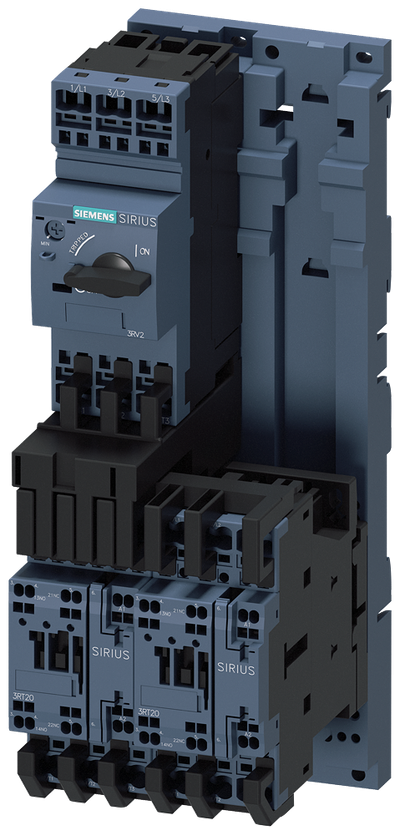

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S0 18...25 A 230 V AC Spring-type terminal for installation on standard mounting rail with standard mounting rail adapter (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)
3RA2220-4DF27-0AP0
Siemens

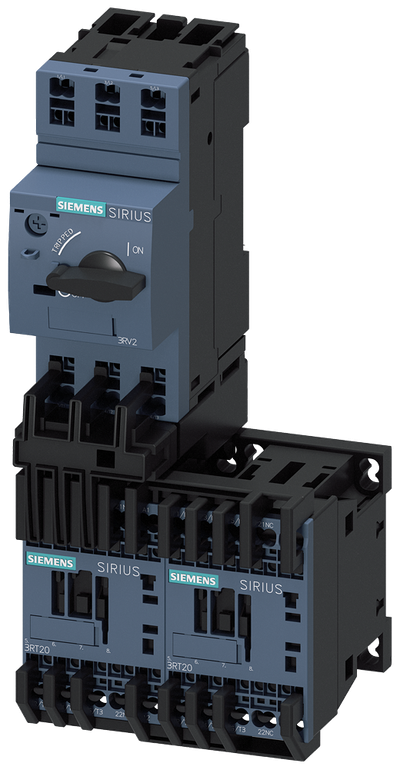

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.90...1.25 A 230 V AC Spring-type terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
