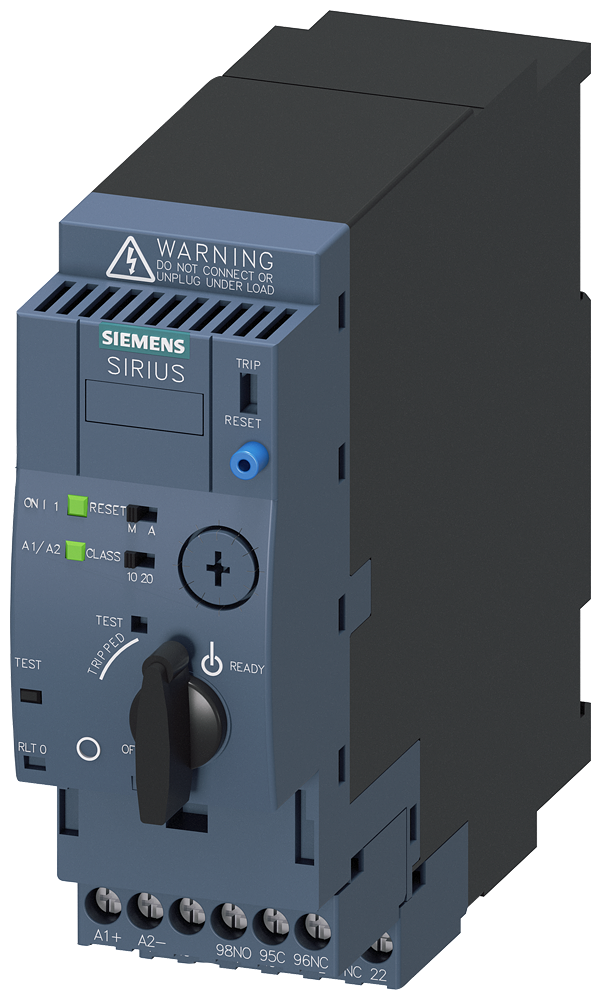

Siemens Direct Online Starter (DOL), 3-12 A, 45 mm Wide, Screw Connection (3RA6120-1DP33)
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA6120-1DP33 Compact Start Direct Online Starter (DOL).
Technical Specifications
- Manufacturer part number (MPN)
- 3RA6120-1DP33
- EAN / GTIN
- 4011209714472
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 170 mm
- Depth
- 165 mm
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Number of command positions
- 1
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 12 A
- Number of indicator lights
- 2
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Type of motor starter
- Direct online starter (DOL)
- Rated operation power at AC-3, 230 V, 3-phase
- 3000 kW
- Rated operation current at AC-3, 400 V
- 12 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209714472
- SAP 1000003214
- Code 8469707
