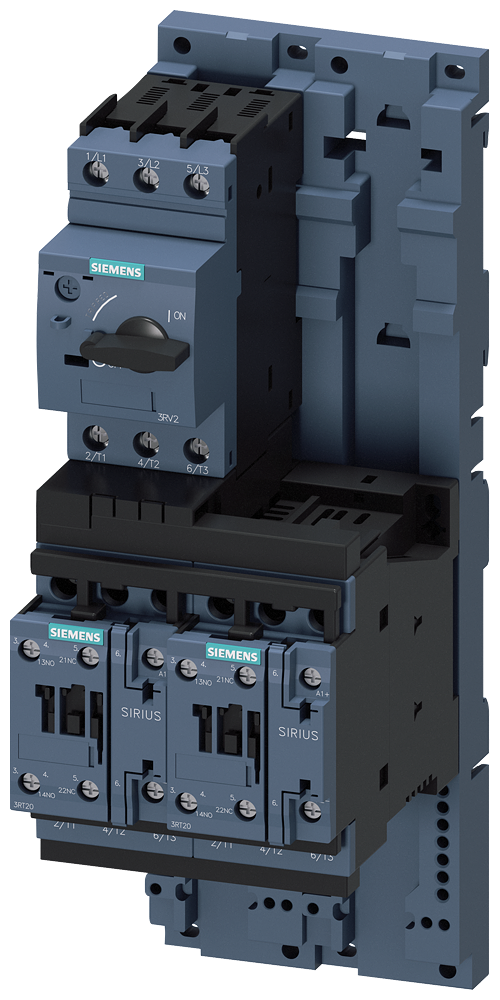

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S0 5.50...8.00 A 24 V DC screw terminal for installation on standard mounting rail with standard mounting rail adapter (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)

Siemens 3RA2220-1HB24-0BB4 Reversing switch 5,5 - 8A, Dc 24V.

Manufacturer part number (MPN)

3RA2220-1HB24-0BB4

EAN / GTIN

4011209794542

Sales unit

pcs

Voltage

24 V

Rated current

8 A

Product brand name

SIRIUS

Product designation

Reversing starter

Design of the product

for DIN-rail or screw mounting

Product type designation

3RA22

Manufacturer's article number — of the supplied contactor

3RT2024-1BB40

Manufacturer's article number — of the supplied circuit-breakers

3RV2011-1HA10

Manufacturer's article number — of the supplied RH assembly kit

3RA2923-1BB1

Manufacturer's article number — of the supplied link module

3RA2921-1BA00

Manufacturer's article number — of the supplied DIN-rail adapter

3RA2922-1AA00

Size of the circuit-breaker

S00

Size of load feeder

S0

Power loss [W] for rated value of the current — at AC in hot operating state per pole

3.4 W

Power loss [W] for rated value of the current — without load current share typical

5.9 W

Type of calculation of power loss current-dependent

quadratic

Insulation voltage with degree of pollution 3 at AC rated value

690 V

Surge voltage resistance rated value

6 kV

Degree of protection NEMA rating

other

Shock resistance according to IEC 60068-2-27

6 g / 11 ms

Mechanical service life (operating cycles) of contactor typical

10 000 000

Type of coordination

2

Reference code according to IEC 81346-2

2019: Q

Ambient temperature — during operation

-20 ... +60 °C

Ambient temperature — during storage

-50 ... +80 °C

Ambient temperature — during transport

-50 ... +80 °C

Temperature compensation

-20 ... +60 °C

Relative humidity during operation

10 ... 95 %

Number of poles for main current circuit

3

Design of the switching contact

electromechanical

Adjustable current response value current of the current-dependent overload release

5.5 ... 8 A

Operating voltage — rated value

690 V

Operating voltage — at AC-3 rated value maximum

690 V

Operating voltage — at AC-3e rated value maximum

690 V

Operating frequency rated value

50 ... 60 Hz

Operational current — at AC-3 at 400 V rated value

8 A

Operational current — at AC-3e at 400 V rated value

8 A

At AC-3 — at 400 V rated value

3 000 W

At AC-3e — at 400 V rated value

3 000 W

Type of voltage of the control supply voltage

DC

Control supply voltage at DC rated value

24 V

Holding power of magnet coil at DC

5.9 W

Product extension auxiliary switch

Yes

Trip class

CLASS 10

Design of the overload release

thermal (bimetallic)

Response value current of instantaneous short-circuit trip unit

104 A

Full-load current (FLA) for 3-phase AC motor — at 480 V rated value

8 A

Full-load current (FLA) for 3-phase AC motor — at 600 V rated value

8 A

For single-phase AC motor — at 110/120 V rated value

0.33 hp

For single-phase AC motor — at 230 V rated value

1 hp

For 3-phase AC motor — at 200/208 V rated value

2 hp

For 3-phase AC motor — at 220/230 V rated value

3 hp

For 3-phase AC motor — at 460/480 V rated value

5 hp

For 3-phase AC motor — at 575/600 V rated value

7.5 hp

Product function short circuit protection

Yes

Design of the short-circuit trip

magnetic

Conditional short-circuit current (Iq) — at 400 V according to IEC 60947-4-1 rated value

150 000 A

Mounting position

vertical

Fastening method

On adapter for screw and snap-on mounting on 35 mm DIN rail

Installation/ mounting/ dimensions — height

265 mm

Installation/ mounting/ dimensions — width

90 mm

Installation/ mounting/ dimensions — depth

130 mm

For grounded parts — forwards

32 mm

For grounded parts — backwards

0 mm

For grounded parts — upwards

50 mm

For grounded parts — at the side

10 mm

For grounded parts — downwards

10 mm

For live parts — forwards

32 mm

For live parts — backwards

0 mm

For live parts — upwards

50 mm

For live parts — downwards

10 mm

For live parts — at the side

10 mm

Type of electrical connection — for main current circuit

screw-type terminals

Type of electrical connection — for auxiliary and control circuit

screw-type terminals

Product function suitable for safety function

Yes

Touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Protocol is supported — PROFINET IO protocol

No

Protocol is supported — PROFIsafe protocol

No

Protocol is supported AS-Interface protocol

No

Width

90 mm

Height

265 mm

Depth

130 mm

Rated operation power at AC-3, 400 V

3 kW

Number of command positions

1

Suitable for emergency stop

Yes

Rated operation current Ie

6.5 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

No

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Degree of protection (IP)

IP20

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

DC

Rated operation current at AC-3, 400 V

6.5 A

Ambient temperature, upper operating limit

60 °C

Temperature compensated overload protection

Yes

HS Code

8536.49
