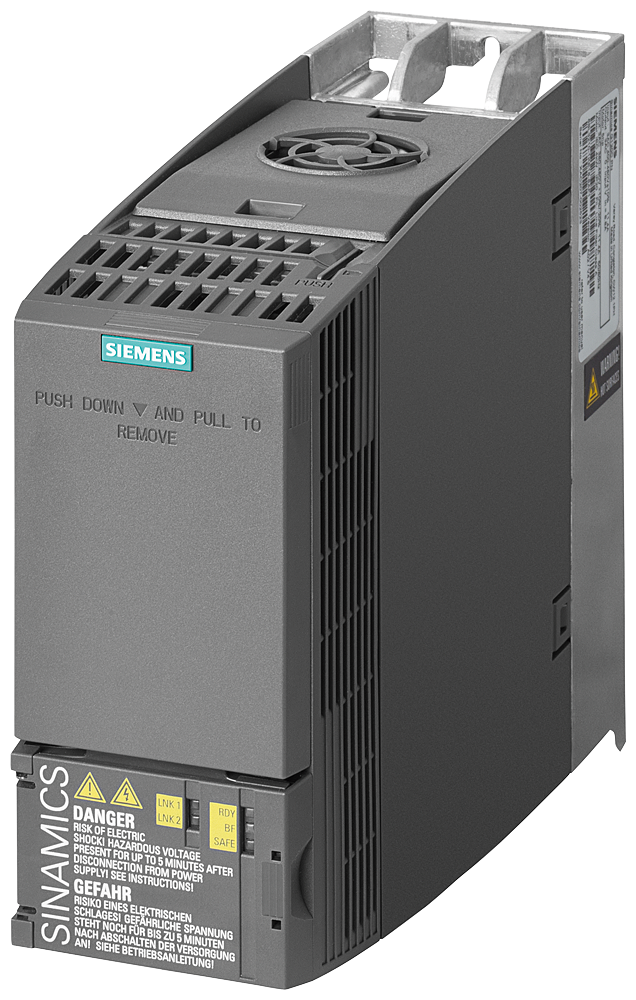

Siemens Sinamics G120C PN 3AC 400V 4,0kW with integrated filter kl
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE18-8AF1 Sinamics G120C PN 3AC 400V 4,0kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE18-8AF1
- EAN / GTIN
- 4042948663837
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 4.0 kW
- Width
- 73 mm
- Height
- 196 mm
- Depth
- 225 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 3 kW
- Max. output at quadratic load at rated output voltage
- 4 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 9 A
- Supporting protocol for BACnet
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948663837
- SAP 1000349291
- Code 81288780
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400/630 Din, Set for Install 8GK4351-4KK12
Siemens
Siemens 8UC7111-1BB10 Handle Door Coupling for 3KA50 / 3KA51 Switch
Siemens
Siemens 3LD, EMERGENCY-STOP switch, 3-P, Iu:16 A, AC-23/400V: 7,5 kW, plastic IP65, rotary switch, r/g
3LD2064-0TB53
Siemens
Siemens MCCB_3VA21_3P_55KA_ETU350_,LSI,IN=63A,IR=25A-63A,ISD=1,5-10XIR,II=12XIN,terminal Cu
3VA2163-5HN36-0AA0
Siemens
Siemens SIRIUS 3RP25 Time relay -Electronic,delay 3RP2525-1AW30
Siemens
Siemens FOUNDATION FIELD CABLE YELLOW
6XV18305HH10
Siemens

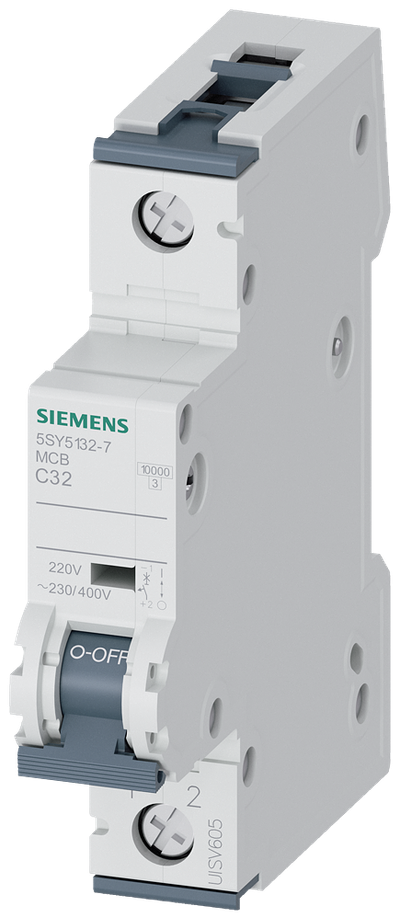

Siemens SENTRON 5SY5132-7 Miniature Circuit Breaker 1-Pole C32A 10KA
Siemens

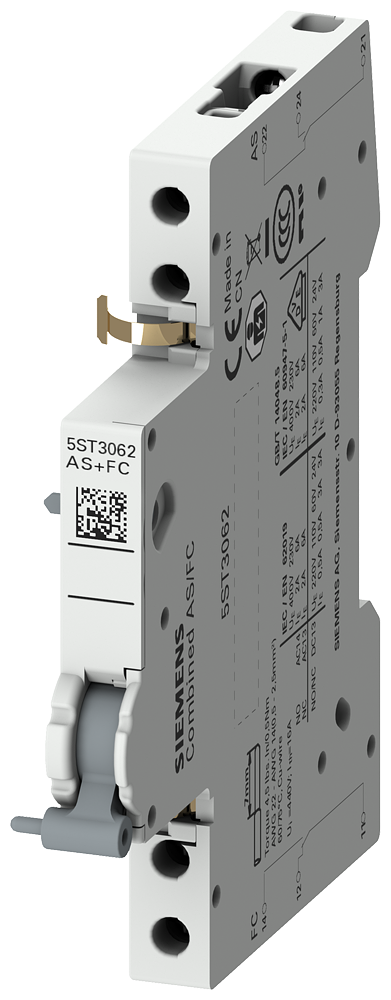

Siemens 5ST3062 KOMBI Auxiliary + Fault-Signal Contact 9 mm for 5SY/5SU1 MCBs
