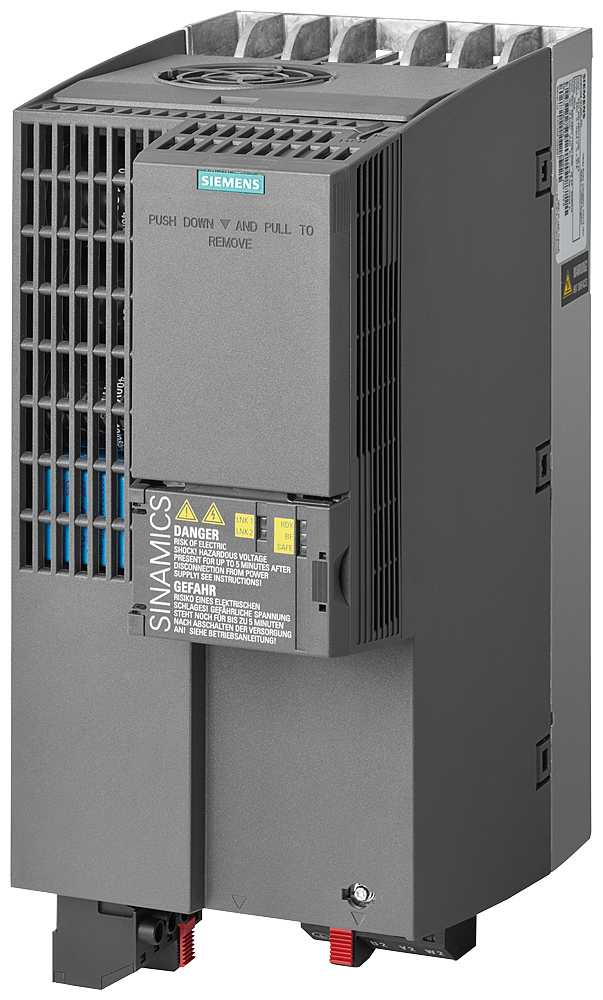

Siemens Sinamics G120C PN 3AC 400V 18,5kW without filter
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE23-8UF1 Sinamics G120C PN 3AC 400V 18,5kW without filter.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE23-8UF1
- EAN / GTIN
- 4042948664001
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 18.5 kW
- Width
- 140 mm
- Height
- 295 mm
- Depth
- 225 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 15 kW
- Max. output at quadratic load at rated output voltage
- 18.5 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 38 A
- Supporting protocol for BACnet
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948664001
- SAP 1000350796
- Code 8393753
Product Documentation
More from Siemens
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC40-0UB0
Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, C=pushbutton black,label: II, 1 NO, screw terminal, B=pushbutton black,label I, 1 NO, screw terminal, A=pushbutton red, label: O, 1 NC, screw terminal, base mounting, 1XM20 each on top and bottom, labels enclosed
3SU1853-0AD00-2AB1
Siemens
Siemens SENTRON 5SY4514-7 Miniature Circuit Breaker 1+N-Pole C0.3A 10KA
Siemens
Siemens SCALANCE XR124WG; 24 x 10/100 Mbit/s RJ45 porter 6GK5124-0BA00-3AR3
Siemens
Siemens 3TY6443-0BB4
Siemens
Siemens SENTRON 5SY4332-8FA Miniature Circuit Breaker 3-Pole D32A 10KA
Siemens
Siemens 3UF7932-0AA00-0
Siemens

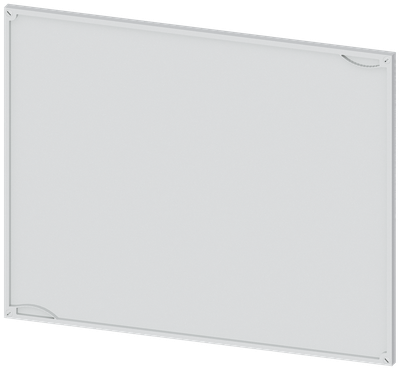

Siemens Alpha 630 Din, Blanking cover without Supports Height = 600 mm, Width = 750 mm (1 Set = 10 Units)
