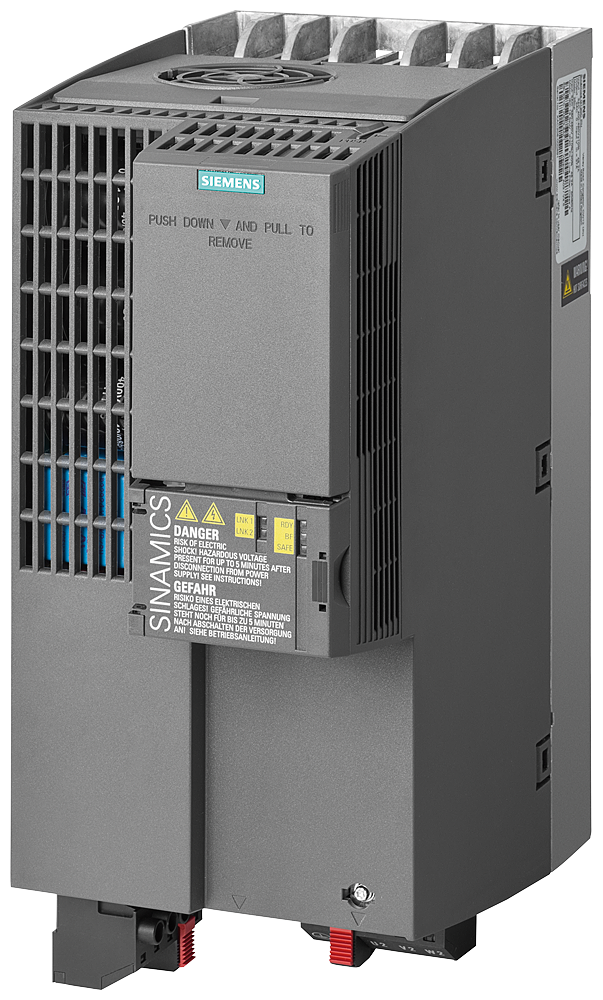

Siemens Sinamics G120C PN 3AC 400V 15kW without filter
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE23-2UF1 Sinamics G120C PN 3AC 400V 15kW without filter.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE23-2UF1
- EAN / GTIN
- 4042948663998
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 15 kW
- Width
- 140 mm
- Height
- 295 mm
- Depth
- 225 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 11 kW
- Max. output at quadratic load at rated output voltage
- 15 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 32 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948663998
- SAP 1000350795
- Code 81058480
Product Documentation
More from Siemens
Siemens
Siemens SITRANS pressure transmitter
7MF1565-3BA00-1AA1
Siemens
Siemens SIMATIC S7 automation module 6ES7231-5QA30-0XB0
Siemens
Siemens Light Set 3VA1 frontvrider
8UD1900-0KA10
Siemens
Siemens Alpha 630 Din, Cover N-Komponenter Height = 150 mm, Width = 500 mm Cut-Out 2X12 Distance unit
8GK9601-1KK21
Siemens
Siemens Sinamics G120 Control Unit CU250S-2 Integrated RS485/USS/MODBUS RTU
6SL3246-0BA22-1BA0
Siemens
Siemens SITRANS pressure transmitter 7MF1572-1EA10
Siemens
Siemens SENTRON 5SY4416-6 Miniature Circuit Breaker 4-Pole B16A 10KA
Siemens
Siemens Contactor with 2 NO kont 5TT5052-2
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6SL3210-1KE23-2UF1?
- 6SL3210-1KE23-2UF1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6SL3210-1KE23-2UF1.
- What is the HS code for 6SL3210-1KE23-2UF1?
- The customs tariff (HS) code for 6SL3210-1KE23-2UF1 is 8504.40.
- Who manufactures 6SL3210-1KE23-2UF1?
- 6SL3210-1KE23-2UF1 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 6SL3210-1KE23-2UF1?
- Yes — the 6SL3210-1KE23-2UF1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6SL3210-1KE23-2UF1?
- The minimum order quantity is 1.
- Is 6SL3210-1KE23-2UF1 available?
- Yes — 6SL3210-1KE23-2UF1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
