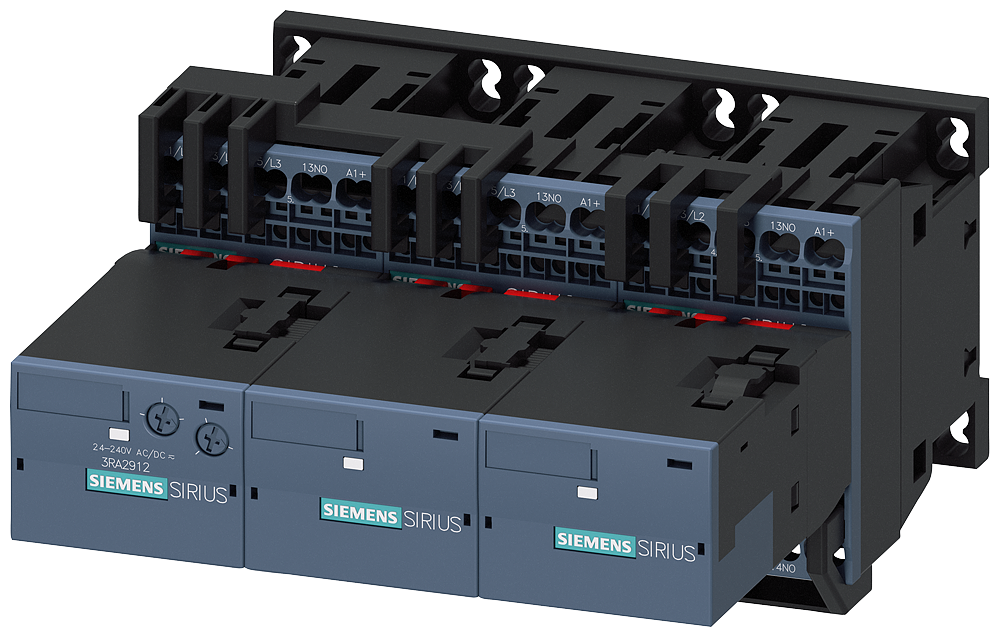

Siemens SIRIUS Contactor assembly for star-delta (wye-delta) start AC-3, 7.5 kW/400 V, 24 V DC 3-Pole, Size S00 Spring-type terminal electrical and mechanical interlock 3 NO integrated

Siemens 3RA2416-8XF31-2BB4 Star/delta-selector switch 7.5KW 24V DC, S00 Spring terminals 3NO.

Manufacturer part number (MPN)

3RA2416-8XF31-2BB4

EAN / GTIN

4011209838284

Sales unit

pcs

Product brand name

SIRIUS

Product designation

Contactor assembly for star-delta (wye-delta) start

Product type designation

3RA24

Manufacturer's article number — 1 of the supplied contactor

3RT2017-2BB41

Manufacturer's article number — 2 of the supplied contactor

3RT2017-2BB41

Manufacturer's article number — 3 of the supplied contactor

3RT2015-2BB41

Manufacturer's article number — of the supplied RS assembly kit

3RA2913-2BB2

Manufacturer's article number — of the supplied function module for wye-delta circuits

3RA2816-0EW20

Size of contactor

S00

Shock resistance at rectangular impulse — at AC

6,7 g / 5 ms, 4,2 g / 10 ms

Shock resistance at rectangular impulse — at DC

6,7 g / 5 ms, 4,2 g / 10 ms

Shock resistance with its pulse — at AC

10,5 g / 5 ms, 6,6 g / 10 ms

Shock resistance with its pulse — at DC

10,5 g / 5 ms, 6,6 g / 10 ms

Mechanical service life (operating cycles) — of contactor typical

10 000 000

Mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical

10 000 000

Installation altitude at height above sea level maximum

2 000 m

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-55 ... +80 °C

Number of poles for main current circuit

3

Number of NO contacts for main contacts

3

Number of NC contacts for main contacts

0

Operating voltage — at AC-3 rated value maximum

690 V

At AC-3 — at 400 V rated value

16 A

At AC-3 — at 500 V rated value

10.3 kW

At AC-3 — at 690 V rated value

9.2 kW

Operating frequency — at AC-3 maximum

1 000 1/h

Type of voltage of the control supply voltage

DC

Control supply voltage 1 at DC rated value

24 V

Closing power of magnet coil at DC

10 W

Holding power of magnet coil at DC

10 W

Number of NO contacts for auxiliary contacts — instantaneous contact

3

Contact reliability of auxiliary contacts

< 1 error per 100 million operating cycles

Contact rating of auxiliary contacts according to UL

A600 / Q600

For short-circuit protection of the main circuit — with type of coordination 1 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A

For short-circuit protection of the main circuit — with type of coordination 2 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 20 A

For short-circuit protection of the main circuit — for short-circuit protection of the auxiliary switch required

fuse gG: 10 A

Mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

Fastening method

screw and snap-on mounting onto 35 mm DIN rail

Installation/ mounting/ dimensions — height

84 mm

Installation/ mounting/ dimensions — width

135 mm

Installation/ mounting/ dimensions — depth

145 mm

With side-by-side mounting — forwards

6 mm

With side-by-side mounting — upwards

6 mm

With side-by-side mounting — downwards

6 mm

With side-by-side mounting — at the side

6 mm

For grounded parts — forwards

6 mm

For grounded parts — upwards

6 mm

For grounded parts — at the side

6 mm

For grounded parts — downwards

6 mm

For live parts — forwards

6 mm

For live parts — upwards

6 mm

For live parts — downwards

6 mm

For live parts — at the side

6 mm

Type of electrical connection — for main current circuit

spring-loaded terminals

Type of electrical connection — for auxiliary and control circuit

spring-loaded terminals

Type of electrical connection — at contactor for auxiliary contacts

Spring-type terminals

Type of electrical connection — of magnet coil

Spring-loaded terminal

Type of connectable conductor cross-sections for main contacts — solid

2x (0.5 ... 4 mm²)

Type of connectable conductor cross-sections for main contacts — solid or stranded

2x (0,5 ... 4 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded with core end processing

2x (0.5 ... 2.5 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded without core end processing

2x (0.5 ... 2.5 mm²)

For auxiliary contacts — solid or stranded

2x (0.5 ... 2.5 mm²)

For auxiliary contacts — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

For auxiliary contacts — finely stranded without core end processing

2x (0.5 ... 1.5 mm²)

For auxiliary contacts — for AWG cables for auxiliary contacts

2x (20 ... 14)

Protection class IP on the front according to IEC 60529

IP20

Touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Protocol is supported AS-Interface protocol

No

Product function control circuit interface with IO link

No

Width

135 mm

Function

Star-delta contactor

Height

84 mm

Depth

145 mm

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-3, 400 V

16 A

Degree of protection (IP)

IP20

Type of electrical connection of main circuit

Spring clamp connection

Voltage type for actuating

DC

Country of origin

Germany

HS Code

8536.49

• EAN 4011209838284
• SAP 1000314384
• Code 8801043
